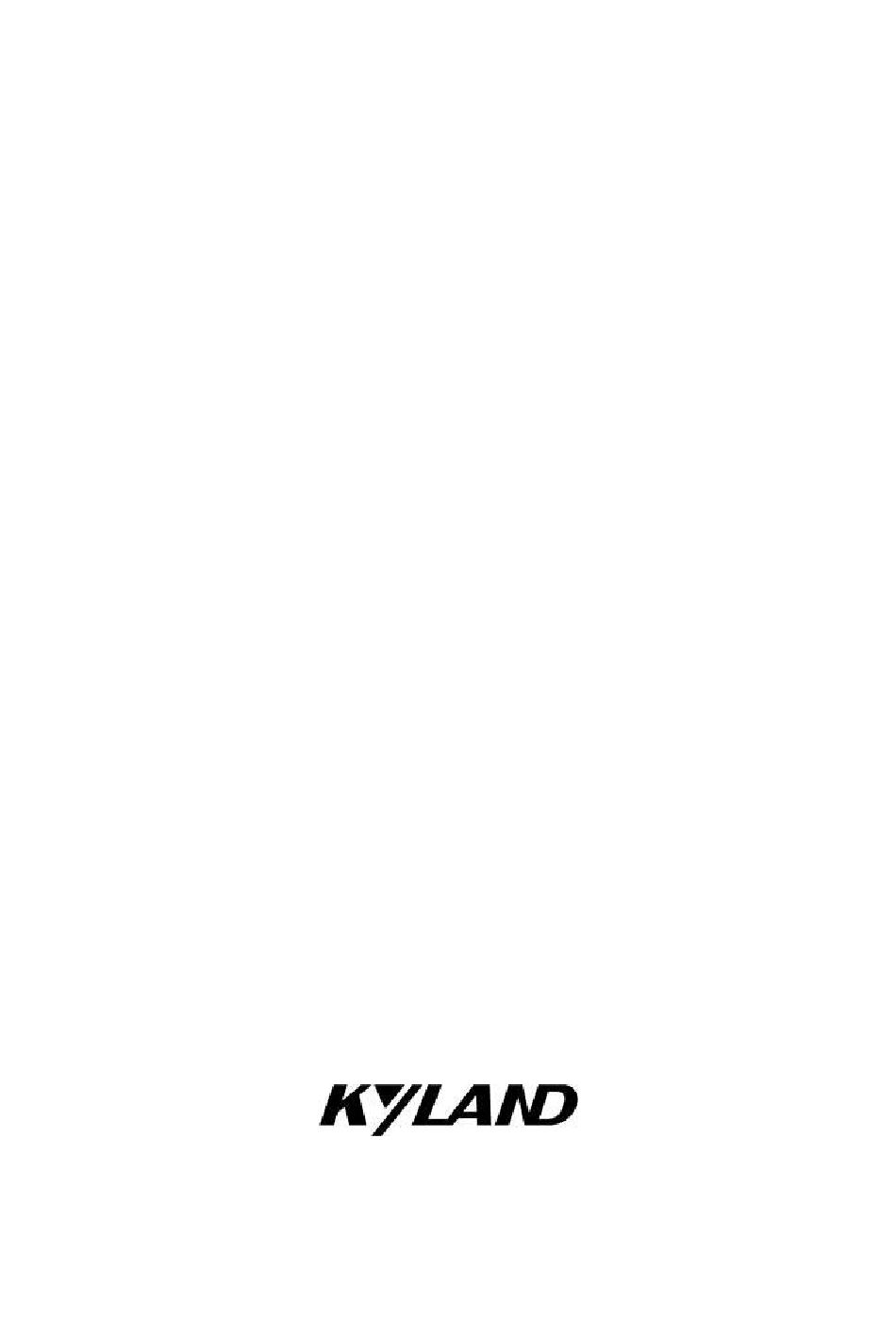

- Page 1 KPS3101 Hardware Installation Manual Publication Data: June. 2020 Version: V1.0...
- Page 2 All rights reserved. No part of this documentation may be excerpted, reproduced, translated, annotated or duplicated, in any form or by any means without the prior written permission of KYLAND Corporation. Copyright © 2020 Kyland Technology Co., Ltd.
- Page 3 Before using the device, read this manual carefully for personal and equipment safety. Please keep the manual for further reference. Kyland is not liable to any personal or equipment damage caused by violation of this notice.
- Page 4 In the following cases, please immediately shut down your power supply and contact your Kyland representative: Water gets into the equipment. Equipment damage or shell damage.
- Page 5 est designe non dangereux. La substitution de composants peut rendre ce materiel inacceptable pour les emplacements de Classe I, Division 2.
-
Page 6: Table Of Contents
Contents 1 Product Overview .......................2 2 tructure and Interface......................2 2.1 Front Panel ........................3 2.2 Top Panel ........................4 3 Mounting ..........................5 3.1 Dimension Drawing ......................5 3.2 Mounting Modes and Steps ..................5 3.2.1 DIN-Rail Mounting (Fixed in inside of Enclosure or Equipment only) ....6 3.2.2 DIN-Rail Dismounting ....................6 3.2.3 Mounting clearance ....................7 4 Connection .........................8... -
Page 7: Product Overview
PIS, power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation and so on. It supports serial server model selection. The KPS3101 supports dual power supply, and can enable or disable the RS-485 terminal matching resistor by setting the DIP switch. -
Page 8: Front Panel
tructure and Interface 2.1 Front Panel Figure 1 Front Panel Table 2 Description of the Front Panel Identifier Description PWR1 Power 1 LED PWR2 Power 2 LED Run LED 10/100Base-T(X) Ethernet port connection status LED (green) 10/100Base-T(X) Ethernet port speed LED (yellow) 10/100Base-T(X) Ethernet port... -
Page 9: Top Panel
tructure and Interface RS-232/RS-422/RS-485 Serial interface S1-T Serial interface to send data indicator (green) S1-R Serial interface to receive data indicator (green) 2.2 Top Panel Grounding screw Power terminal block DIP switch Reset button Figure 2 Top Panel... -
Page 10: Mounting
Mounting 3 Mounting 3.1 Dimension Drawing Figure 3 KPS3101 Dimensions (unit: mm) Caution: As part of the heat dissipation system, the device housing becomes hot during operation. Please use caution when coming in contact and avoid covering the device housing when the device is running. -
Page 11: Din-Rail Mounting (Fixed In Inside Of Enclosure Or Equipment Only)
Mounting 3) Grounding resistance: <5. 4) No direct sunlight, distant from heat source and areas with strong electromagnetic interference. 5) The installation environment meets the ATEX / IECEx Certified IP40 requirements. No direct touch, to avoid personal damage. 3.2.1 DIN-Rail Mounting (Fixed in inside of Enclosure or Equipment only) Step 1: Select the mounting position for the device and guarantee adequate space and heat dissipation (dimensions: 30mm×115mm×68mm). -
Page 12: Mounting Clearance
Mounting Figure 5 DIN-Rail Dismounting 3.2.3 Mounting clearance It is recommended that there should be enough clearance to install this product: Top and bottom side: 30mm Sides:20mm Front:30mm... -
Page 13: Connection
Connection 4 Connection 4.1 10/100Base-T(X) Ethernet Port 10/100Base-T(X) Ethernet port is equipped with RJ45 connector. The port is self-adaptive. It can automatically configure itself to work in 10M or 100M state, full or half duplex mode. The port can also adapt to MDI or MDI-X connection automatically. You can connect the port to a terminal or network device with a straight-through or cross-over cable. -
Page 14: Rs-232/Rs-422/Rs-485 Interface
Connection Figure 7 Connection Using Straight-through/Cross-over Cable Note： The color of the cable for RJ45 connector meets the 568B standard: 1-orange and white, 2-orange, 3-green and white, 4-blue, 5-blue and white, 6-green, 7-brown and white, and 8-brown. 4.2 RS-232/RS-422/RS-485 interface RS-232 / RS-422 / RS-485 interface using standard DB9 male interface, RS-232 interface to support RTS / CTS. -
Page 15: Grounding
Connection 4.3 Grounding Grounding protects the device from lightning and interference. Therefore, you must ground the device properly. You need to ground the device before it is powered on and disconnect the grounding cable after the device is powered off. The device provides a grounding screw(see Figure 2) on the rear panel for chassis grounding. - Page 16 Connection Figure 8 4-Pin 5.08mm-Spacing Plug-in Terminal Block The following table lists the pin definitions of the 5-pin 5.08mm-spacing plug-in terminal block. Table 5 Pin Definitions of 4-Pin 5.08mm-Spacing Plug-in Terminal Block Signal DC Definition PWR1： - PWR1： + PWR2： - PWR2：...
-
Page 17: Dip Switch
Connection Waring: temperature of the cable used on this device is 85℃. Warning: Do not touch any exposed conducting wire, terminal, or component with a voltage warning sign, because it may cause damage to humans. Do not remove any part or plug in or out any connector when the device is powered on. 4.5 DIP switch The top panel of the device has two DIP switches. -
Page 18: Reset
Reset 5 Reset The device provides a Reset button on the top panel. The button can be used to restore factory default settings. You can restore factory default settings (including the IP address) by pressing and holding the button for five seconds. The default IP address is E1: 192.168.0.249. -
Page 19: Leds
LEDs 6 LEDs Table 8 Front Panel LEDs State Description Power 1 is connected and operates properly. Power 1 LED-PWR1 Power 1 is not connected or operates abnormally. Power 2 is connected and operates properly. Power 2 LED-PWR2 Power 2 is not connected or operates abnormally. The CPU is starting up. -
Page 20: Access
Access 7 Access You can access the device in any of the following ways: 7.1 Access through Telnet Step 1: Connect the network port of a PC to the Ethernet port of the device with a network cable. Step 2: On the Windows desktop, click Start and Run. The Run dialog box is displayed. Enter "telnet IP address". - Page 21 Access Note： IE8.0 or a later version is recommended. For details about how to access the device and other operations, refer to the Web operation manual in the delivered CD.
-
Page 22: Basic Features And Specifications
Basic Features and Specifications 8 Basic Features and Specifications Power Requirements Power Identifier Rated Voltage Range Maximum Voltage Range 24VDC 12-48VDC Terminal block 4-pin 5.08mm-spacing plug-in terminal block Rated Power Consumption Rated power consumption 1.8W Physical Characteristics Housing Metal, fanless Protection class IP40(Exclude Terminal Block) Installation... - Page 23 FAX: +86-10-88796678 Website: http://www.kyland.com Email: support@kyland.com Address: Building No.2, Shixing Avenue 30# shijingshan District, Beijing, China For more information about KYLAND products, please visit our website: http://www.kyland.com...
