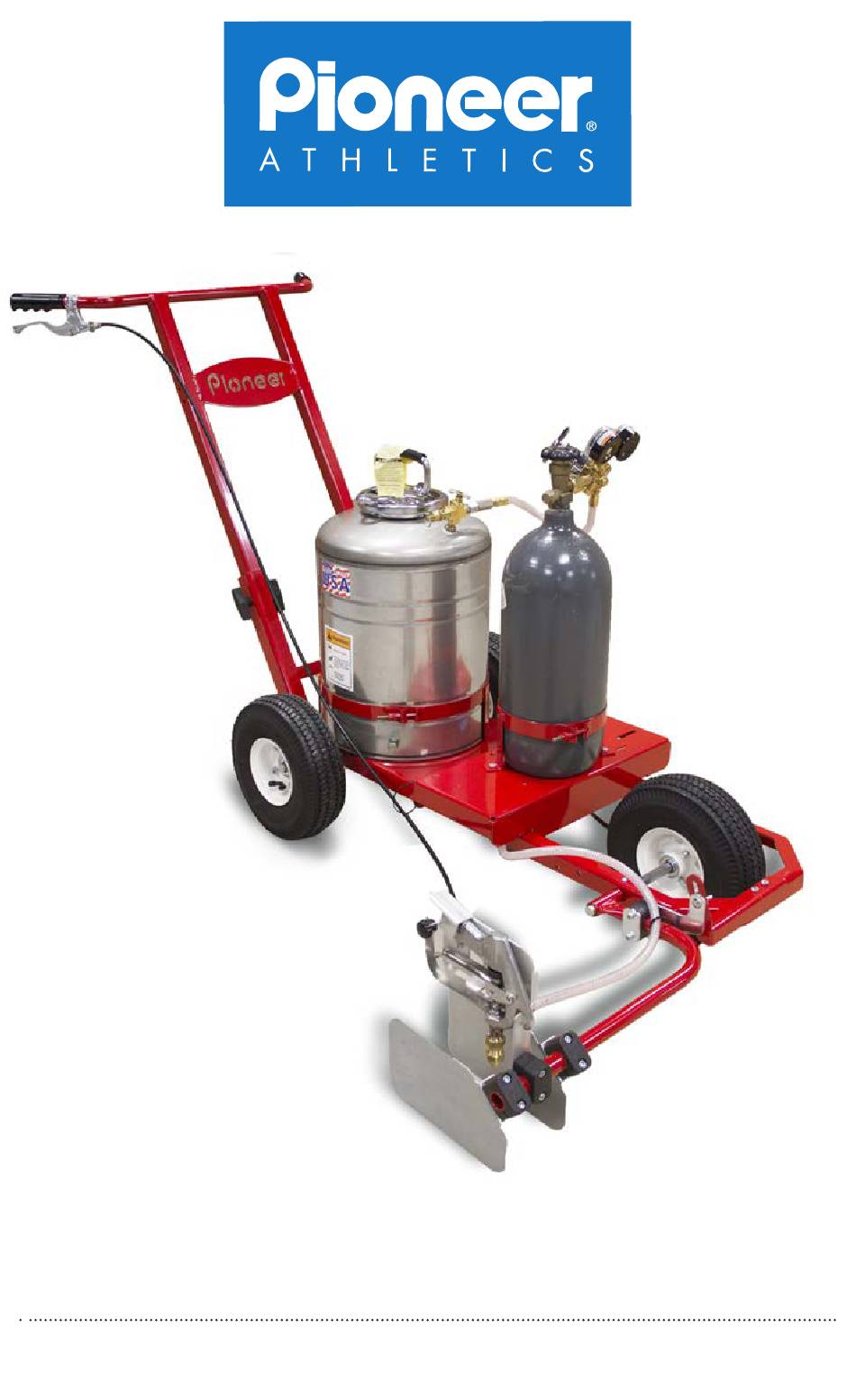

- Page 1 BRITE STRIPER 1400 ® INSTRUCTION MANUAL AND PARTS LISTING 800-877-1500 | www.pioneerathletics.com...
- Page 2 Tune-Up Kit for the Brite Striper ® 1400 that includes: to find the following helpful resources: 2 Nozzle Tips Pioneer Athletics 2 Nozzle Screens Blog discussing the tips, tricks, technology, 2 Nozzle Caps research, tradeshows, and updates in the...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Brite Striper 1400 ® Assembly Instructions Removing from Shipping Carton ............2 Handle Assembly ................2 Tools Necessary for Assembly ............2 Adjustable Spray Box ..............2-3 Attaching CO2 Cylinder ..............3 Operation & Care Before Starting ................... 4 Care and Operation of Paint Tank Unit .......... -
Page 4: Assembly Instructions
ASSEMBLY If you have any questions concerning assembly or operation, please call our CUSTOMER SERVICE DEPARTMENT at: 800.877.1500 Assembly Instructions for Brite Striper 1400: ® Remove Brite Striper 1400 ® – two people necessary to lift 1. Remove handle bar 2. -
Page 5: Attaching Co2 Cylinder
ASSEMBLY Adjustable Spray Box: Slide adjustable spray box bar on front axle. align holes on spray box support bracket with holes on the front of the frame. Insert two hex head bolts from top of spray box support bracket and attach self- locking nuts from bottom of frame and tighten completely. -
Page 6: Before Starting
BEFORE STARTING Before starting your Brite Striper 1400, be sure to check the enclosed ® operating and maintenance instructions. 1. Carefully read and follow instructions for starting and maintaining the machine. 2. Check all hose connections and fittings making sure they are tight 3. -
Page 7: Care And Operation Of Paint Tank Unit
CARE AND OPERATION Care and Operation of Paint Tank Unit: 1. Remove pump assembly by raising locking lever to vertical position, and turning counter-clockwise until ends of locking lever reach slots in locking ring; lift out. 2. Mix paint (in pail - not in tank) and strain through cloth or fine sieve. Paint strainers packaged 25 per case are available. -
Page 8: Paint Tank Label
PAINT TANK LABEL Paint Tank Label: WARNING: IMPROPER USE OR FAILURE TO FOLLOW INSTRUCTIONS CAN turn pump counterclockwise until pump can be removed from tank. RESULT IN EXPLOSIVE FAILURE WITH MAJOR INJURIES. FOR SAFE USE Prepare spray solution following directions on chemical container OF THIS PRODUCT—YOU MUST READ AND FOLLOW ALL INSTRUCTIONS label. -
Page 9: Operation Of Machine
OPERATION OF MACHINE 1. Check to make certain that brass bleed-off valve (located on cross-fitting) is in closed position so air will not escape. 2. Test run the machine with water to see how it operates. You may wish to practice using paint in an off-area before starting your job. 3. -
Page 10: Trouble Shooting & Parts Parts List & Parts Explosion Drawing
PARTS LIST Brite Striper Model 1400: ® KEY# PART# DESCRIPTION KEY# PART# DESCRIPTION 1414 1680 14” Airline Hose Shut Off Gun Kit 1532 21 A 1685 Check Valve Gun Bracket 0125 21 B 0028T Brass Bleed-Off Valve Spray Gun 0090 21 C 0020 Cross Fitting... - Page 11 PARTS LIST Brite Striper Model 1400: ® Obscured by Rear Wheel...
-
Page 12: Striping Tips
STRIPING TIPS 1. When striping, always have the machine in motion before opening the spray valve, thus eliminating a heavy “blob” of paint at the beginning. 2. If striping on an asphalt or concrete surface you may have a build- up of paint on the edges of your line. -
Page 13: Clean-Up Of The Paint Tank Unit
MAINTENANCE Clean-Up of the Paint Tank Unit: 1. Discharge remaining paint through drain hose (supplied with unit) into clean container. Cap container tightly for next use 2. Shut off CO2 Cylinder. 3. Release pressure in the paint tank with brass bleed-off valve. WARNING: NEVER USE ANY TOOLS TO REMOVE PUMP IF THERE IS PRESSURE IN THE TANK. -
Page 14: Clean-Up Tips
MAINTENANCE AND STORAGE Clean-Up Tips: All parts of your Pioneer Brite Striper should be cleaned immediately ® after each use. We recommend Pioneer P.H.D. Ultra-Friendly Cleaner. A clean,lint-free rag should be used to wipe dry the inside of the tank. A final step should then be to remove the nozzle cap and clean the nozzle tip and screen. -
Page 15: Troubleshooting
TROUBLESHOOTING Athletic Field Marking Performance: STRIPER DOES NOT STRIPE A FULL LINE 1. Was paint strained? 2. Check paint level. 3. Check nozzle screen for clogs. Clean as needed. 4. Check nozzle tip for proper alignment — horizontal. 5. Check operating pressure 38-40 PSI. 6. - Page 16 TROUBLESHOOTING Paint Leaks: (continued) PAINT LINE HOSE LEAKS PAINT Check paint line hose fitting — tighten. NOZZLE ASSEMBLY LEAKS Tighten nozzle assembly. SHUT-OFF VALVE LEAKS PAINT Check that shut-off valve is tightened. Check control cable adjustment. Air Leaks: PUMP ASSEMBLY LEAKS AIR 1.
-
Page 17: Customer Service
CUSTOMER SERVICE Call our Customer Service Reps From 8:00am - 4:45pm (EST) 1-800-877-1500 Call us with any questions you may have concerning the care, assembly, operation, or maintenance of this product. Before you call be sure that unsatisfactory operation is not due to inadequate care or cleaning, abuse, or neglect. -
Page 18: Limited Warranty Information
LIMITED WARRANTY For a period of three years from date of purchase, PIONEER MANUFAC- TURING COMPANY will replace for the original PURCHASERS, any part or parts* of the line Striper (a five (5) year limited warranty against rust-out on stainless steel tanks), found upon examination by a PIONEER FACTO- RY-trained representative, to be defective in material or workmanship or both;... - Page 19 North America because Brite Stripe delivers an MVP performance every time. Brite Stripe is just another of many examples that to Pioneer Athletics, Ingredients Matter. GameDay Ultra-Friendly ® When it’s All on the Line.
- Page 20 Visit our website or call us for more information on the following athletic field and facility products: ULTRA-FRIENDLY ZERO-VOC PAINTS | SYNTHETIC TURF FIELD MARKING PAINTS AEROSOL AND BULK FIELD MARKING PAINTS | FIELD MAINTENANCE FACILITY MAINTENANCE | STENCILS, MATS, WALLPADS AND WINDSCREENS FIELD LAYOUT GUIDES | SPORTS ACCESSORIES | FIELD MARKING EQUIPMENT Become a Facebook Fan! Phone: 800-877-1500...
