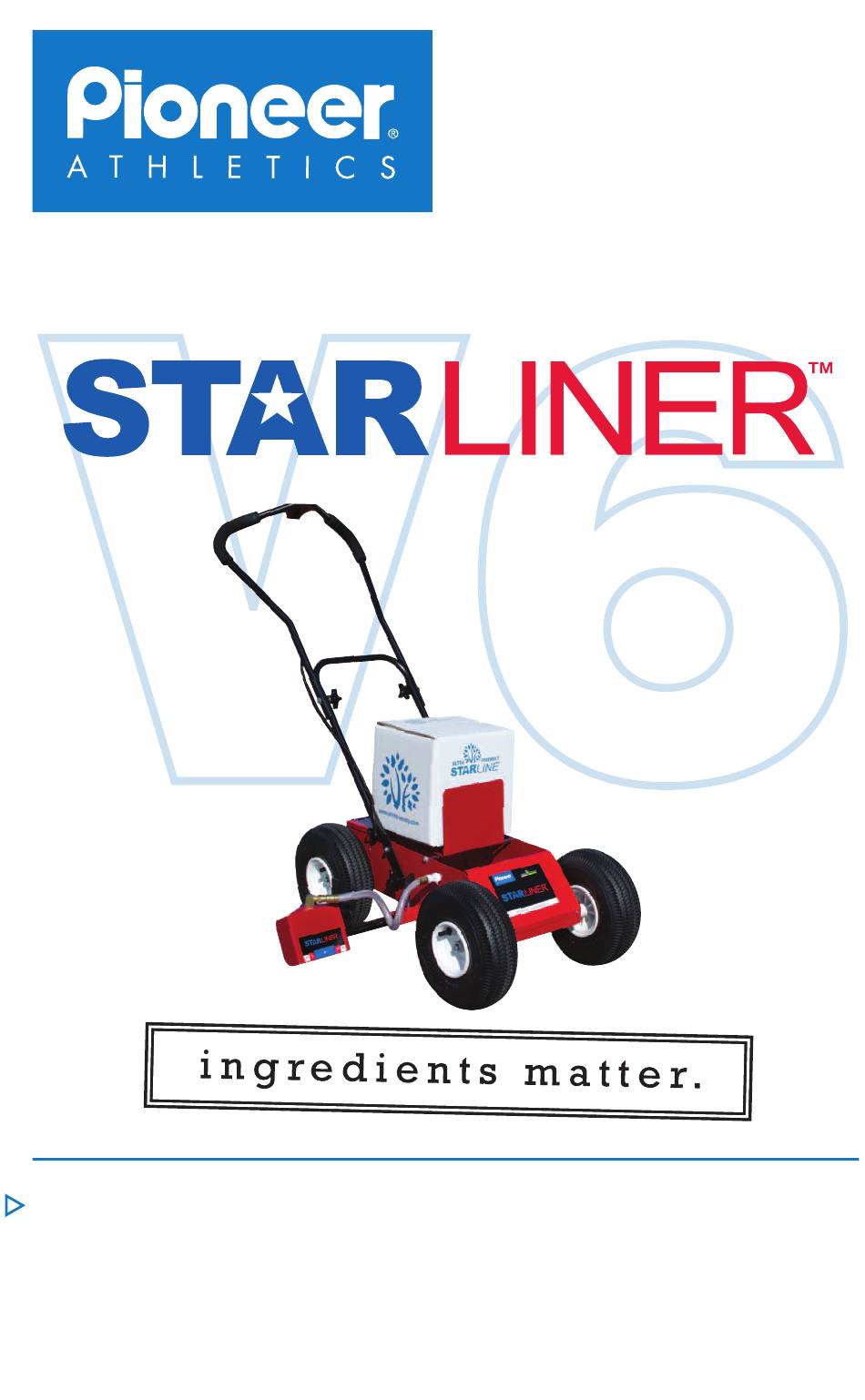

- Page 1 Featuring Pioneer’s Exclusive “Plug & Stripe” Technology ® InstructIon Manual & Parts lIstIng starlIner v6 800-877-1500 www.pioneerathletics.com...
- Page 2 For rePaIrs IncluDIng WarrantY rePaIrs: Call 800-877-1500 for repair cost estimates, and full service information. INCLUDE RETURN AUTHORIZATION CODE NUMBER BEFORE SENDING YOUR UNIT. senD Your unIt WItH FreIgHt PrePaID to: PIoneer atHletIcs 4529 Industrial Parkway cleveland, ohio 44135...
-
Page 3: Table Of Contents
table oF contents tHe starlIner ™ Before You Use Your Striper Charging and Battery Operations oPeratIon & care Striping Cleaning Striping Tips How to Store IDentIFYIng ProbleMs & Parts Parts List & Parts Explosion Drawings Trouble Shooting the StarLiner 9-10 Limited Warranty Upon receipt of the StarLiner, please immediately remove and inspect the striper for any damage and/or missing parts. -
Page 4: Before You Use Your Striper
congratulatIons on tHe PurcHase oF Your neW starlIner. INSIDE THE BOx, YOU WILL FIND Envelope Containing: • StarLiner Electric Striping Machine • Clean-out Hose • Charger • Striping Tips • Side Spray Box with Hose • Paint Connector Plug • Star P.H.D. Ultra-Friendly Cleaner •... - Page 5 Handle setup Loosen the wing nuts located at mid-handle. Remove the lower wing nuts and bolts from StarLiner frame. Straighten the handle and tighten the mid-handle wing nuts. Align the lower bolt holes on the handle and frame. Reattach the bolts and wing nuts. setup and operation of the side spray box Located on the side of the StarLiner is a winged bolt.
- Page 6 Paint line connection Connect the spray box paint line by pushing the white quick-connect onto the male connector on the side of the StarLiner. You will hear an audible click when a positive connection is made. Be sure the paint hose does not interfere with or become pinched by the tire or any moving parts.
- Page 7 You are noW reaDY to test tHe oPeratIon oF Your starlIner. We recommend trying the StarLiner with water before using paint Connect the clean-out hose to the quick connect on the StarLiner. You will hear an audible click when the hose is connected properly. After connecting, place the clean-out hose in a bottle filled with water.
-
Page 8: Parts List & Parts Explosion Drawings
Parts lIst: ITEM PART DESCRIPTION StarLiner V6 1000 Switch(Handlebar) 1003 Wheel Circuit Board 1005 Battery 1021 Battery Cable with Fuse 1024 3 Amp Fuse 1513 Elbow - Male x Female 1011 Spray Box Assembly 1008 Nozzle Check Body 0114P Nozzle Cap... - Page 9 Parts lIst: StarLiner V6...
-
Page 10: Cleaning
cleanout oF tHe starlIner: The StarLiner is shipped with a clean-out hose and a gallon of Star P.H.D. cleaner. Once you are finished striping, it is recommended that you flush the StarLiner free of paint. Failure to do so may cause damage to your StarLiner. IMPORTANT: DO NOT ExPOSE THE COMPONENT BOx TO WATER. -
Page 11: Striping Tips
striping tips • When striping, it is recommended to have the StarLiner in motion before turning it on. This will eliminate the possibility of having a large “blob” of paint on the grass at the beginning of your line. • Always test in an off area to be sure you are familiar with all functions of the StarLiner. -
Page 12: Trouble Shooting The Starliner
troublesHootIng: The Spray pattern is too If the StarLiner will not start: narrow or wide: • Make sure the battery is • Adjust the nozzle assembly charged. up or down. • Check the fuse. • Re-shake the paint box to be sure •... - Page 13 Fuse THERE ARE SEVERAL WAYS THE FUSE CAN BLOW, INCLUDING: • The wires are attached in reverse. This means that the fuse wire is attached to the black terminal on the battery. • An overheated or seized pump. • Damaged or cut wires touching the positive to the negative. •...
-
Page 14: Limited Warranty
lIMIteD WarrantY For a period of six months from date of purchase, PIONEER MANUFACTURING COMPANY will replace for the original PURCHASERS, any part or parts* of the StarLiner, found upon examination by a PIONEER FACTORY-trained representative, to be defective in material or workmanship or both; this is the exclusive remedy. - Page 15 atHletIc FIelD MarkIng PaInt Featuring Pioneer’s Exclusive “Plug & Stripe” Technology Features • Ready-to-use paint comes in a self- sealing container. Just “Plug” paint container into paint line and “Stripe” • Brilliant white lines featuring Pioneer’s Halogen® 2000 Optical Brighteners coverage (undiluted): •...
