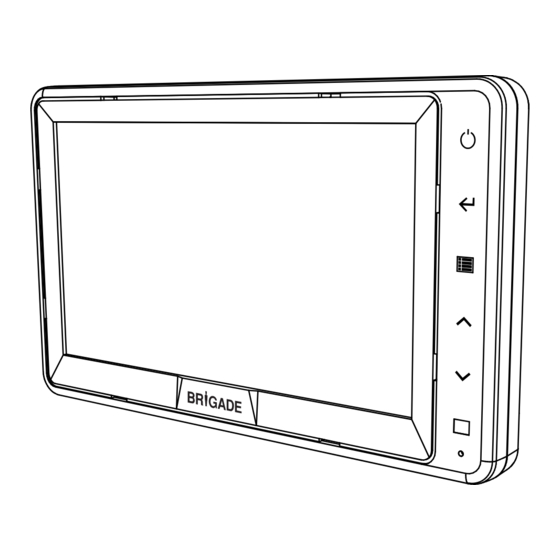

VBV-770HFM vehicle CCTV monitor
Quick installation guide
Guide d'installation rapide
Kurzanleitung
Guida d'installazione rapida
Guía de Instalación Rápida
Snelle installatie handleiding
Guia de instalação rápida
Руководство по быстрой установке
Hızlı Montaj Klavuzu
Hizli Başlangiç Kilavuzu
IG PN: 7206
VBV-770HFM IG
Advertisement
Related Manuals for Brigade AHD VBV-770HFM
Summary of Contents for Brigade AHD VBV-770HFM
- Page 1 VBV-770HFM vehicle CCTV monitor Quick installation guide Guide d’installation rapide Kurzanleitung Guida d’installazione rapida Guía de Instalación Rápida Snelle installatie handleiding Guia de instalação rápida Руководство по быстрой установке Hızlı Montaj Klavuzu Hizli Başlangiç Kilavuzu IG PN: 7206 VBV-770HFM IG...
-
Page 2: Monitor Installation
Contents Monitor installation Contenu/Inhalt/Contenuto/Contenido/inhoud/Conteúdo/Содержание/İçerik Surveiller l’installation/Monitor-Einbau/Installazione del monitor/ /zawartość Instalación del monitor/Monitor installatie/Instalação do monitor/ Расположение камеры/Monitör Montajı/Instalacja monitora VBV-770HFM-M VBV-770M-SS BMM-015 VBV-7XXHFM-CA (5 Amps) - Page 3 Connections Controls Connexions/Anschlüsse/Connessioni/Conexiones/Aansluitingen/Conexão/ Contrôles/Bedienung/Controlli/Controles/Controles/Controles/контроля/ Сигнал скорости/Bağlantılar/Podłączenia Kumandalar/Sterowanie Fuse Rating 5 Amps =OK / Remote control receiver Récepteur de la télécommande Camera Trigger White Blue Green Brown Empfänger für Fernbedienung Déclencher Blanc Bleu Vert Brun Caméra CAM1 Ricevitore per telecomando Trigger Weiß...
-
Page 4: Operation
Operation Operation Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Użytkowanie Użytkowanie Layer1 Layer2 Layer3 Layer4 AUDIO Source Camera1 Button lock Enable Width Scale Ratio Height Scale Ratio Marker setting Bouton de verrouillage/Tastensperre/Blocco dei Pulsanti/Bloqueo de botones/ X Position Type Y Position Type Knopvergrendeling/Bloqueio dos botões/кнопка блокировки/Düğme kilidi/ Mise en marqueur/Einstellung der Markierungen/Impostazione dei marcatori/ Przycisk blokady Ajuste de los marcadores/Marker instelling/Definir os marcadores/установкой... - Page 5 Operation S pecifications Opération/Betrieb/Operazione/Operación/Werking/Operação/операция/ Çalıştırma/ Spécifications/Spezifikationen/Specifiche/Especificaciones/Specificaties/ Użytkowanie Especificações/Спецификация/Özellikler/Specyfikacja Split setting Camera4 ENGLISH FRANÇAIS Mise en diviser/Split-Einstellung/Impostazione Divisione/Ajuste de la Division/Split Moniteur Camera4 VBV-770HFM Monitor VBV-770HFM instelling/Definir Divisão/сплит настройки/podział ustawienie/bölünmüş ayarı Système TV AHD / NTSC / PAL TV system AHD / NTSC / PAL Image 7.0"...
- Page 6 Especificações/Спецификация/Specyfikacja/Özellikler No liability arising out of the use or failure of the realizar uma manobra. Nenhuma responsabilidade product can in any way be attached to Brigade or to decorrente do uso ou falha do produto pode de PORTUGUÊS the distributor.
