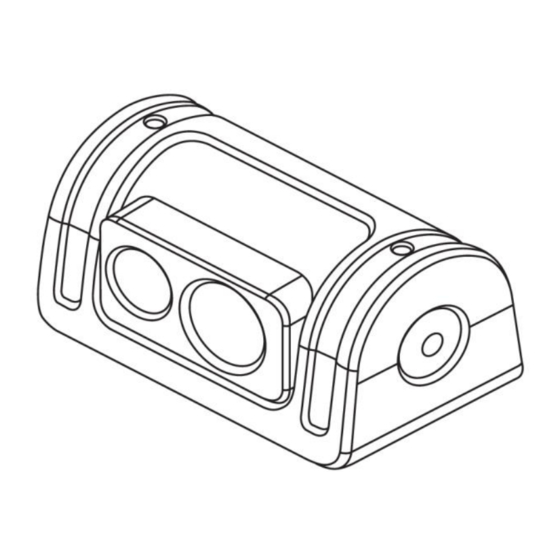

  • Page 1 IP Cameras IP-1XXXC Operational Guide Please refer to www.brigade-electronics.com for the latest version of this manual IP Camera Operational Guide (6049A)
  • Page 2: Table Of Contents

    Table of Contents 1 Introduction to IP Camera Technology 1.1 Features 1.2 IP Camera Kits & Accessories IP-1XXXC 1.3 Optional Ancillaries Extension Cables MDR 500 Series MDR 600 Series Power Over Network Switch Power and Ethernet Cable 2 Hardware Installation 2.1 Multiple IP Cameras to MDR Setup 2.2 Single IP Camera to MDR Setup 2.3 Maximum IP Camera Solution...
  • Page 3: Introduction To Ip Camera Technology

    Brigade IP Cameras such as IP-1000C, IP-1100C and IP-1200C utilise a proprietary MDR5/MDR6 protocol that is shared with Brigade MDR 500 and 600 Series products. MDR 500 and 600 Series products have full access to these IP cameras’ settings (such as resolution, image quality, recording setup) which can be transmitted from the MDR 500/600 to the IP Camera.
  • Page 4: Optional Ancillaries

    Optional Ancillaries Extension Cables • IP-L6XX: IP Camera Extension Cable – X meter (“XX” in model name refers to cable length) MDR 500 Series MDR 500 Series 4 Channel Control Unit with 500 GB / 1 TB / 2 TB MDR 500 Series 8 Channel Control Unit with 1 TB / 2 TB HDD, HDD, GPS, 4G, Wi-Fi &...
  • Page 5: Hardware Installation

    Hardware Installation Warning • The IP Camera must be powered with a 12V regulated power supply. Brigade cannot be held responsible for any damage caused due to negligence or incorrect usage. Multiple IP Cameras to MDR Setup Note: The following setup is for the MDR-500 Series only; the IP cameras can be directly connected to the MDR-600 Series.
  • Page 6: Single Ip Camera To Mdr Setup

    Single IP Camera to MDR Setup Note: The following setup is for the MDR-500 Series only; the IP camera can be directly connected to the MDR-600 Series. Figure 2 - Single IP Camera to MDR Connection Diagram...
  • Page 7: Maximum Ip Camera Solution

    Maximum IP Camera Solution Note: This solution is only available for the MDR-508XX-XXXX. Figure 3 - Maximum IP Cameras to MDR-508XX-XXXX Connection Diagram...
  • Page 8: Mdr On-Screen Display (Osd)

    MDR On-Screen Display (OSD) This chapter describes the configuration of the MDR. Brigade’s MDR products display a single, quad, or 9-split live view. Change this to 9-split by right clicking the mouse and selecting the option from the bottom banner. See Figure 4 and Figure 5.
  • Page 9: Fast Setup (Mdr-500 Only)

    The channel will display “VIDEO LOSS”. Fast Setup (MDR-500 Only) Brigade recommends the use of Fast Setup for initial installation, so the camera IP addresses are refreshed and automatically allocated to certain channels. Click the Fast Setup button on the IPC setup page to start the search for currently connected IP cameras.
  • Page 10: Advanced Setup

    IPC Setup page and click the Save button on the right bottom corner to save all channel settings. Advanced Setup Note: If using a non-Brigade IP camera, the IP address must within 10.100.100.XXX range. This setup process is recommended for non-MDR5/MDR6 protocol IP cameras.
  • Page 11: Recording Setup

    Save before exiting this screen. For sub-stream settings please refer to the MDR Installation and Operational Guide accessible at the Brigade Electronics website (www.brigade-electronics.com/product-support). Figure 15 - VBR vs CBR IPC Upgrade It is possible to upgrade the IP camera firmware via the MDR.
  • Page 12: Appendices

    This test can only be performed when the IP camera is connected to an MDR 500 Series product. PON Switch status LEDs can help with the diagnosis procedure. Activate the Brigade IP camera and verify a live view is displayed on a monitor from the MDR. If the IP camera has been properly set up, it will take approximately 15 – 20 seconds to display.
  • Page 13: Troubleshooting Or Faq

    IP camera signal, or the Username and/or Password is incorrect for the IP camera, so the MDR failed to authenticate it. If you are using a Brigade IP camera, please refer to Chapters 3.1 or 3.2 to fix the issue. If you are using a non-Brigade IP camera, please refer to Chapter 3.3 to configure your IP camera.
  • Page 14: Specifications

    Compatible with MDR 500 Series - Fast setup feature available to automatically assign IP address for IP cameras. Web browser via Ethernet connection. Microphone Yes, integrated Type of Connector Brigade IPC type female connector (6-pin) Back Light Compensation Automatic White Balance Technical Specifications Operating Voltage 12 Vdc ± 2Vdc...
  • Page 15: Ip-1200C

    Compatible with MDR 500 Series - Fast setup feature available to automatically assign IP address for IP cameras. Web browser via Ethernet connection. Microphone Yes, integrated Type of Connector Brigade IPC type female connector (6-pin) Back Light Compensation Automatic White Balance Technical Specifications Operating Voltage 12 Vdc ± 2Vdc...
  • Page 16 26/06/2023 11:18:00 IP Camera Operational Guide - v1.0 - EN (6049A).docx IP-1XXXC...
