- Page 1 MARQUE: PROLINE REFERENCE: VS23 CODIC: 1361546...

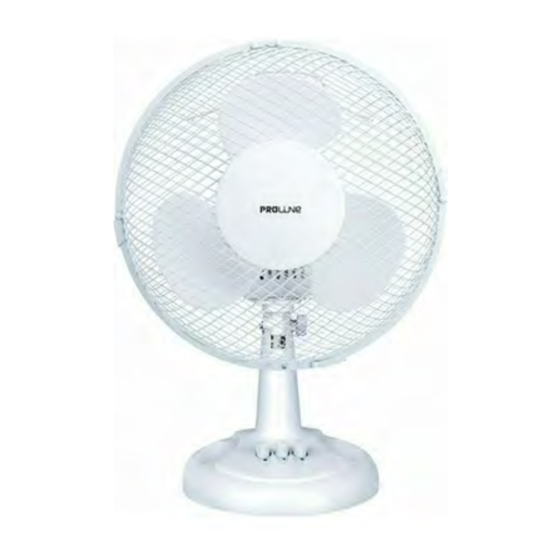

- Page 2 ELECTRIC FAN MODEL: VS23 INSTRUCTION MANUAL...
- Page 3 WARNINGS This appliance is intended for domestic household use only and should not be used for any other purpose or in any other application, such as for non-domestic use or in a commercial environment. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety.
- Page 4 DESCRIPTION 1. Front guard 7. Oscillation knob 2. Fan blade 8. Clip 3. Locking nut 9. Pole 4. Rear guard 10. Speed buttons 5. Motor spindle 11. Base 6. Motor housing ASSEMBLY Make sure the fan is disconnected from the mains socket. Rear guard assembly Unscrew the locking nut from the fan motor.
- Page 5 Position the rear guard onto the motor housing; make sure the handle on the rear guard is pointing upwards. Screw the locking nut to tighten the rear guard to the fan motor. Fan blade assembly Slide the fan blade onto the motor spindle, making sure the motor spindle is fully seated into the blade groove.
- Page 6 1. Place the fan on a stable, level surface. 2. Plug the fan in the mains socket. 3. Press the speed button to 1 or 2 to select the desired speed. To turn off the fan, simply press switch 0. 0= Off 1= Low speed 2=High speed...
