welcoming
FLOOR CABINET
MODEL # 1116FC-25-201; 1116FC-25-202;
1116FC-25-242
ATTACH YOUR RECEIPT HERE
Serial Number__________________ Purchase Date__________________
Questions, problems, missing parts? Before returning to your retailer, call our customer service
department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday.
•
MODEL NUMBER DESCRIPTION
1116FC-25-201
1116FC-25-202
1116FC-25-242
sophisticated

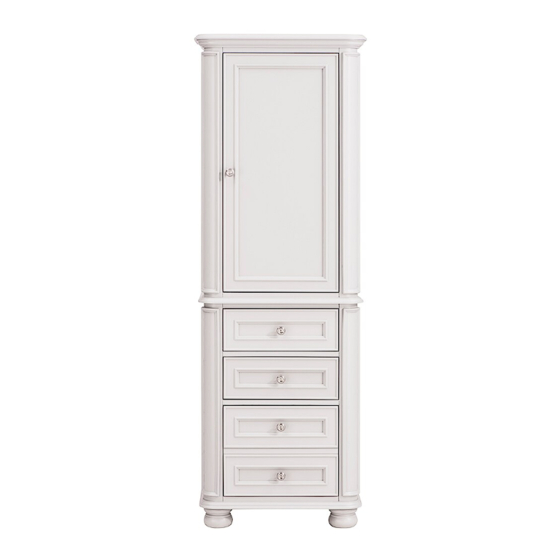

25" White Finish Floor Cabinet
25" Mahogany Finish Floor Cabinet
25" Light Gray Finish Floor Cabinet
•
inspiring
Advertisement
Related Manuals for Scott Living 1116FC-25-201
Summary of Contents for Scott Living 1116FC-25-201
- Page 1 25" Mahogany Finish Floor Cabinet 1116FC-25-242 25" Light Gray Finish Floor Cabinet FLOOR CABINET MODEL # 1116FC-25-201; 1116FC-25-202; 1116FC-25-242 ATTACH YOUR RECEIPT HERE Serial Number__________________ Purchase Date__________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Package Contents...........................3 Hardware Contents..........................3 Safety Information..........................4 Preparation ............................4 Assembly or Installation Instructions .....................4 Care and Maintenance ........................8 Warranty ............................8 Replacement Parts List ........................ . 9... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Cabinet Wall Mounting Spacer Bar (preassembled to Cabinet (A)) Shelf Door HARDWARE CONTENTS (NOT SHOWN ACTUAL SIZE) Shelf pin Qty. 8 Touch-up pen Qty. 1... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install this product. WARNING • Some steps are more easily handled with two adults. CAUTION • Before installation, carefully use scissors or utility knife to cut and unwrap all parts. Make sure you DO NOT discard the hardware. - Page 5 INSTALLATION INSTRUCTIONS 2. Clean area where the cabinet (A) will be permanently located prior to beginning installation, ensuring the cabinet (A) will not interfere with any plumbing or electrical lines once mounted. Locate wall studs and mark locations. With the help of another adult, place completed cabinet assembly in its final location.
- Page 6 INSTALLATION INSTRUCTIONS 4. If you need to adjust the doors, do so in the following manner. To adjust door up or down, loosen screws (a) on both hinges, adjust door, and retighten screws. To adjust door left or right, turn screws (b) on both hinges, in or out. To adjust door in or out, loosen screws (c) on both hinges, adjust door, and retighten screws.
- Page 7 INSTALLATION INSTRUCTIONS 6. To remove drawers from cabinet (A), fully extend drawers and locate the plastic levers on left and right sides of the metal glide tracks. Push the plastic levers, on both sides, at the same time, This will disengage the drawer box from the glides.
-
Page 8: Care And Maintenance
CARE AND MAINTENANCE • Dust the floor cabinet regularly with a soft, non-lint producing cloth or household dusting product. • You can clean the floor cabinet with a gentle, non-abrasive household cleaner. • Make sure to dry the wood immediately with a soft cloth or towel. •... -
Page 9: Replacement Parts List
REPLACEMENT PARTS LIST FOR 1116FC-25-201 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# 1116FC-25-201-001 Wall Mounting Spacer Bar 1116FC-25-201-002 Shelf Door 1116FC-25-201-003 Top Drawer Front 1116FC-25-201-004... - Page 10 REPLACEMENT PARTS LIST FOR 1116FC-25-202 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# 1116FC-25-202-001 Wall Mounting Spacer Bar 1116FC-25-202-002 Shelf Door 1116FC-25-202-003 Top Drawer Front 1116FC-25-202-004 Bottom Drawer Front 1116FC-25-202-005 Foot...
- Page 11 REPLACEMENT PARTS LIST FOR 1116FC-25-242 For replacement parts, call our customer service department at 1-866-439-9800, 8 a.m. - 8 p.m., EST, Monday - Sunday. PART DESCRIPTION PART# 1116FC-25-242-001 Wall Mounting Spacer Bar 1116FC-25-242-002 Shelf 1116FC-25-242-003 Door Top Drawer Front 1116FC-25-242-004 Bottom Drawer Front 1116FC-25-242-005 Foot...
