TM

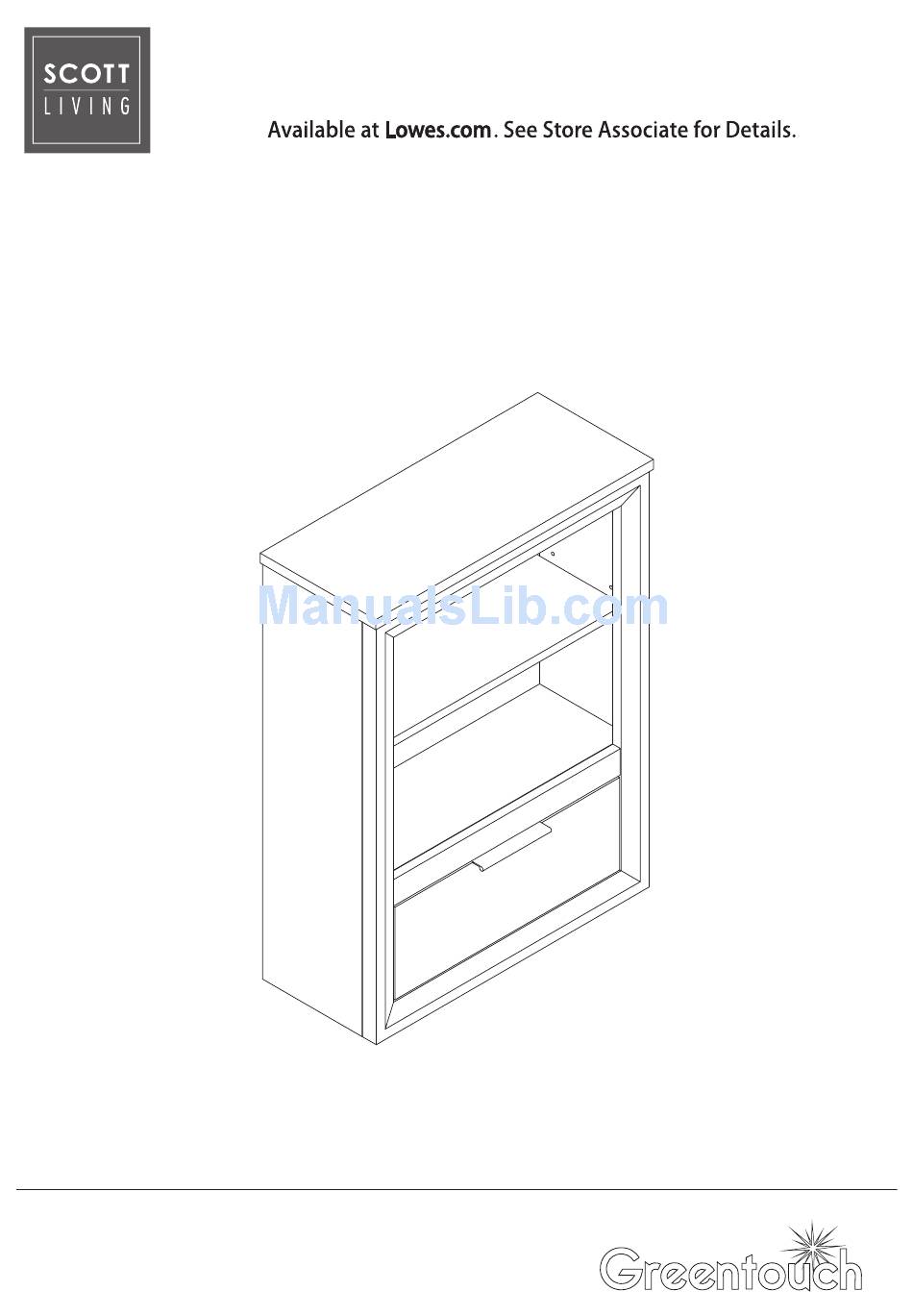

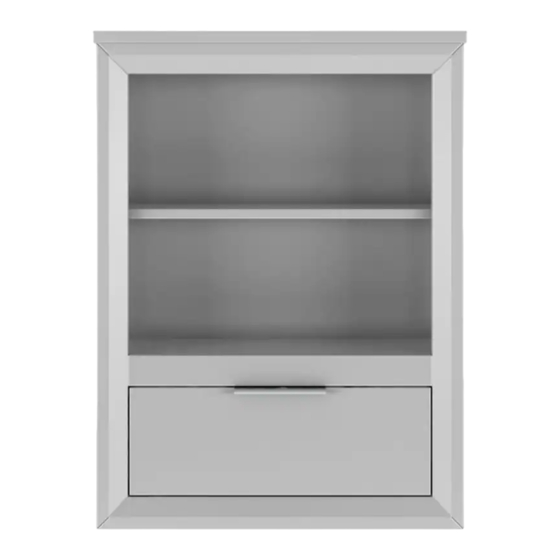

Robinson Bathroom Wall Cabinet
24-IN Wall Cabinet
( 24-IN W x 10-IN D x 32-IN H)
Date Purchased _______________________
Questions, problems, missing parts?
Before returning to your retailer,
call our customer service department at
1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday.
www.greentouchhome.com
Advertisement
Table of Contents
Related Manuals for Scott Living 1192WC-24-201
Summary of Contents for Scott Living 1192WC-24-201
- Page 1 Robinson Bathroom Wall Cabinet 24-IN Wall Cabinet ( 24-IN W x 10-IN D x 32-IN H) Date Purchased _______________________ Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-855-571-1044 9 a.m. - 5 p.m., EST, Monday-Friday. www.greentouchhome.com...
-
Page 2: Model Number Description
MODEL NUMBER DESCRIPTION 1192WC-24-201 24" White Finish Wall Cabinet 1192WC-24-242 24" Light Gray Finish Wall Cabinet 1192WC-24-245 24" Coffee Oak Finish Wall Cabinet... -
Page 3: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY Cabinet Wall Bracket Shelf HARDWARE CONTENTS Shelf pin Qty.4 Touch-up pen Qty.1... -
Page 4: Safety Information
SAFETY INFORMATION Please read and understand this entire manual before attempting to assemble, operate or install this product. WARNING • Some steps are more easily handled with two adults. CAUTION • Before installation, carefully use scissors or utility knife to cut and unwrap all parts. Make sure you DO NOT discard the hardware. - Page 5 INSTALLATION INSTRUCTIONS 2. Using hardware appropriate for your wall type (not included), secure the Wall Bracket (B) to the wall into preferably 2 wall studs. Use hardware such as a cabinet screw or toggle bolt depending on your wall type. Make sure the Wall Bracket (B) is level and centered well to the desired location of the Cabinet (A).
-
Page 6: Care And Maintenance
INSTALLATION INSTRUCTIONS 4. Insert shelf pins (BB) at desired height, ensuring they are level. Place shelf (C) on top of shelf pins (BB). Hardware Used Shelf Pin CARE AND MAINTENANCE • Dust the Wall cabinet regularly with a soft, non-lint producing cloth or household dusting product. •... -
Page 7: Part Description
REPLACEMENT PARTS LIST FOR 1192WC-24-201 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART# 1192WC-24-201-001 Wall Bracket Shelf 1192WC-24-201-002 Flip down door 1192WC-24-201-003 Touch-up pen OF-0010 Shelf pin... - Page 8 REPLACEMENT PARTS LIST FOR 1192WC-24-242 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART# 1192WC-24-242-001 Wall Bracket Shelf 1192WC-24-242-002 Flip down door 1192WC-24-242-003 Touch-up pen OF-0120R Shelf pin B1044 Door Pull PU-1192-BN...
- Page 9 REPLACEMENT PARTS LIST FOR 1192WC-24-245 For replacement parts, call our customer service department at 1-855-571-1044, 9 a.m. - 5 p.m., EST, Monday - Friday. PART DESCRIPTION PART# 1192WC-24-245-001 Wall Bracket Shelf 1192WC-24-245-002 Flip down door 1192WC-24-245-003 Touch-up pen OX-0940S Shelf pin B1044 Door Pull PU-1192-BN...
