Velocity VDOT-SSPKCLP Series Manual

Velocity VDOT-SSPKCLP Series Manual

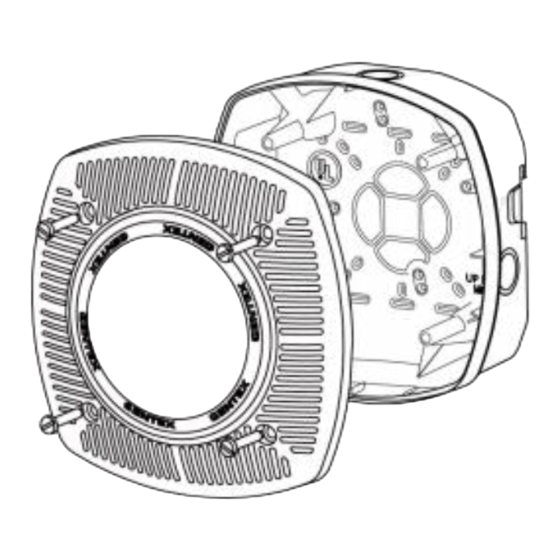

Universal mount speaker & ceiling mount speaker/strobe

Advertisement

MODELS
SSPKCLP*................ LOW PROFILE CEILING OR WALL MOUNT SPEAKER WITHOUT STROBE
SSPK24CLP*............ LOW PROFILE CEILING MOUNT SPEAKER WITH SELECTABLE STROBE

Introduction

The VDOT-SSPKCLP/VDOT-SSPK24CLP is a high quality speaker and speaker/strobe ANSI/UL Listed for fire protective signaling systems. The
high intensity strobe utilizes a Xenon flash tube which generates a high-intensity light visible from all sides.
The VDOT-SSPK24CLP strobe is ANSI/UL Listed in compliance with ANSI/UL 1971, Signaling Appliances for the Hearing Impaired.

Product Information

The VDOT-SSPKCLP/VDOT-SSPK24CLP Series speaker and speaker/strobe offer a choice of field selectable power taps, 1/8, 1/4, 1/2, 1, 2 and 4
Watts for either 25v or 70.7v audio amplifiers.
The VDOT-SSPK24CLP speaker/strobe offers the option of a high intensity strobe which complies with ANSI/UL 1971.

Location

This appliance is intended for use in fire alarm systems and is to be installed in accordance with this installation manual, the recommendation
of the local authorities having jurisdiction, and other NFPA Standards that provide standards on notification appliances for protective signaling
systems. The VDOT-SSPKCLP/VDOT-SSPK24CLP Series is intended for indoor installation only. This appliance is not listed for outdoor or drip
proof applications.
www.velocitydetection.com
Universal Mount Speaker & Ceiling Mount Speaker/Strobe
Doc: GLT-000-0-0
VDOT-SSPKCLP* & SSPK24CLP*
Issue: 001
Date: 00/00/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VDOT-SSPKCLP Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Velocity VDOT-SSPKCLP Series

  • Page 1 VDOT-SSPKCLP* & SSPK24CLP* Universal Mount Speaker & Ceiling Mount Speaker/Strobe MODELS SSPKCLP*....LOW PROFILE CEILING OR WALL MOUNT SPEAKER WITHOUT STROBE SSPK24CLP*.... LOW PROFILE CEILING MOUNT SPEAKER WITH SELECTABLE STROBE Introduction The VDOT-SSPKCLP/VDOT-SSPK24CLP is a high quality speaker and speaker/strobe ANSI/UL Listed for fire protective signaling systems. The high intensity strobe utilizes a Xenon flash tube which generates a high-intensity light visible from all sides.
  • Page 2 VDOT-SSPKCLP* & SSPK24CLP* Universal Mount Speaker & Ceiling Mount Speaker/Strobe Electrical Specifications NOTICE: DC VOLTAGE RANGE LIMITS: 16-33V. FWR VOLTAGE RANGE LIMITS: 16-33V. THIS PRODUCT WAS ONLY TESTED TO THE STATED VOLTAGE RANGE(S); DO NOT APPLY 80% AND 110% OF THIS RANGE FOR SYSTEM OPERATION. System Considerations 1.
  • Page 3 Limited Warranty Velocity Detection over Time Zeta Alarms Ltd declares that this product is free from defects in material and workmanship and it will repair or replace any product or part thereof which proves to be defective in workmanship or material for a period of twelve (12) months from the date of purchase but not to exceed eighteen (18) months from the date of manufacture.

This manual is also suitable for:

Vdot-sspk24clp series
