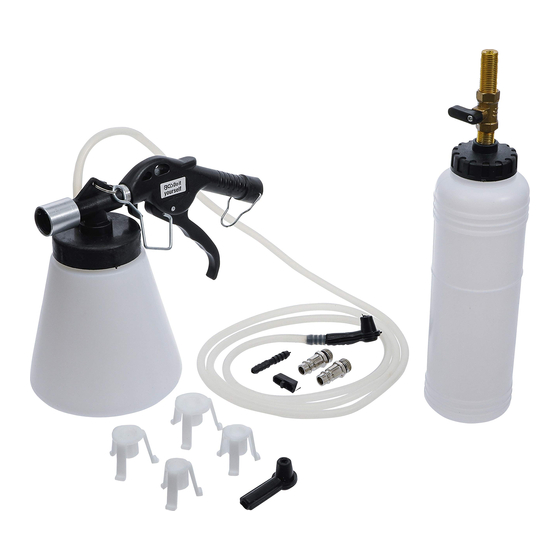

PARTS
1 Muffler
2 Lid unit
3 Container
4 Trigger
5 Air inlet
6 Lid with valve
7 Container
8 Adaptor A, B, C, D
9 Adaptor pipe for brake bleeding
adaptor
10 Bleeding adaptor
11 Replacement valve lever
12 Air connector (2x)
WARNING!
Read, understand and follow all instructions and warnings before operating this tool.
Failure to do so may result in personal injury and/or property damage and will void
INTRODUCTION
The air brake bleeder enables simple, one man operation using a standard workshop air supply
6,2 bar – 8,3 bar (90 to 120psi). Quick clean and efficient operation without requiring specialized
brake reservoir caps. Draws fluid from the brake nipple enabling brake bleeding or full replacement of
fluid in the system.
•
Brake systems should be maintained by qualified personnel only!
•
Keep this product in good working order and condition, take immediate action to repair or
replace damaged parts.
•
Use approved parts only. Unapproved parts may be dangerous and will invalidate the warranty.
•
Keep children and unauthorised persons away from the work area.
•
Keep work area clean and tidy and free from unrelated materials.
•
Ensure the work area has adequate lighting.
•
Do not use the kit to perform a task for which it is not designed.
•
Do not use whilst under the influence of drugs, alcohol or intoxicating medication.
•
Dispose of waste liquids in accordance with local authority regulations.
•
Always read and comply with the warnings on the brake fluid container.
•
Wear eye protection and keep skin contact to a minimum. If brake fluid enters eyes rinse with
plenty of water and seek medical advice. If swallowed seek medical advice immediately
•
Secure your vehicle against unintended movement.
•
Always follow the manufacturer's recommendations.
