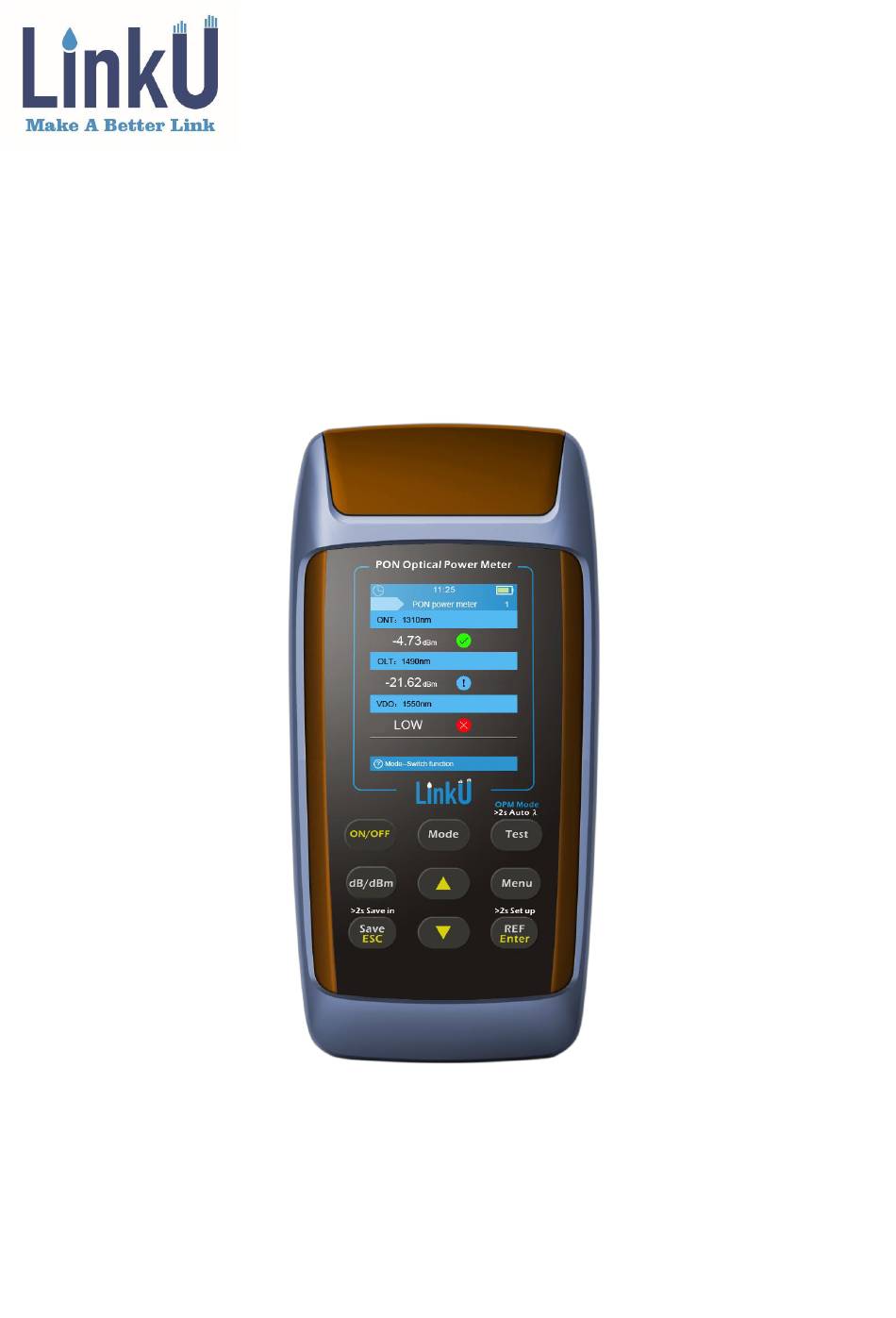

- Page 1 User Guide Version: 1.0 PON Power Meter Model # LP-3P LINKUTEL www. .com...
-
Page 2: Maintenance
User Guide WARNING ⚫ Do not look at the laser ’s direct ray, reflected ray from a mirror, or indirect ray without the proper protective eyewear. ⚫ Use the Correct Power Supply and AC Adapter ⚫ When not in use for a long time, please take out the battery from the instrument to avo id the damage caused by battery leakage ⚫... -
Page 3: Overall Layout

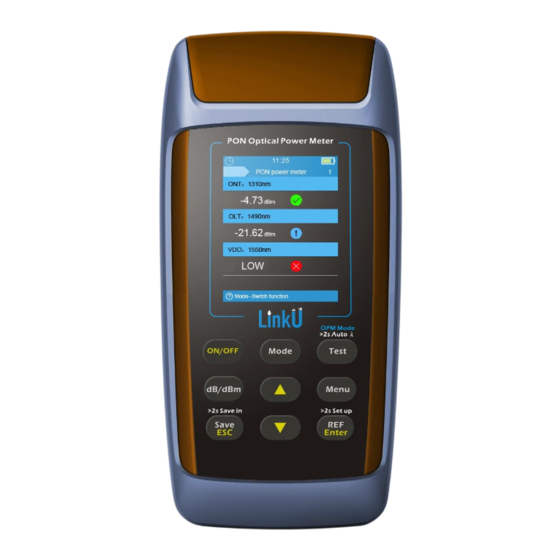

User Guide Overall Layout Top View Rear View Front View Left side View LCD with backlight ONT/ONU connector Operating keyboard USB port OLT/Video connector Battery compartment OPM/VFL connector (optional) Key-board PON OPM/VFL switch Power on/off key Run measurement Measuring unit switch key System Setting Reference Value set / Data save / review key... -
Page 4: Power On/Off
ON/OFF PON OPM - Measurement &. P/F Judgement After power on, the LP-3P will enter PON power meter mode to measure upstream data signal 1310nm, downstream data signal 1490nm and downstream video signal 1550nm at the same time. Test... - Page 5 User Guide PON OPM - Measuring Unit Switching dB/dBm Press to switch the measuring unit. The currently used unit will be saved when power off. The measuring unit will turn to dB in REF mode. PON OPM - Reference Value Set/Review Long press key for 2 seconds to set the current power value as new reference value, and Enter...
- Page 6 User Guide PON OPM - Data Storage >2s Save in Save Long press to save the currently measured optical power value (the number of stored records will flash 2 second in the screen). >2s Save in Save Short press to review the stored records. Press to review previous or next record.
- Page 7 User Guide VFL Mode (optional) If the instrument comes with VFL module, press key to enter VFL mode, and press Mode to activate the VFL. Test ( on → glint → off ) Mode WWW.LINKUTEL.COM...
-
Page 8: System Settings
User Guide System Settings Menu Menu Press to enter System settings, there are 3 pages, press key to cycle through the three menu pages. Press key to choose item, press , then the editable figure turns to Enter red, press key to edit. -
Page 9: Battery Charging
User Guide Battery Charging The instrument can be powered by rechargeable batteries. The battery indicator on the screen will flash when charging and will stop flashing when the batteries are fully charged. Caution: The rechargeable batteries must be put in the battery compartment when use the AC/DC adaptor for charging.
