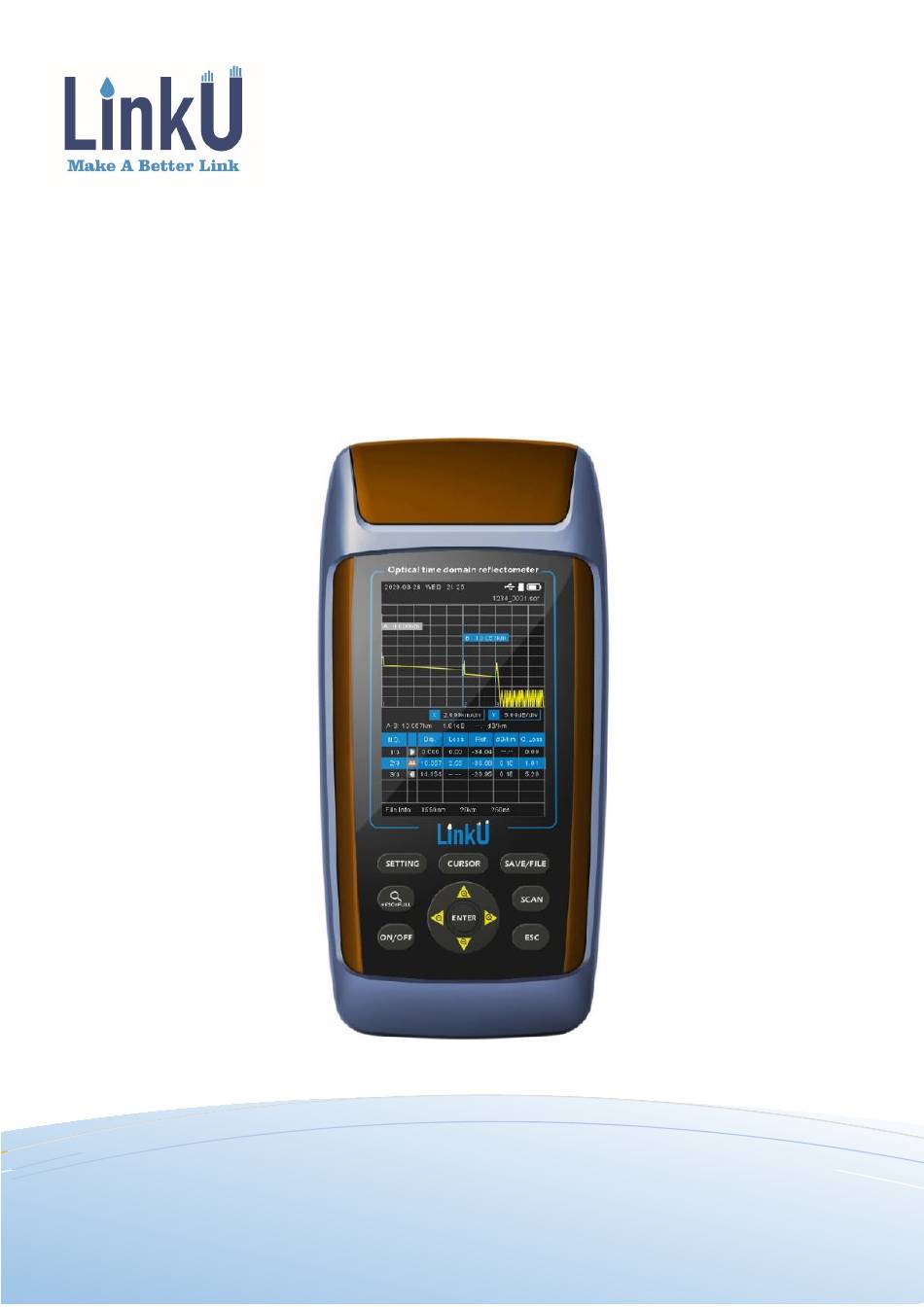

  • Page 1 User Guide Version: 1.0 Optical Time Domain Reflectometer Model # LOT2100 LINKUTEL WWW. .COM...
  • Page 2 USER GUIDE WARNING ⚫ Do not look at the laser ’s direct ray, reflected ray from a mirror, or indirect ray without the proper protective eyewear. In addition, avoid being exposed to the laser light. It can cause blindness or damage to the eye.

  • Page 3: Overall Layout

    USER GUIDE Overall Layout Top View Rear View Front View Left side View 3.2-inch LCD Display OTDR Port Operating Keyboard Charging indicator OPM Port Reset Button TF Card Slot (Micro SD) USB interface VFL Port Battery compartment Key-board Switch cursor in OTDR testing mode. In OTDR &.
  • Page 4 USER GUIDE Main Menu There are five sub-menus, use the Direction/Enter to select and enter the chosen menu. The menu will be Highlighted when it is chosen. OTDR Mode File name Testing Curve Scale Distance & attenuation Event list Measurement warning Measurement info WWW.LINKUTEL.COM...
  • Page 5 USER GUIDE OTDR ----- Curve Zoom In/Out Vertical scaling Vertical Zoom In Vertical Zoom Out Horizontal Zoom In Horizontal scaling Horizontal Zoom Out Full-screen Display OTDR ----- Measurement Press to run measurement. If the Real time mode is activated, press again to run average measurement, a progress bar will be displayed.
  • Page 6 USER GUIDE OTDR ----- Event List After the measurement finished, the event list will be displayed. If there are more than 5 events, the rest can be viewed by using button. Five event types Optic fiber starting point Reflection event Attenuation event Gain event Optic fiber ending point...
  • Page 7 USER GUIDE OTDR ----- File Saving After finishing the measurement, press button to save the file and edit the file name by using the virtual keyboard in the screen. If the Auto Name function is turned on, the file name will be automatically generated when saving.

  • Page 8: Event Map

    USER GUIDE Event Map Select Event Map mode in the main menu, and press to enter, then press to run measurement, a progress bar will be displayed. Total loss Visual event range Linear view of event list Event list (Measurement warning) Event Map ----- Setup Press...
  • Page 9 USER GUIDE Event Map ----- File Saving After finishing the measurement, press to save the file and edit the file name by using the virtual keyboard in the screen. If the Auto Name function is turned on, the file name will be automatically generated when saving.
  • Page 10 USER GUIDE OPM/VFL Mode Select OPM/VFL in the main menu, and press to enter the OPM/VFL mode. Press to turn on/off the VFL. Press to set ref. figure. Press to review current ref. figure. Press to switch the testing wavelengths*. Press to enter OPM setup.
