LinkU LS Series Operation Instruction

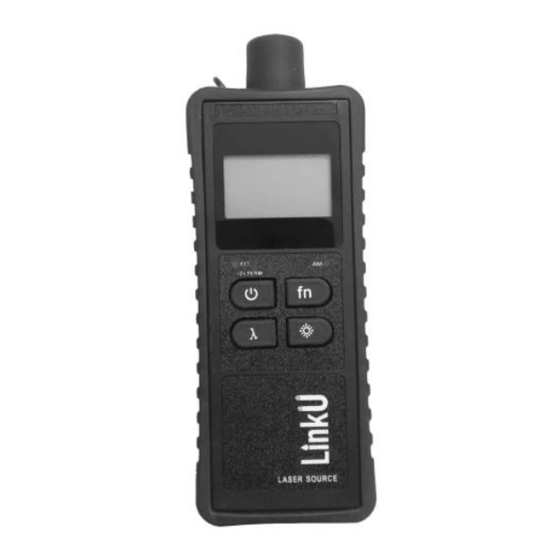

LS series Laser Source
Description
Laser Source is used to test loss and multi-fiber continuity in
optical fiber systems. LS series provides high stability and
portability for accurate fiber optic testing.
Features
Wavelength-identification
Digital encrypted protocol
Auto power-off, Back-light
TWO wavelengths on a single port, or FOUR wavelengths on two ports
Specification
Model #
Output Wavelength
Laser Type
Output Stability
Central Wavelength
Spectral Width
Output Frequency
Output Power
Operating Temperature
Storage Temperature
Power supply
Dimension &. Weight
Standard Accessories:
LS-2M LS-2S
850/1300nm 1310/1550nm
Short term (15 mins): ± 0.02dB@1310/1550nm
long term (5 hrs.):
FC/PC &.SC/PC Adapter, Carrying Bag, Manual
LS-2Q
850/1300/1310/1550nm
LD
± 0.1dB@850/1300/1490/1625nm
± 0.1dB@1310/1550nm
± 0.2dB@850/1300/1490/1625nm
± 10 nm
3 nm
270 Hz, 1KHz, 2KHz
-5dBm± 0.5dB
-10 to +50° C ; <90% RH
-20 to +70° C ; <90% RH
2 * AA Batteries;
160×58×32 mm (L×W×H); 180g
LS-2T
1310/1490/1550
