CONTROL 227C/CT BACK CAN ASSEMBLY

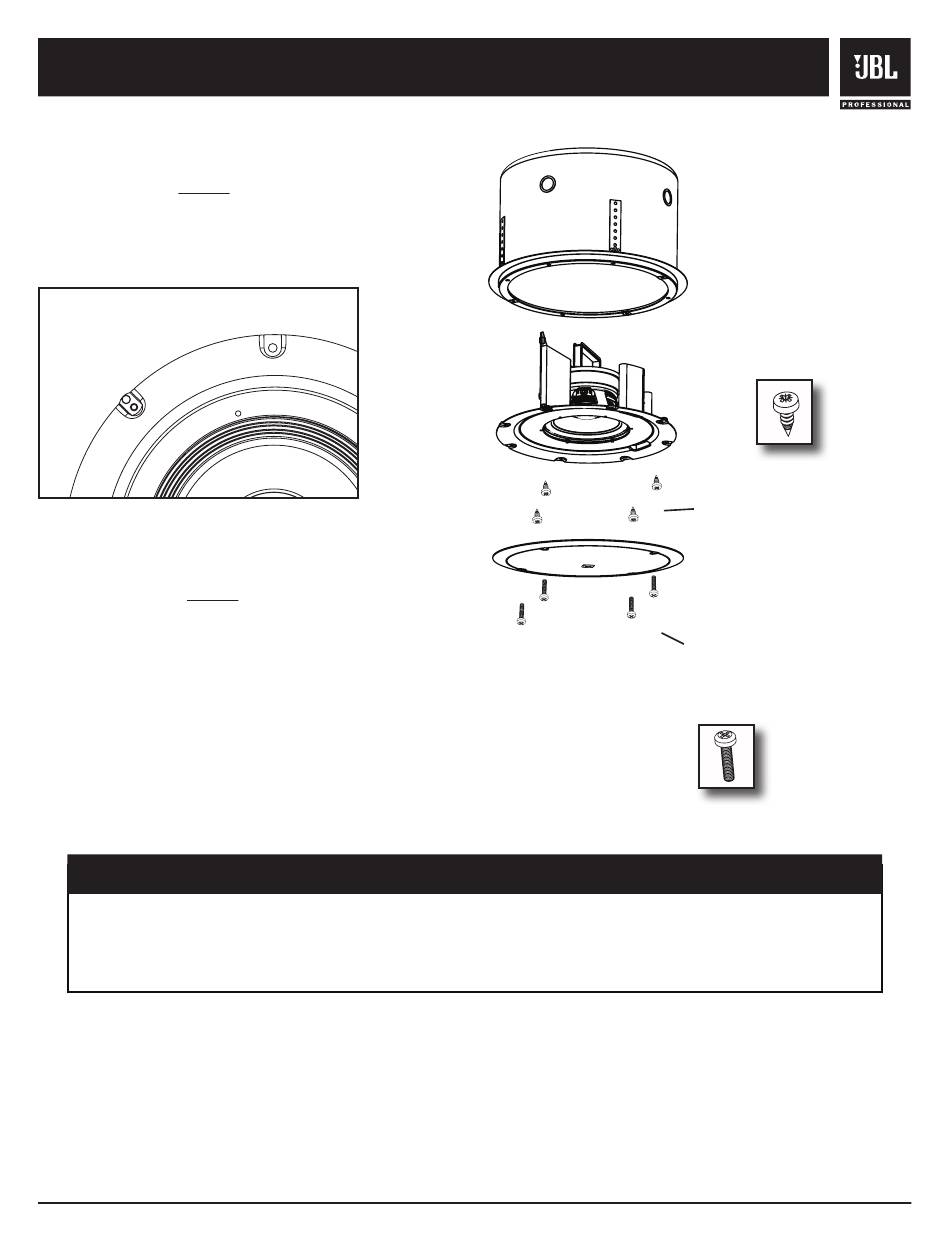

Assembling the Control 227C/CT into the Back Can -
After inserting the Control 227C/CT into the back can, align
the mouting holes without weldnuts to the holes with clip
nuts on the back can. These are the mounting points that
will be used to secure the Control 227C/CT baffle and driver
to the backcan.
Non-Weldnut
mount point
Weldnut
mount point
Next, using 4 pcs - #10 x 0.5 in (12mm) sheet metal screw,
attach the baffle / driver to the back can. Be sure to match
the mounting holes without weldnuts to clipnuts on back
can.
Finally, using 4 pcs - M4 x 38mm powder coated machine
screws, attach the metal grille to the baffle. Be sure to
match the grille mouting holes to the weldnuts on the baffle
assembly.
WHEN INSTALLING CONTROL 200 SERIES BACK CANS INTO A CEILING OR BUILDING
STRUCTURE, ALWAYS USE PROPER SUSPENSION AND RIGGING PRACTICES IN
ACCORDANCE WITH YOUR AREA'S BUILDING CODES AND REGULATIONS.
CAUTION:
JBL Professional Control 200 Series
4 pcs - #10 x 0.5 in (12mm)
sheet metal screw for attaching
the baffle / driver to the back
can. Match to clipnuts on back
can. (Included with
MTC-200BB6. )
4 pcs - M4 x 38mm powder coated
machine screws for attaching the
metal grille to the baffle. (Included
with JBL Professional grilles.)
