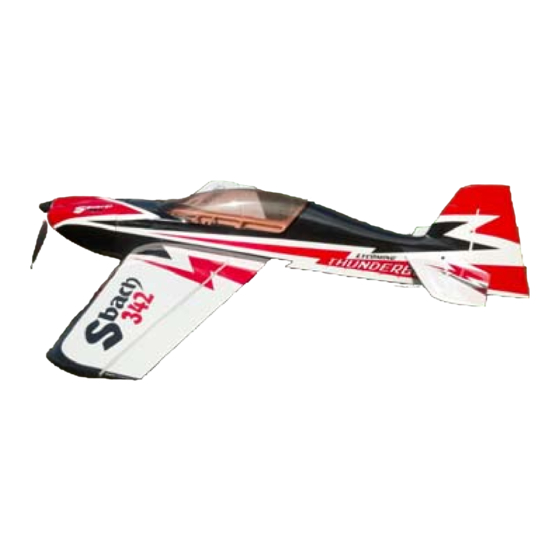

AeroPlus Sbach 342 Manual

Hide thumbs

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

www.aeroplusrc.com

Item No：A‐E070002

Specifications

Wing Span

Length

Wing Area

Flying Weight

Glow

Electric

PROP

LI‐POLY

Radio

Description

Sbach 342 60" manual

60"(1520mm)

58.5"(1490mm)

738sq.in.(47.6sq.dm.)

5‐5.5lbs(2300‐2500g)

Glow:.46‐.52 2C .52‐.82 4C

Brushless outrunner 8Oz.

APC16x10E‐17x8E

5‐6S 3800‐5000mAh

4CH/5S or 4s 1ESC（70A)

Carbon Fibre : Wing tube, tail gear;

Fiberglass servo arms and horn;

Lightweight wheels

ball‐link hardware

Colour scheme

service@aeroplusrc.com

Need help?

Do you have a question about the Sbach 342 and is the answer not in the manual?

Questions and answers

Summary of Contents for AeroPlus Sbach 342

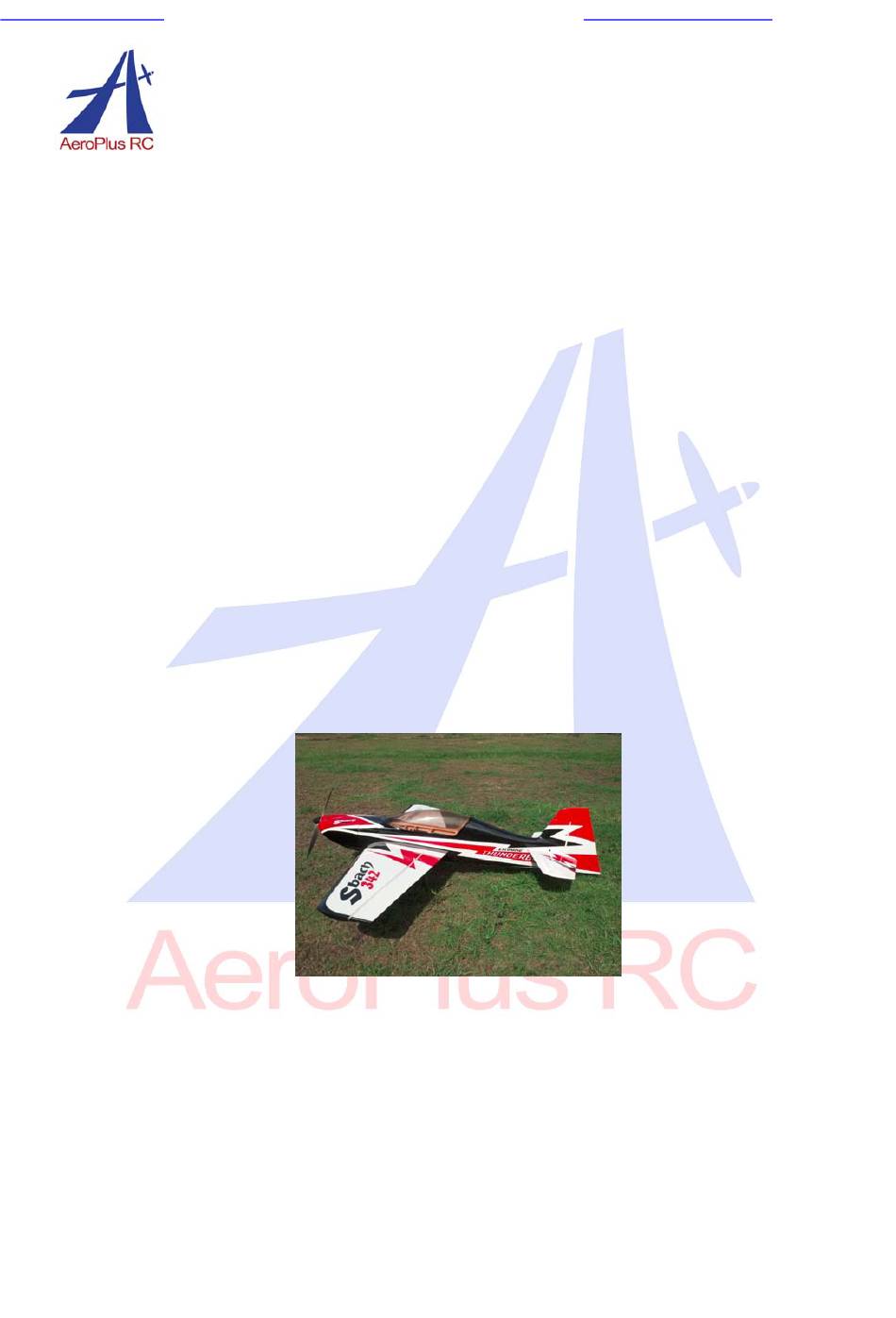

Page 1 58.5"(1490mm) Wing Area 738sq.in.(47.6sq.dm.) Flying Weight 5‐5.5lbs(2300‐2500g) Glow Glow:.46‐.52 2C .52‐.82 4C Electric Brushless outrunner 8Oz. PROP APC16x10E‐17x8E LI‐POLY 5‐6S 3800‐5000mAh Radio 4CH/5S or 4s 1ESC（70A) Description Carbon Fibre : Wing tube, tail gear; Fiberglass servo arms and horn; Lightweight wheels ball‐link hardware Powered by Electric or Glow Colour scheme AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 2 service@aeroplusrc.com Unpacking Carefully unpack the model making sure that if you use a sharp knife to open bags, not to cut any covering on the model. Inspect each item to make sure no transit damage has happened. If you are not happy with any part or are unsure please contact the Dealer that you purchased from. Covering Due to the model spending time in different climates zones from the factory on its way to you, some of the covering may have wrinkles. We highly recommend that you take time to re‐seal all covering edges with an iron and to use a heat gun to remove any wrinkles and re‐tighten the covering. It is best to do this now while the plane is not assembled, remember to not let any heat get near any parts like the canopy or cowl as this may cause damage. Assembly Tips We also recommend that you go over all the accessible joints with cyano glue. Wick glue into areas of high stress around the U/C plate and motor box. Use Nutlock on all metal to metal joints. Even if you are using electric with low vibration levels it will make sure that things do not drop off your airplane!! AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 3: Landing Gear Assembly
service@aeroplusrc.com Landing Gear Assembly To stop the fuselage getting damaged while the model is assembled we recommend fitting the landing gear first.  Push each axle through the whell holes, and tighten up with 1x self locking nut and 1x blind nut. Then axle though the hole of landing gear, and tighten up with 1x self locking nut  The U/C rakes forward so use the correct wheel pant per side, and using a fine drill, drill holes for the screws.  Now line up the wheel in the centre of the wheel pant opening and tighten the collets. Remember to use nutlock and to make sure the wheel can move freely. AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 4  Fit the CF wing tube and looking from the front and back check that the elevator plate is in horizontal alignment to the rear stab. If it is not then trim the opening so that it is equal.  Fit the wings and measure from the end of the wing to the elevator stab to make sure that both sides are equal  Glueing – Once you think you are ready to glue, measure again. We recommend 2 methods for gluing. Either remove the covering on the area that is covered by the fuselage and glue with CA or leave the covering on and glue with thin cyno. Wicking in thin first, if a large gap is visible then use medium or thick. Remember to wick in small amounts at a time keeping the plane level, this will ensure the glue stays where it needs to be.  Depending on if you are fitting 1 or 2 elevator servo’s you may need to fit the elevator joining bar.  Glue the joiner bar into 1 of the elevator halves with epoxy.  Now we can hinge one of the elevators with the joiner bar glued in.  Apply ‘vaseline’ to the hinge point on the hinges and to glue these into the both the stab and elevator half. Wipe off excess glue before it sets.  Dry fit the other elevator half with the hinges and make sure that both halves align to the stab. Trim where the joiner bar sits if required.  Glue the hinges in both stab and elevator again. While gluing use tape to keep it in alignment  Remove the covering for the elevator servo AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 5 service@aeroplusrc.com  Remove the covering where the elevator horns fit, use either a soldering iron or a sharp knife.  The area on the horns that goes inside the elevator needs to be roughed up with sandpaper. This allows a better glue joint.  Glue the horns in place with epoxy glue. Put a bolt through the ball joint hole to make sure that the horns stay in alignment while drying.  Before fitting the elevator servo fix an extension lead so that the wire can be routed through the fuselage. On the servo lead joint add a servo plug clip.  Fit the Elevator Servo servo and using a fine drill, drill holes for the servo screws. Remove the servo and drop thin cyno into all 4 holes.  Re‐fit the elevator servo and secure it in with servo screws.  Centre the servo using your TX, and fit a servo arm. Use either an aftermarket arm or attach the arms that were supplied to a servo head. Screw ball joints onto the pushrod (use pliers to hold pushrod) and bolt in place with supplied bolts. Centre of servo should align with elevator flat to the stab.  If you are using dual elevator servos then repeat the process on the other side. AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 6 service@aeroplusrc.com Rudder  Remove the covering where the rudder horns push through with either a knife or soldering iron.  Test fit the rudder horns  Sand the area on the horn that fits inside the rudder so the glue bonds better  Glue the rudder hinges into both the rudder and fin using CA. Remember to use vaseline on the hinge joint. While drying use tape to keep it in alignment.  Glue the rudder horns through the rudder with CA. Use the ball joint and bolt while gluing to maintain alignment. AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 7 service@aeroplusrc.com  Assemble the rudder servo control arm as below, drill holes for screws and use cyno to stop the nuts from coming loose.  Fit the rudder servo and drill holes using a fine drill for the servo screws, drop thin cyno into the holes to strengthen the wood.  Using servo screws fix the servo in place, note the spline is towards the front of the plane  The closed loop wires are assembled in the plane; attach the rear ball joints to the rudder. Do this to both sides.  Fit the arm onto the rudder servo and crimp the wires to a taut tension Tail Gear  Locate all parts as in picture, when assembling remember to nutlock all parts AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 8 service@aeroplusrc.com  Assemble the Gear as per photo  At the rear of the fuselage you will find a ply wood area, lay the CF gear on this and mark the 3 holes. Taking care to make sure it is straight.  Drill each hole with a fine drill and drop thin cyno into the holes to strengthen the wood.  Screw the gear on with the three supplied self taping screws.  Drill a hole in the base of the rudder for the rudder steering guide.  Before gluing with cyano, place it over the thin rod. Aileron Servos  The ailerons on the wings are pre‐glued. Check each one by gently pulling to make sure that they are secure  Remove the covering where the aileron horns are glued in place. Use either a soldering iron or a sharp knife AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 9 service@aeroplusrc.com  Using sand paper rough the area that will be glued into the aileron.  Glue both horns in with epoxy glue, use a bolt through the horns when gluing to make sure the alignment is correct.  Fit the aileron servo and drill fine holes where the servo screws will fit.  If required install a servo extension lead onto the servo, remember to use a servo plug clip.  Fit the servo and centre the servo arm. AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 10 service@aeroplusrc.com  Using the pushrod supplied screw ball joints onto each end. The correct length will leave the aileron lined up to the inner part still attached to the wing.  Using supplied bolts attach the pushrod at both ends. Check to see you have sufficient movement of the aileron. If not adjust.  Carry out the same procedure on the other wing. Electric  Assemble the supplied electric motor box and bolt to the engine bulkhead.  Depending on the length of your motor you may need to use the supplied round plywood spacers to achieve the correct length for the motor.  Mount the ESC in airflow on the side of the electric motor mount, using a velco strap.  Mark the area and cut out using a dremel. Ensure that enough air can get out of the cowl. The ration is usually, 3 time out to 1 in. AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 11 service@aeroplusrc.com  Fit the ignition on the side of the motor box. Use Velcro and also a strap to ensure it does not come off with vibration.  The cowl is fixed in 4 places, 2 at the top and 2 at the bottom. Place masking tape over the bottom 2 and pierce where the blind nut hole is.  Refit the cowl and drill where the marked hole was. Switch  On each side of the fuselage near the canopy bolts are areas for switches to be mounted. RX  A convienient place to mount the RX is just in front of the rudder servo. Ensure that it is mounted on velco and strapped down. Canopy  The canopy is held in place with the lock AeroPlus RC Copyright 2013 © All Rights Reserved ...
Page 12 High Rate Exponential Elevator 15‐20 deg 15‐20 % 35‐45 deg 45‐60 % Ailerons 15‐20 deg 15‐20 % 35‐45 deg 45‐60 % Rudder 25‐30 deg 15‐20 % 35‐45 deg 45‐60 % For test flights always use low rates, remember that + and – exponential is different per manufacturer, check your TX manual. Always check the range on your model before the maiden flight. Carry out a short flight then go over everything to make sure nothing has come loose. CG Location We suggest for initial test flights set the CG 106mm or 4 inches from the leading edge of the wing. Adjust after first flights to personal preference. Enjoy! AeroPlus RC Copyright 2013 © All Rights Reserved ...
