Lenovo V470c/V570c Hardware Maintenance Manual

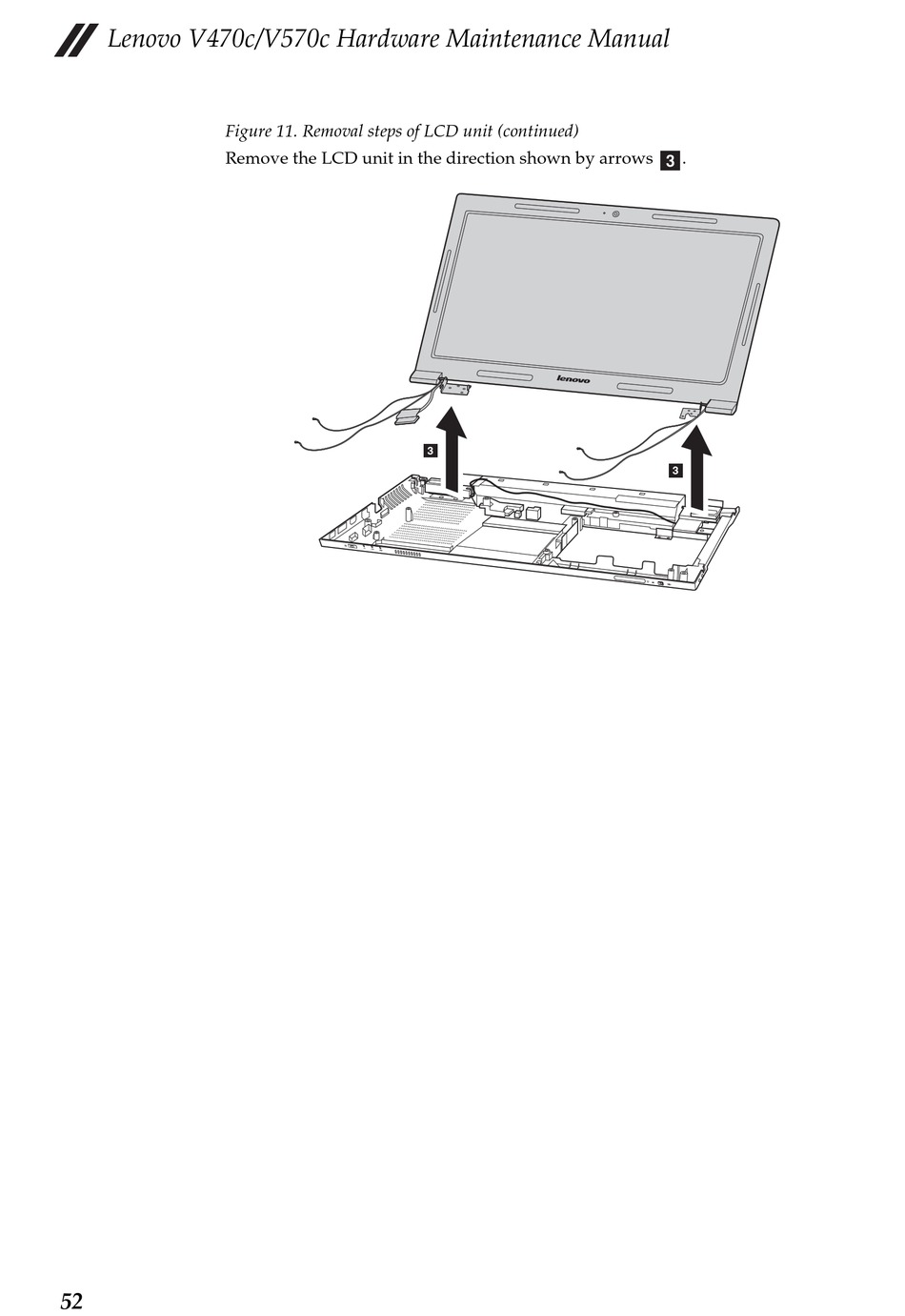

Figure 11. Removal steps of LCD unit (continued)

Remove the LCD unit in the direction shown by arrows

c

.

3

3

52
