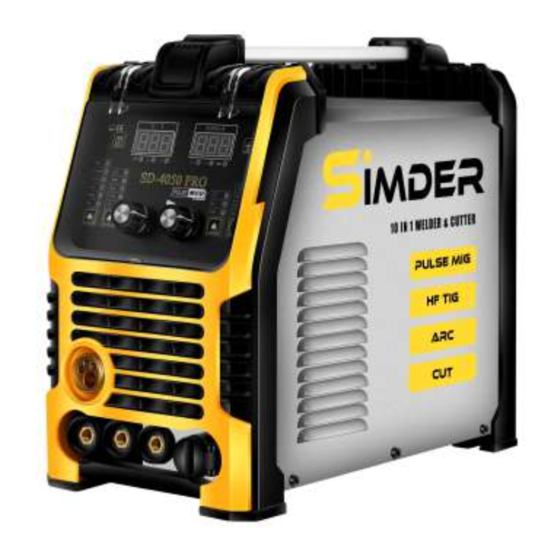

- Page 1 S SIMDER SD-4050PRO IGBT INVERTE R DIGITAL 10-IN-1 MULTI PROCESS MIG WELDER&CUTTER OPERATOR'S MANUAL...
- Page 2 SPECIFICATION OVERVIEW OF MACHINE INSTALLATION 08-10 OPERATION 11-14 17-18 19-20 22-23...
- Page 3 SSIMDER Welding Equipment Inc. www.ssimder.com...
- Page 4 www.ssimder.com...
- Page 5 www.ssimder.com...
- Page 6 www.ssimder.com...
- Page 7 Pulse MIG offers top quality, consistent welding with fairly low spatter compared to conventional MIG welders. Pulse MIG can help you take on all kinds of welding jobs from small parts to large automotive and motorcycle pieces, photo frames, high-power integrated circuit packages. High frequency Start TIG Welding allows the operator to position the tungsten electrode near the job, and simply press the torch trigger to start the arc.
-
Page 8: Specification
SPECIFICATION 25.6 27.2V 100V 25.6V www.ssimder.com... -
Page 9: Overview Of Machine
18.Power switch 19.Air filter regulator-install the air filter®ulator for plasma cutting 20.MIG gas connection INPUT AC 110V/220V 21.CUT gas connection 50/60Hz 22.Cooling fan-when the machine is switched ON,the SD-4050PRO MIG GAS 30A/15.5V~155A/21.7V 30A/15.5V~200A/24V fan runs continuously 155A 200A =62V 21.7V 23.Protective Ground... -
Page 10: Installation
INSTALLATION 1.MIG Welding (GAS MIG/FLUX CORE/PULSE MIG/SYN MIG) ①When GAS MIG/Pulse MIG/SYN MIG Welding, Change the Polarity output to Positive (see Figure 4 below). Connect the MIG Torch to "Terminal11" (See in Page 7 Figure 2 ) and connect the Ground Clamp to "Terminal 13". - Page 11 INSTALLATION 2.HF TIG Welding Connect the TIG Torch to "Terminal16" (See in Page 7 Figure 2 ) and the two-core control switch to "Terminal15", then connect the Ground Clamp to "Terminal12". www.ssimder.com...
- Page 12 INSTALLATION 3.MMA Welding Connect the Electrode Holder to "Terminal13" (See in Page 7 Figure 2 ) and the Ground Clamp to "Terminal12" . 4.Plasma Cutting Connect the CuttingTorch to "Terminal16"(See in Page 7 Figure2 ) and the two-core control switch to "Terminal15", then connect the Ground Clamp to "Terminal14". www.ssimder.com...
-
Page 13: Operation
OPERATION 1.INDUCTANCE ADJUSTMENT Available on MIG Welding Mode, Press the Current Button, when the Voltage Display shows "IND " , Rotate the Current Button to you preferred figure, Adjustable Figure Range "-10 to 10". 2. BURN BACK CONTROL Available on MIG Welding Mode, Press the Current Button, when the Voltage Display shows " 66E"... - Page 14 OPERATION 3. SPOT TIMER SETTING Available on MIG Welding Mode, Choose "SPOT" MODE, Press the Current Button, when the Voltage Display shows "SPT" , Rotate the Current Button to you preferred Spot Time, from "0 to 3 seconds". 4. PRE FLOW OF SHIELDING GAS TIME SETTING Available on TIG/CUT Mode, Press the Current Button, when the Voltage Display shows "...
- Page 15 OPERATION 5. POST FLOW OF SHIELDING GAS TIME SETTING Available on TIG/CUT Mode, Press the Current Button, when the Voltage Display shows " PoG" , Rotate the Current Button to you preferred POG time, from 1second to 5 seconds. 6. HOT START SETTING Available only on MMA Welding Mode, Press the Current Button, when the Voltage Display shows "HS"...
- Page 16 OPERATION 7. ARC FORCE SETTING Available only on MMA Welding Mode, Press the Current Button, when the Voltage Display shows "AFc" , Rotate the Current Button to you preferred figure.Adjustable Figure Range "0 to 10". 8. VRD SETTING Available only on MMA Welding Mode, Press the Current Button, when the Voltage Display shows "Vrd"...
- Page 17 www.ssimder.com...
- Page 18 www.ssimder.com...
- Page 19 www.ssimder.com...
- Page 20 www.ssimder.com...
- Page 21 www.ssimder.com...
- Page 22 www.ssimder.com...
- Page 23 www.ssimder.com...
- Page 24 www.ssimder.com...
- Page 25 www.ssimder.com...
- Page 26 www.ssimder.com...
Need help?
Do you have a question about the SD-4050PRO and is the answer not in the manual?
Questions and answers
Which gas settings do you select for welding aluminum? And which gas settings do you select for welding pulse aluminum?
For aluminum MIG welding with the Simder SD-4050PRO, pure argon gas is used. The machine supports Pulse MIG welding, which provides better control and precision when welding aluminum alloys.
For shielding gas time in TIG and CUT modes, the setting "PoG" can be adjusted from 1 to 5 seconds. However, this does not specifically apply to MIG welding.
There is no mention of mixed gas for aluminum welding, indicating that pure argon is the recommended option.
This answer is automatically generated
What should the air compressor psi be set on and the regulator that comes with the.simder.sd4050pro 2024 that bolts to the back of the welder
