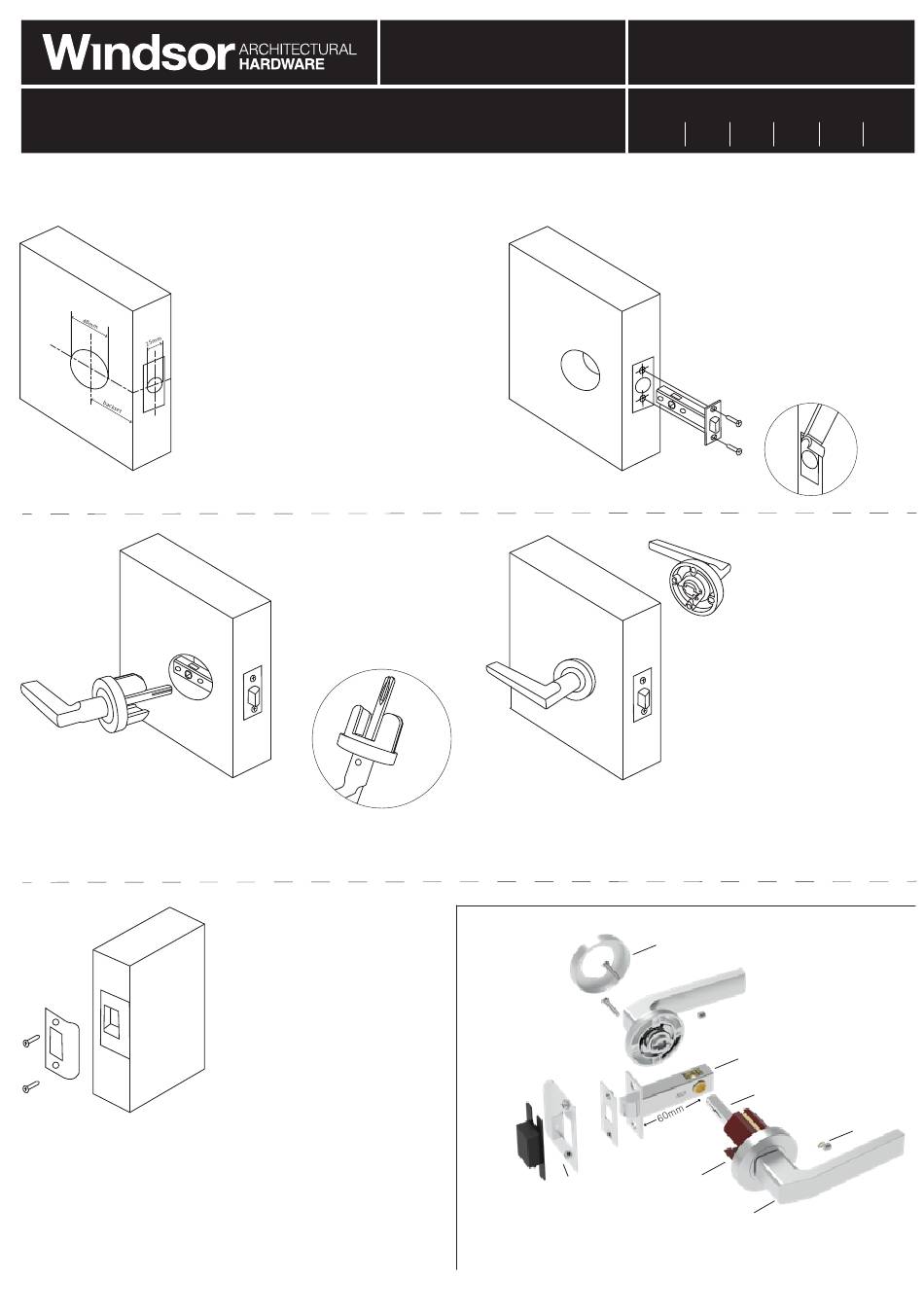

Windsor 7059 Fitting Instructions

ASTRON PASSAGE SET
To view an easy to follow how-to video for installing this product visit windsorhardware.co.nz/installation.
handle ' A '
1. Measure the door thickness and mark
the centre at the desired height for the
latch.
2. Drill a 25mm (1") diameter hole
through the door edge to a depth of
at least 90mm. Ensure this hole is
square to the door.
3. Mark the face of the door each side
for drilling a 48mm diameter hole.
The centre of the spindle hole will
need to be 60mm from the door edge
(backset). We recommend using a
48mm hole saw. For clean cut-outs,
drill from both sides, meeting in the
middle of the door.
6. Insert handle ' A ' in the 48mm
hole with the spindle and
rapidFIT® attached and
press against the door.
Ensure the grooved side of
the spindle is aligned with
the grubscrews on the
handles.
9. Close the door against the
frame and mark the latch
position for fitting of the
striker.
10. Router or chisel so the
striker fits flush, allowing
for the plastic dustbox
behind the striker.
11. Secure the striker with the
wood screws provided. Test
the door and if necessary,
adjust the striker anti-rattle
tab to take up any rattle.
FITTING INSTRUCTIONS
Striker with
dustbox
0800 607 028
sales@windsorhardware.co.nz
windsorhardware.co.nz
Product codes:
7059 7107 7422 7432 7036 7033
4. Insert the latch, scribe
around the faceplate,
remove, then chisel out
recess to enable the latch
faceplate to sit flush with
the door edge.
5. Remove any loose saw
dust, insert the latch and
secure it with the wood
screws provided.
7. Insert 'handle B' over the
spindle. Ensure the handles
handle 'B'
are straight before securing
the through fixing screws.
8. Screw the rose cover onto
the handle and tighten the
grubscrews on the side of
the levers onto the spindle
for each side of the door.
For the square rose (Astron
Elite) press on the rose
cover and tighten the
grubscrew on the side
of the rose.
Note: The grubscrews may
need a re-tighten after a
bedding-in period.
We recommend medium
strength thread-lock to be
used, Windsor code:1276
Screw-on rose
Latch
Spindle
Backset
length
rapidFIT ®
Lever
© WINDSOR ARCHITECTURAL HARDWARE
Grubscrew
Version 2
