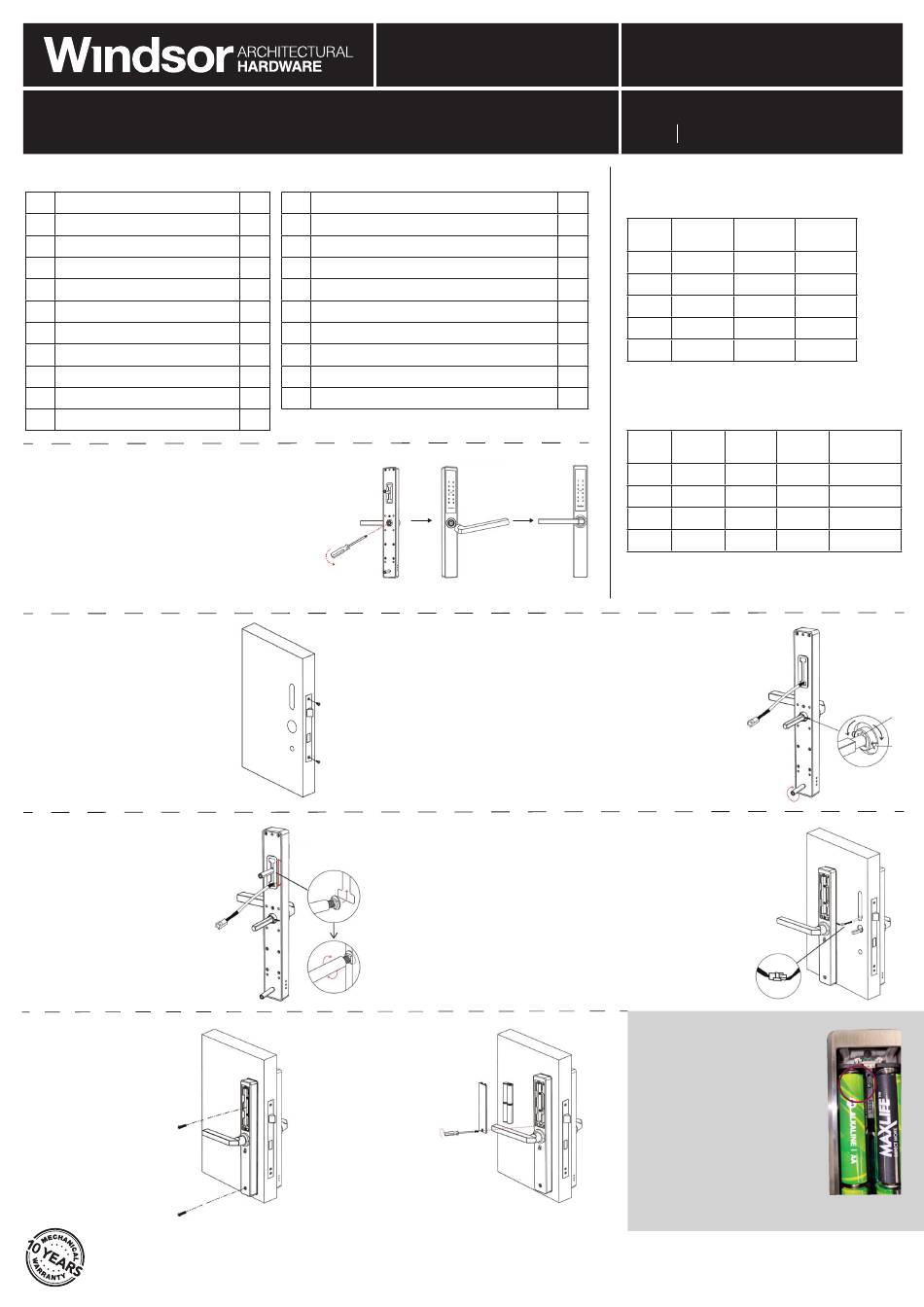

Windsor 1501 Fitting Instructions

SMART ENTRY LEVER SET
Package Contents
Part Description
A Front Panel
B Back Panel
C Mortice Lock
D Cards
E Mechanical Keys
F Waterproof Rubber Plates
G U-Clip
H Striker & Dustbox
I Sliding Threaded Sleeves 35x8mm
J Sliding Screws 16x5mm
1. Ensure the lever is handed to suit your door. To
adjust the handing, remove the Phillips screw in the
back of the handle by turning it counterclockwise.
Remove the lever and turn it around. Then insert
the screw back into the handle seat and re-tighten
by turning it clockwise*. Both front and back panels
will require this adjustment.
* Recommend using Loctite (Windsor code 1276) on
handle screws.
2. Install the mortice lock using the
cropping template provided.
5. Insert the sliding threaded
sleeve into the top shaft,
choosing the correct height
depending on the location of
the mortice hole drilling. The
sliding threaded sleeve can be
adjusted between 55mm to
100mm to the centre of the
square shaft.
8. Hold the front panel
against the door face,
sliding the spindle and
threaded sleeves
through the drilled
holes. Install the back
panel by tightening the
screws through the back
panel into the threaded
sleeves. Ensure the
panels are sitting
straight on the door.
This product is covered by a one year electronic
warranty and 10 year mechanical warranty.
FITTING INSTRUCTIONS
QTY Part Description
1 K Mortice Screws 10x5mm (for aluminium doors)
1 L Mortice Screws 25x4mm (for wooden doors)
1 M M5x30mm Screws (for door thickness 30-65mm)
3 N M5x50mm Screws (for door thickness 50-65mm)
2 O M5x70mm Screws (for door thickness 50-65mm)
2 P Spindle for door thickness 35-55mm
1 Q Spindle for door thickness 45-65mm
1 R Chuck
2 S Loctite - Threadlock (Windsor code 1276)
2
9. Insert 4 Alkaline
(AA)1.5V batteries*,
slide the battery cover
onto the interior unit
and tighten it with the
screw provided.
* Warranty void if Alkaline
batteries are not used
0800 607 028
sales@windsorhardware.co.nz
windsorhardware.co.nz
Product codes:
1501 1513
Measurements
Mortice Locks
QTY
4
Code Backset*
4
1520
1
1521
1
1522
1
1523
1
1525
1
1
1
Lever Styles
Code Body
Height*
1501
1511
1512
1513
*measurements in mm
3. Install the spindle into the back of the
lever of the front panel. Insert the split
pin and bend its front end to fix it into
the square shaft (b). Turn the spindle
and square shaft to ensure the small
arrow is pointing towards the hinges (a).
4. Fit the threaded sleeve to the bottom
spigot by turning it counterclockwise
and tighten it.
6. Fit the rubber weather seals to the
front and back panels.
7. Connect the wire through the door into
the back panel.
10. To initialise the system
open the cover plate of
the back panel, press
the 'Reset' button
pictured for 5 seconds,
then lift the lever to throw
the bolt to complete the
initialisation process.
Use this step only
when resetting the lock
to factory settings. Not
required on first setup.
© WINDSOR ARCHITECTURAL HARDWARE
Case Case
Height* Depth*
30 174 45
35 174 50
45 174 60
60 174 85
35 218 48
Body Lever Protrusion*
Width*
310 40 130 78
310 40 73 78
310 40 73 78
310 40 130 78
Version 2
a
b
