Mastervolt SmartRemote Quick Start Installation Manual

Specifications
Model: SmartRemote
Product code retail: 77010600
Product code OEM: 77010500
Dimensions: 72×72×30 mm/2.8×2.8×1.2"
Screen: 320x240 pixels,
16 bits color, 2.8"
Weight: 75 g / 0.2 lb
Operating temperature: -20 to 55°C/-4 to 131°F
Relative humidity: max. 95% non-condensing
Storage temperature: -30 to 70°C/-22 to 158°F
bus powered, 11-14V *
Power supply:
<
Power consumption: 180mW (idle mode)
Protection degree: IP20
Approvals: CE
Interfaces: MasterBus,
CZone (upcoming)
* The paired device must have MasterBus
powering set to on.

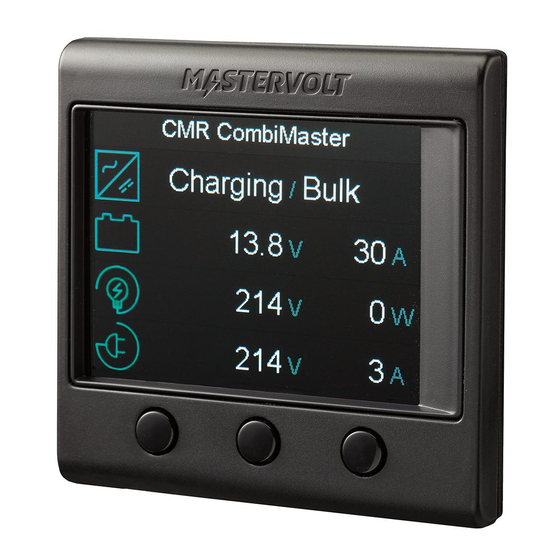

Meaning of the icons
Device state (
inverting/charging/standby
Battery voltage or charging current
Output power (AC OUT)
Shore power (AC IN)
Energy left in battery (State of Charge)
Time remaining during discharge
WARNING
If you are not knowledgeable about electrical
systems, have an electrical professional install this
unit.
CAUTION
The SmartRemote is not waterproof. Do not install
where the display is exposed to water.
Correct Disposal
Contact your local waste disposal depart-
ment to properly dispose of the unit.
)
SmartRemote
QuickStart Installation Guide
Components included
Head unit Surface
mount bezel
4 × Phillips
countersunk
self-tapping
Bayonet collar
screws (2.9×16)
Mastervolt CZone Drop Cable
*
(1m / 3.3ft)
MasterBus cable MasterBus Terminator
*
(6m / 20ft)
*
Need to be ordered separately with OEM packaging
On first use
When the SmartRemote is added to a MasterBus
network, it will scan for available supported
devices to pair with. If there is only one device, it
will automatically pair with this device. If there are
multiple devices, it will ask to select a device.
When changing the
language, be aware
that language of the
SmartRemote and
language of the
paired device are two
P1 P2 P3
separate settings!
Operation Notes
The three push buttons P1, P2 and P3 provide a
scroll and select function. Their behavior depends
on the paired device. When idle, the button menu
slides down. To get it back, press any button.
To wake up from standby mode, simultaneously
press P1 and P3 to enter the main menu. Standby
time can be changed.
How to switch an inverter e.g. on or off?
When the SmartRemote is active, press any key to
reveal the sub menu. Press P1 to switch on or off.
How to adjust the power sharing level?
When the SmartRemote is active, press any key to
reveal the sub menu. Press P2 or P3 to select the
required AC IN limit.
How to select another device?
First, unpair the currently paired device:
simultaneously press P1 and P3 to enter the main
*
menu. Scroll down to Unpair device and press the
checkmark button. Confirm the action by pressing
the checkmark button again. The SmartRemote
will scan for available devices. If there is only one
device, it will automatically pair with this device. If
there are multiple devices, it will ask to select a
device.
