Mastervolt SmartRemote Quick Start Installation Manual

Specifications

Model: SmartRemote
Product code retail: 77010600
Product code OEM: 77010500
Dimensions: 72×72×30 mm/2.8×2.8×1.2"
Screen: 320x240 pixels,
16 bits color, 2.8"
Weight: 75 g / 2.6 oz
Operating temperature: -20 to 55°C/-4 to 131°F
Relative humidity: max. 95% non-condensing
Storage temperature: -30 to 70°C/-22 to 158°F
Power supply: bus powered, 11-14V
<
Power consumption: 180mW (idle mode)
Protection degree: IP20
Approvals: CE
Interfaces: MasterBus,
CZone (upcoming)
For additional information, like supported devices,
please visit our website: www.mastervolt.com
10000015712/02
WARNING
If you are not knowledgeable about electrical
systems, have an electrical professional install this
unit.
CAUTION
The SmartRemote is not waterproof. Do not install
where the display is exposed to water.
Warranty
The Mastervolt product warranty covers the
SmartRemote for the first two years after the
purchase date.
The warranty is limited to the cost of repair and/or
replacement of the product. Costs of labor or
shipping are not covered by this warranty.
Mastervolt cannot accept liability for damage due to
the misuse of the SmartRemote.
Correct Disposal
Contact your local waste disposal depart-
ment to properly dispose of the unit.
EMEA
Snijdersbergweg 93
1105 AN AMSTERDAM
The Netherlands
+31 (0)20 34 22 100
info@mastervolt.com
NORTH AMERICA
N86 W12500 Westbrook Crossing
Menomonee Falls, WISCONSIN 53051
USA
+1 800 307 6702, Option 1
technical@marinco.com
ASIA/PACIFIC
42 Apollo Drive, Rosedale
AUCKLAND 0632
New Zealand
+ 64 9 415 7261
enquiries@bepmarine.com

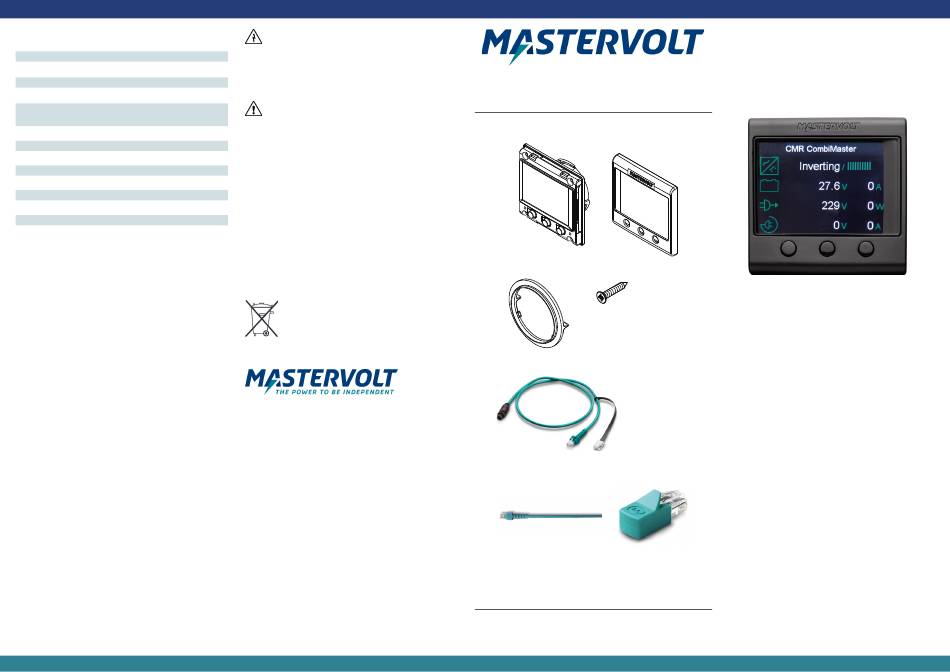

SmartRemote
QuickStart Installation Guide
Components included
Head unit Surface
mount bezel
4 × Phillips
countersunk
self-tapping
Bayonet collar
screws (2.9×16)
Mastervolt CZone Drop Cable*
(1m / 3.3ft)
MasterBus cable* MasterBus Terminator*
(6m / 20ft)
* Need to be ordered separately with OEM packaging
To download this guide in other languages,
please visit our website: www.mastervolt.com

Operation Notes

The three push buttons P1, P2 and P3 provide a
scroll and select function. Their behavior depends
on the connected device.
When multiple devices are connected, first select
the required device.
P1 P2 P3
When idle, the button menu slides down. To get it
back, press any button.
To enter the main menu, simultaneously press P1
and P3 for 5 seconds.

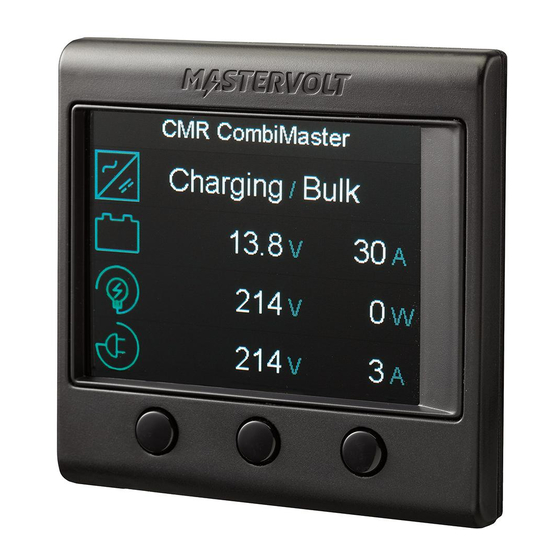

The simple and intuitive screens speak for
themselves. For example when monitoring an
inverter or charger:
Press P1 to switch the inverter on or off.
Press P2 or P3 to adjust the power sharing level.
