Summary of Contents for Ohme blink PQ 100

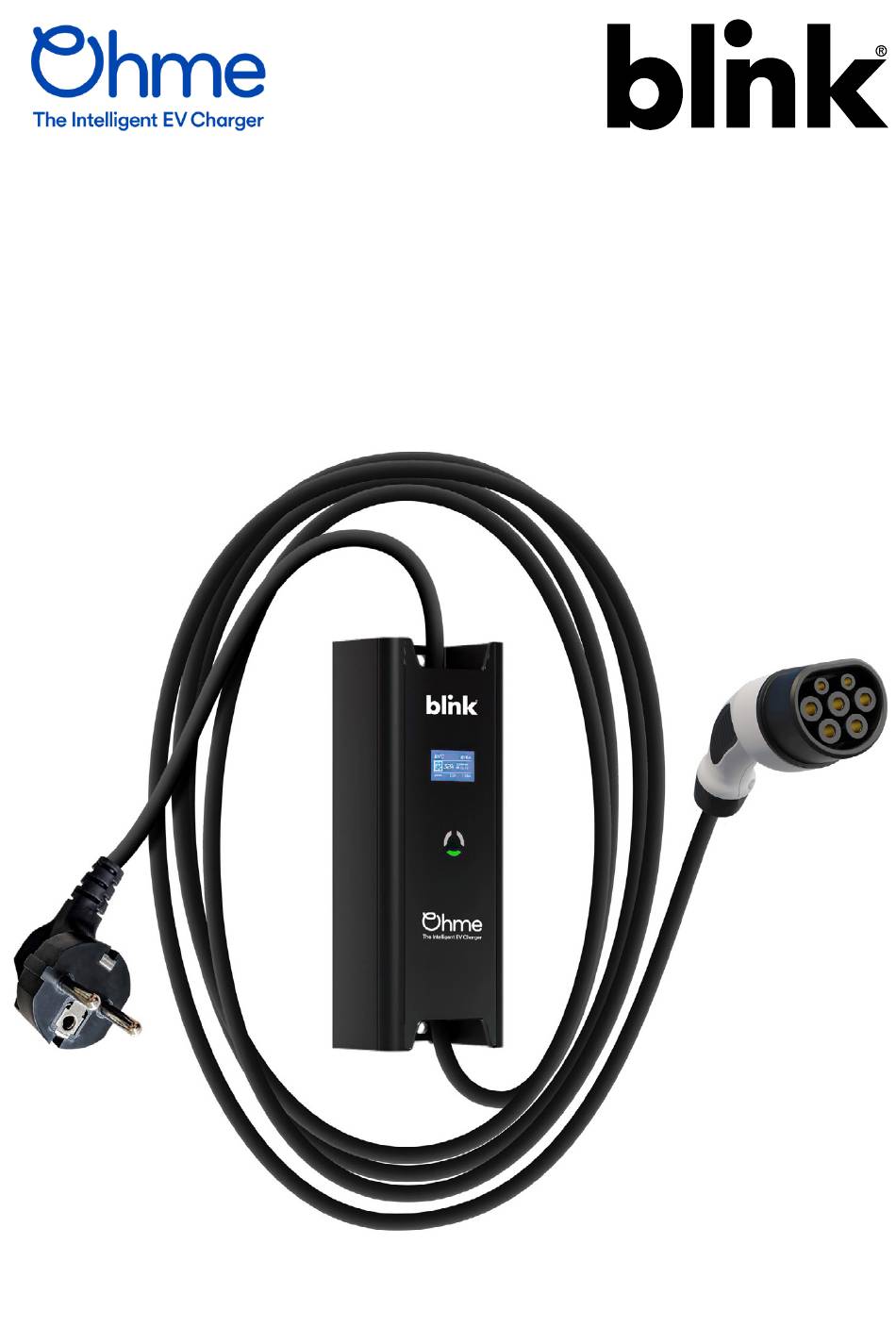

- Page 1 PRODUCT MANUAL PQ 100 Version 1.1 Blink Charging EU • +32 3 337 38 30...
- Page 2 This manual covers the following product variants: PRODUCT NUMBER PRODUCT NUMBER CONNECTOR VARIANTS CONNECTOR VARIANTS OHME0702EU001 Schuko EU plug to Type 2 Read this user manual in your prefered language: Nederlands Français...
-
Page 3: Table Of Contents
Safety Precautions This document contains important safety information relating to your PQ 100. Please Table of contents retain this document for future reference. Please read the document fully before using the PQ 100. Not following the safety in- structions can result in electric shock, fire, serious injury or death. Safety Precautions Do not use the PQ 100 with extension leads or multi-plug Product Specification... -
Page 4: Product Specification
Product Specification Do not disconnect the PQ 100 from the wall socket/power Voltage 220- 250V supply when charging. Always disconnect from the vehicle first. Frequency 50/ 60 Hz Power output Schuko: 10Amps Handle the PQ 100 with care. Do not expose any part of the Operating Temperature -25°C to 45°C cable to severe forces, impact or sharp objects... -
Page 5: Installation
Installation Indicator Lights Schuko / European Plug The PQ 100 has an LCD display and LED charge indicator lights. The Schuko version of the PQ 100 can be plugged into a standard European socket. The unit is rated at 16A and therefore it is important that the supplying circuit and socket is safe to deliver this amperage for continuous/long periods. -
Page 6: Troubleshooting
Troubleshooting Understanding the display screen ISSUE ISSUE POSSIBLE CAUSE POSSIBLE CAUSE PQ 100 does not power up Check electrical supply to the PQ 100 or separa- te chargepoint. Main Circuit Breaker or Residual Current Detection may have tripped in Electrical Cabinet. -
Page 7: Standards Compliance
During the warranty period, Blink Charging will arrange with Ohme for the refund, repair or replacement, at its discretion at no charge, products Disposing of this product correctly will help save valuable resources and prevent any... -
Page 8: Limitation Of Liability
Blink Charging will either repair the product using new or refurbished replacement parts or replace the product with new. A replacement product assumes the remaining warranty period of the original product or for 180 days from the date of the replacement or repair, whichever is longer. The warranty does not cover any issues that are caused by conditions, malfunctions, or damage not resulting from defects in materials or workmanship. - Page 9 Read this user manual in your prefered language: Nederlands Français...
