PHYWE 13830-00 Operating Instructions Manual

Demo multimeter adm 3 light: current, voltage

Advertisement

Quick Links

PHYWE Systeme GmbH & Co. KG
Robert-Bosch-Breite 10
37079 Göttingen
Germany
Telefon
+49 (0) 551 604–0
Fax
+49 (0) 551 604–107
E-mail
info@phywe.de
Internet
www.phywe.com
TABLE OF CONTENTS
1

SAFETY PRECAUTIONS


2

3

4
OPERATING INSTRUCTIONS

5


6

7

8

9


10

11


12


13


14

www.phywe.com, © All rights reserved
PHYWE Demo multimeter ADM 3 light:

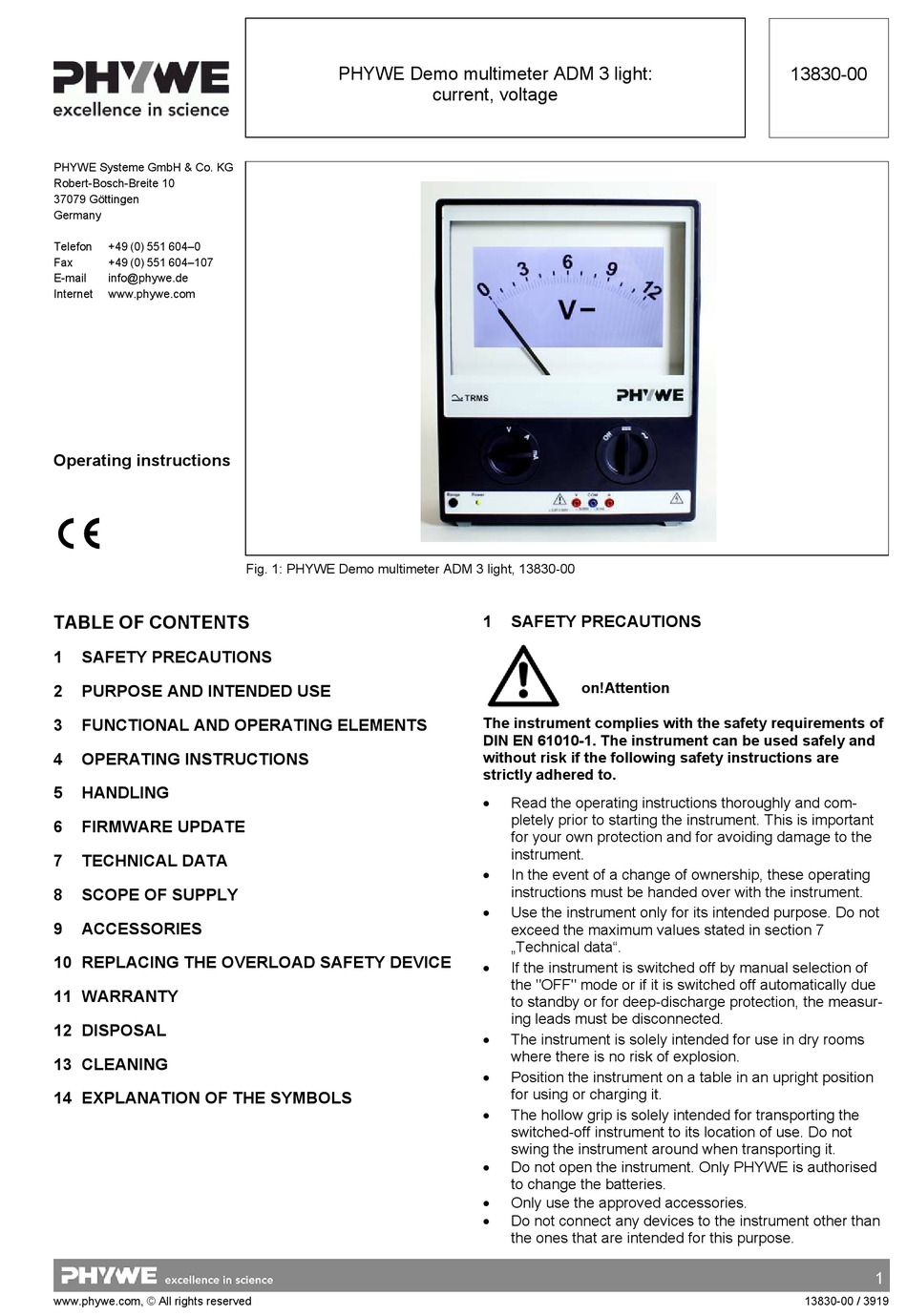

Fig. 1: PHYWE Demo multimeter ADM 3 light, 13830-00







current, voltage
1
SAFETY PRECAUTIONS
on!Attention
The instrument complies with the safety requirements of

DIN EN 61010-1. The instrument can be used safely and
without risk if the following safety instructions are
strictly adhered to.
Read the operating instructions thoroughly and com-
pletely prior to starting the instrument. This is important
for your own protection and for avoiding damage to the
instrument.
In the event of a change of ownership, these operating
instructions must be handed over with the instrument.
Use the instrument only for its intended purpose. Do not
exceed the maximum values stated in section 7
„Technical data".

If the instrument is switched off by manual selection of
the "OFF" mode or if it is switched off automatically due
to standby or for deep-discharge protection, the measur-
ing leads must be disconnected.
The instrument is solely intended for use in dry rooms
where there is no risk of explosion.
Position the instrument on a table in an upright position
for using or charging it.
The hollow grip is solely intended for transporting the
switched-off instrument to its location of use. Do not
swing the instrument around when transporting it.
Do not open the instrument. Only PHYWE is authorised
to change the batteries.
Only use the approved accessories.
Do not connect any devices to the instrument other than
the ones that are intended for this purpose.
13830-00
1
13830-00 / 3919

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 13830-00 and is the answer not in the manual?

Questions and answers

Summary of Contents for PHYWE 13830-00

  • Page 1 37079 Göttingen Germany Telefon +49 (0) 551 604–0 +49 (0) 551 604–107 E-mail info@phywe.de Internet www.phywe.com Operating instructions Fig. 1: PHYWE Demo multimeter ADM 3 light, 13830-00 TABLE OF CONTENTS SAFETY PRECAUTIONS SAFETY PRECAUTIONS     on!Attention PURPOSE AND INTENDED USE     The instrument complies with the safety requirements of FUNCTIONAL AND OPERATING ELEMENTS  ...
  • Page 2 “Range” scale button PURPOSE AND INTENDED USE for selecting scales and digital display. The PHYWE Demo multimeter ADM 3 light is a modern, uni- versal multi-range meter that has been specifically developed “Power” LED for teaching purposes. The integrated measuring amplifier...
  • Page 3 3.2 Back Fig. 4: Functional elements below the cover 14 USB port for connecting a PC for a firmware update with the PHYWE ADM 3 Update Program. (see section 6.2 „Firmware update“) OPERATING INSTRUCTIONS The instrument fulfils the technical requirements that are Fig.
  • Page 4 (4) or a new operating mode (5). See also The instrument can be charged for as long as desired. Once section 5.2 “Buzzer”. the battery is fully charged, the charge will be maintained. www.phywe.com, © All rights reserved 13830-00 / 3919...
  • Page 5 A defective fuse can be recognised by the fact that no values are displayed for any of the current meas- uring ranges. In this case, the fuse must be replaced (see also section 10 ). www.phywe.com, © All rights reserved 13830-00 / 3919...
  • Page 6 PC is accessible. by PHYWE. The firmware and the scales can be updated with the aid of 6.1 Removing the cover the PHYWE ADM 3 Update Program. Available updates can be found at: www.phywe.de >> Downloads >> Softwaredownload Attenti-...
  • Page 7 Should this fuse blow when the instrument is switched on, never replace it with a more resistant fuse! A defect is indi- Dimensions (mm) 380 x 314 x 120 cated and the instrument must be returned to the PHYWE Weight 4,4 kg service department for repair.
  • Page 8 Important information about the device Compliance with the operating instruc- tions is required Direct current and alternating current Continuous double insulation TRMS True root mean square Measuring category II CAT II (see chapter 2) www.phywe.com, © All rights reserved 13830-00 / 3919...
