Operating instructions
TABLE OF CONTENTS
1 SAFETY PRECAUTIONS
2 PURPOSE AND INTENDED USE
3 FUNCTIONAL AND OPERATING ELEMENTS
4 OPERATING INSTRUCTIONS
5 HANDLING
6 DISPLAY-CONNECT AND FIRMWARE UPDATE
7 TECHNICAL DATA
8 SCOPE OF SUPPLY
9 ACCESSORIES
10 REPLACING THE OVERLOAD SAFETY DEVICE
11 WARRANTY
12 DISPOSAL
13 CLEANING
14 EXPLANATION OF THE SYMBOLS
www.phywe.com, © All rights reserved
PHYWE Demo multimeter ADM 3:
current, voltage, resistance, temperature

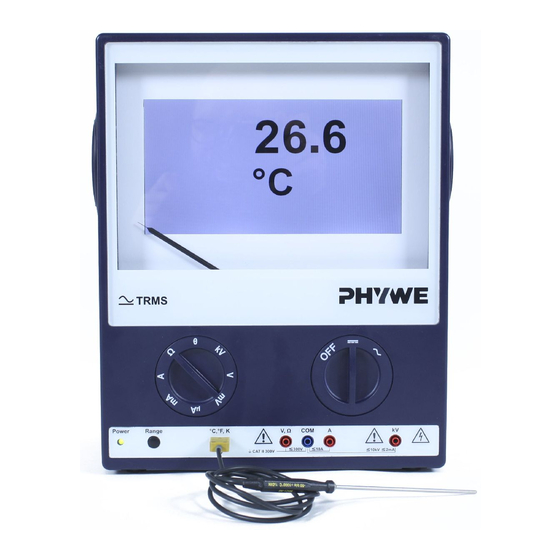

Fig. 1: PHYWE Demo multimeter ADM 3, 13840-00
1 SAFETY PRECAUTIONS
Attention!
The instrument complies with the safety requirements of
DIN EN 61010-1. The instrument can be used safely and
without risk if the following safety instructions are
strictly adhered to.

Read the operating instructions thoroughly and com-
pletely prior to starting the instrument. This is important
for your own protection and for avoiding damage to the
instrument.

In the event of a change of ownership, these operating
instructions must be handed over with the instrument.

Use the instrument only for its intended purpose. Do not
exceed the maximum values stated in section 7
„Technical data".

If the instrument is switched off by manual selection of
the "OFF" mode or if it is switched off automatically due
to standby or for deep-discharge protection, the measur-
ing leads must be disconnected.

The instrument is solely intended for use in dry rooms
where there is no risk of explosion.

Position the instrument on a table in an upright position
for using or charging it.

The handle is solely intended for transporting the
switched-off instrument to its location of use. Do not
swing the instrument around when transporting it.

Do not open the instrument. Only PHYWE is authorised
to change the batteries.

Only use the approved accessories.

Do not connect any devices to the instrument other than
the ones that are intended for this purpose.
