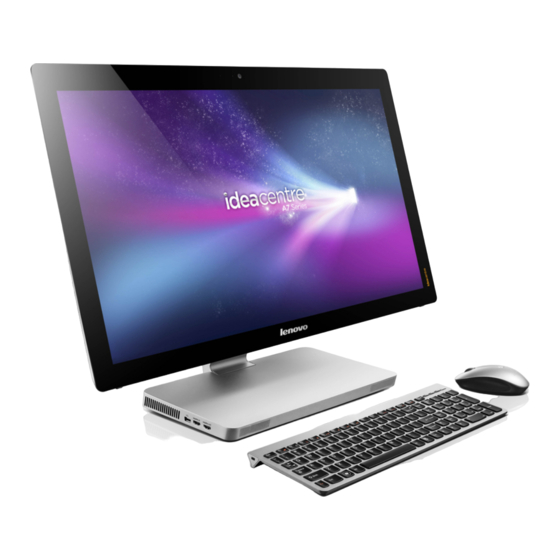

Lenovo IdeaCentre A720 User Manual
Hide thumbs
Also See for IdeaCentre A720:
- Hardware maintenance manual (75 pages) ,
- Safety and warranty manual (47 pages) ,
- User manual (41 pages)
Subscribe to Our Youtube Channel
Related Manuals for Lenovo IdeaCentre A720
Summary of Contents for Lenovo IdeaCentre A720
-

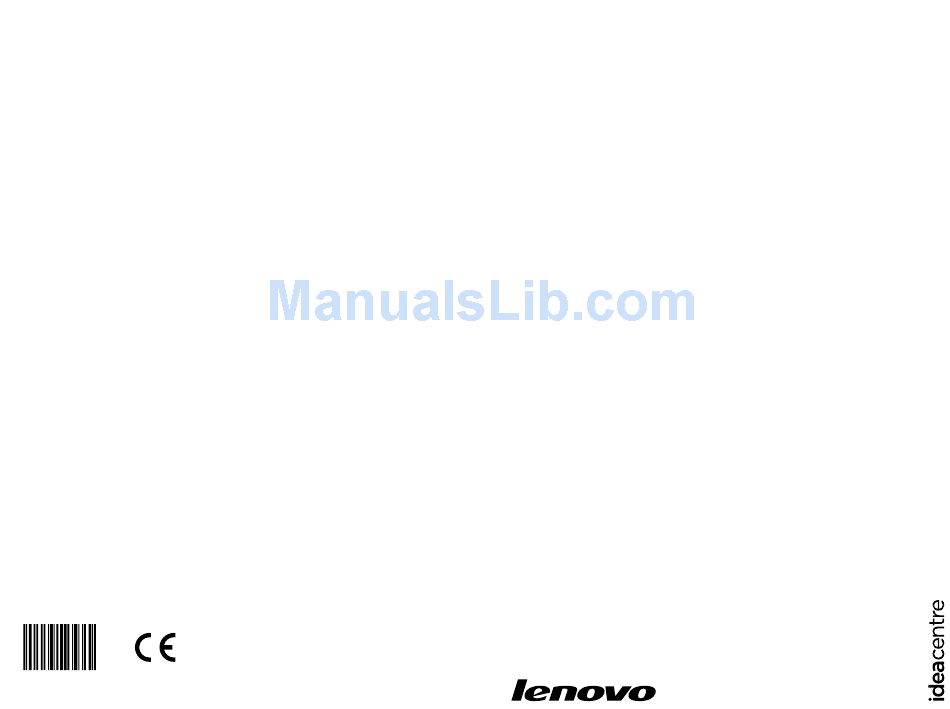

Page 1: User Guide
Machine type: 10096/2564 Version 1.0 2012.02 31501458 Lenovo IdeaCentre A7 Series User Guide... -
Page 2: Important Safety Information
Attention: Be aware of possible damage to programs, devices, or data. Note: Pay attention to this important information. © Copyright Lenovo 2012. All rights reserved. LIMITED AND RESTRICTED RIGHTS NOTICE: If data or software is delivered pursuant a General Services Administration “GSA” contract, use, reproduction, or disclosure is subject to restrictions set forth in Contract No. -
Page 4: Table Of Contents
Contents Important Safety Information Chapter 1 Using the Computer Hardware ... 1 1.1 Front view of the computer ...2 1.2 Left and right view of the computer ...3 1.3 B-CAS card installation (Japan models only) ...4 1.4 Rear view of the computer ...5 1.5 Computer stand ...6 1.6 Connecting your computer ...7 1.7 Important information about using the computer ...9... - Page 5 4.5 Troubleshooting Problems with Optical Drives and Hard Disks ...30 4.6 Special considerations for troubleshooting Windows ...31 4.7 Performing Daily Maintenance Tasks ...32 Energy Star Statement ...33 Contents...
-
Page 6: Chapter 1 Using The Computer Hardware
Using the Computer Hardware Chapter This chapter contains the following topics: Introduction to the computer hardware Ø Information on computer connections Ø Note: The descriptions in this chapter might be different from what you see on your computer, depending on the computer models and configurations. -
Page 7: Front View Of The Computer
1.1 Front view of the computer Attention: Be careful not to block any air vents on the computer. Blocked air vents can cause overheating. Built-in microphone Power indicator Bluetooth status indicator HDMI-in indicator Monitor On/Off Novo Vision button Volume up Brightness up User Guide Built-in camera... -
Page 8: Left And Right View Of The Computer
1.2 Left and right view of the computer Air vents USB 3.0 connector HDMI-in connector (selected models only) HDMI-out connector Eject button Optical drive B-CAS card slot (Japan models only) Memory card reader Power button Anti-scratch protector Attention: Do not insert 3-inch discs into the optical drive. User Guide... -
Page 9: B-Cas Card Installation (Japan Models Only)
1.3 B-CAS card installation (Japan models only) User Guide... -
Page 10: Rear View Of The Computer
1.4 Rear view of the computer TV tuner connector (selected models only, 2 connectors for Japan) Headphone connector Microphone connector USB 3.0 connector USB 2.0 connectors (2) Power connector Ethernet connector Security cable slot User Guide... -
Page 11: Computer Stand
1.5 Computer stand Use the stand to position the display to your preference. It can be rotated 5° forward and 90° backward. Attention: Ensure the anti-scratch protector is always on the hinge bar when using the computer in a horizontal position. User Guide... -
Page 12: Connecting Your Computer
1.6 Connecting your computer Note: Your computer may not have all of the connectors described in this section. 1.6.1 Basic connector instructions Connector Microphone Headphone USB connector Ethernet connector HDMI connector (optional) TV-Tuner connector (optional) Note: If your computer is equipped with a wireless keyboard or mouse, follow the installation instructions for those devices. - Page 13 1.6.2 Connecting the power cord User Guide...
-
Page 14: Important Information About Using The Computer
1.7 Important information about using the computer Press the power button on the side of the computer to turn on the computer. Note: The buttons at the bottom of the screen are touch buttons. Touching them turns on the indicator lights. User Guide... - Page 15 Hold the computer tightly when you carry it. Attention: Do not place your computer face-down as shown below. User Guide...
-
Page 16: Chapter 2 Touch Screen Instructions
Touch screen instructions Chapter This chapter contains the following topics: Touch Screen Calibration Ø User Gesture Instructions for the Touch screen Ø Attentions when using the Touch Screen Ø User Guide... -
Page 17: Touch Screen Calibration
The monitor is touch-sensitive thanks to its touch-sensitive screen. A touch screen is an input device just like a mouse or a keyboard, and the user’s fingers transmit position information via the touch screen to the computer. With this technology, you only need to touch the pictures or words on the computer display lightly with your finger, and the computer will react. - Page 18 2. Single Finger Right Click For the item selected on the touch screen, press and hold your finger on the screen until a circle appears. After lifting your finger from the touch screen, a menu bar will pop up, completing the single finger right click operation. This is similar to the action performed by clicking the mouse right button.
- Page 19 3. Double Finger Right Click First touch a finger to the screen to select the desired item and hold it there, then touch another finger anywhere nearby on the screen and quickly lift it up again, to complete a double finger right click operation. The area where the first finger is placed can be used to show the right-click menu or perform related operations.
- Page 20 5. High Speed Slide If you touch the screen with a single finger and slide it a short distance horizontally (about 5 cm), then quickly lift it up again, this is called a High Speed Slide, and the screen will show the “Forward” or “Back” icon. In the default situation, a high speed horizontal sliding movement will execute a forward or back operation.
- Page 21 7. Zoom Operation Touch two fingers lightly on the desired item on the touch screen, then keeping both fingers on the screen, change the distance between them. By increasing (or decreasing) the distance, you can perform a zoom out (or zoom in) operation. For example: you can enlarge or reduce the picture size in Windows Photo Viewer.
-
Page 22: Related Touch Screen Settings
2.2.2 Related Touch Screen Settings 1. Flicks: In the notification area of the taskbar at the bottom of the screen, click on the Flicks icon, and the current Flicks window will appear. Click once anywhere in this window to enter Flicks Training. The user can perform operations according to the advice given on screen. - Page 23 2. For more detailed configuration, you can click on the Flicks icon in the notification area of the taskbar at the bottom of the screen, then click on “Customize your flicks setting” in the Flicks pop-up window. In the “Pen and Touch”...
- Page 24 On the Touch menu you can: • Enable / disable options such as “Use your finger as an input device” and “Enable multi-touch gestures and inking”. • Select touch actions which you wish to adjust. By clicking on “Settings”, you can adjust the “Speed”...
-
Page 25: Precautions When Using The Touch Screen
2.3 Precautions when using the Touch Screen 1. When using the touch screen, be careful not to tear the surface with any sharp objects. 2. To ensure normal use of the touch screen, ensure that both the screen surface and your fingers are clean and dry. 3. - Page 26 7. The touch screen does not function in Rescue System mode. 8. The touch screen also does not function during the startup process, in Hibernate mode and in Sleep mode or Safe mode. User Guide...
- Page 27 User Guide...
-
Page 28: Chapter 3 Using The Rescue System
Using the Rescue System Chapter This chapter contains the following topics: OneKey Recovery Ø Driver and Application Installation Ø System Setup Ø System Backup Ø System Recovery Ø Create Recovery Disc Ø Attention: Using this program will result in loss of data. •... -
Page 29: Onekey Recovery
3.2 Driver and Application Installation The Driver and Application Installation function in the rescue system provides a way for the user to conveniently reinstall all of the Lenovo applications and drivers that were shipped with your Lenovo hardware. User Guide... -
Page 30: System Setup
The system will restart. After the system has restarted, the installation process will continue until it has completed. Method 2: Manual Installation In the Windows system, Click Start → All Programs → Lenovo → Lenovo Drivers and Application Installation. After starting the procedure, install all the drivers and software manually by following the prompts. -
Page 31: System Backup
This backs up your system partition to an image file. In case of a system failure, you can restore your system from this image file. In the Windows system, click Start → All Programs → Lenovo → Lenovo Rescue System. -
Page 32: Chapter 4 Troubleshooting And Confirming Setup
Troubleshooting and Chapter Confirming Setup This chapter contains the following topic: Troubleshooting and Problem Resolution Ø Note: The description of the TV tuner card in this manual is only applicable to machines which have the TV tuner card. It does not apply to machines that do not have a TV tuner card. -
Page 33: Solving Problems
Check that the LCD screen has been turned on; If not, press the LCD On/Off button to turn on the LCD. If still cannot solve the problem, contact Lenovo Customer Service. Problem: You need to change the display property settings. -
Page 34: Troubleshooting Touch Screen
4.2 Troubleshooting Touch screen Problem: The touch screen reacts, but not where you are touching it. Troubleshooting and problem resolution: Touch Screen Calibration: 1. In Windows 7, Select “Start” – “Control Panel”. 2. In Control Panel, select “Hardware and Sound”. 3. -
Page 35: Troubleshooting Problems With Optical Drives And Hard
1. Check to determine if there is an optical drive icon in the resource manager of the operating system. If not, restart your computer. If there is still no icon, contact Lenovo Service. Otherwise, continue with the next step of this procedure. -
Page 36: Special Considerations For Troubleshooting Windows
1. Record the serial number of the computer as it may be useful later when troubleshooting system problems. The serial number was shipped with the computer and provided by Lenovo. The Help Center is unable to retrieve this number. 2. The drivers for this computer model only support the Windows 7 system. -
Page 37: Performing Daily Maintenance Tasks
b. When you change your TV signal from analog to digital, your saved channel list for analog TV is deleted. When you want to watch analog TV again, you must create and save a new channel list. • You must set the TV tuner input signal to analog before you can watch Teletext programming. -
Page 38: Energy Star Statement
For more information about ENERGY STAR, go to: http://www.energystar.gov Lenovo encourages you to make efficient use of energy an integral part of your day-to-day operations. To help in this endeavor, Lenovo has preset the following... - Page 39 To awaken your computer from a Sleep or System Standby mode, press any key on your keyboard. For more information about these settings, refer to your Windows Help and Support information system. User Guide...
