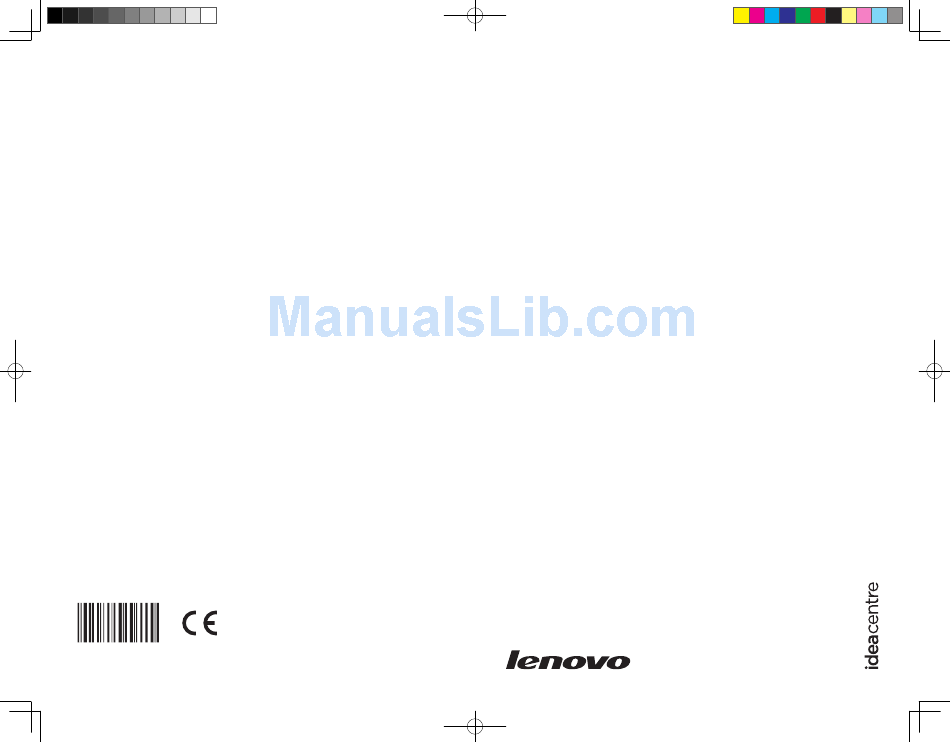

Page 1: User Guide
Machine type: 10056 Version 2.0 2010.5 31044343 31044343_A3_UG_FM_EN_V2.0.indd 1 Lenovo IdeaCentre A3 Series User Guide 2010.4.30 5:01:04 PM... -
Page 2: Important Safety Information
Danger: Be aware of extremely hazardous or lethal situations. Attention: Be aware of possible damage to programs, devices, or data. Note: Pay attention to this important information. © Copyright Lenovo 2009. 31044343_A3_UG_EN_V2.0.indd 1 2010.5.20 10:59:13 AM... - Page 3 31044343_A3_UG_EN_V2.0.indd 2 2010.5.20 10:59:13 AM...
-
Page 4: Table Of Contents
Contents Important Safety Information Chapter 1 Using the Computer Hardware ... 1 1.1 Front view of the computer ...2 1.2 Rear view of the computer ...3 1.3 Computer stand ...4 1.4 Connecting your computer ...5 1.5 Important information about using the computer ...9 1.6 Wireless keyboard and mouse instructions ...12 1.7 Using the Infra-red (IR) Remote Control ...14 Chapter 2 Using the Rescue System ... - Page 5 4.2 Troubleshooting Audio Problems ...27 4.3 Troubleshooting Software Problems...27 4.4 Troubleshooting Problems with Optical Drives and Hard Disks ...28 4.5 Special considerations for troubleshooting Windows ...29 Contents 31044343_A3_UG_EN_V2.0.indd 2 2010.5.20 10:59:13 AM...
-
Page 6: Chapter 1 Using The Computer Hardware
Using the Computer Hardware Chapter This chapter contains the following topics: Computer hardware introduction ÿ Information on computer connections ÿ Note: The descriptions in this chapter might vary from your computer, depending on computer models and configurations. 31044343_A3_UG_EN_V2.0.indd 1 User Guide 2010.5.20 10:59:14 AM... -
Page 7: Front View Of The Computer
1.1 Front view of the computer Attention: Be sure not to block any air vents on the computer. Blocked air vents may cause thermal problems. Camera Built-in microphone Hard Disk Drive Indicator Bluetooth status indicator WIFI status indicator Menu/OK button Direction buttons User Guide 31044343_A3_UG_EN_V2.0.indd 2 2010.5.20 10:59:15 AM... -
Page 8: Rear View Of The Computer
1.2 Rear view of the computer 2 3 4 5 9 10 Power button TV tuner connector (Selected models only) Power connector Ethernet connector HDMI-OUT connector (Selected models only) HDMI-IN connector (Selected models only) USB ports (4) Memory card reader (Selected models only) Microphone connector Headphone connector User Guide... -
Page 9: Computer Stand
Bluetooth connect button Mode switch button (Selected models only) 1.3 Computer stand Adjust the angle for the best viewing experience. It can be rotated from horizontal or vertical. The stand provides stability to the computer; it is not a removable part. Attention: The computer stand must remain installed at all times to ensure maximum system stability. -
Page 10: Connecting Your Computer
Adjust the panel angle for the best viewing from the horizontal. Do not only use one hand to adjust the panel angle to avoid the computer falling over. 1.4 Connecting your computer Use the following information to connect your computer: •... - Page 11 1.4.3 Connect the mouse cable to the appropriate mouse connector (USB connector). 1.4.4 If you have audio devices, attach them using the following instructions: Microphone Use this connector to attach a microphone (purchased separately) to your computer when you want to record sound or if you use speech-recognition software.
-
Page 12: If You Have Powered Speakers Without An Adapter
a. Connect the cable that runs between the speakers if necessary. On some speakers, this cable is permanently attached. b. Connect the adapter cable to the speaker if necessary. On some speakers, this cable is permanently attached. c. Connect the speakers to the Headphone port on the computer. d. - Page 13 1.4.7 Connect any additional devices that you have. Your computer might not have all connectors shown. Use this connector to attach a device that requires a USB connector USB connection. Use this connector to attach the computer to an Network adapter connector ethernet-type local area network TV-Tuner...
-
Page 14: Important Information About Using The Computer
1.4.9 Your computer is equipped with a Memory Card Reader Connector, it is able to read/write data from: Secure Digital (SD) Memory Card Mini SD MultiMedia Card (MMC) RS-MMC MS-PRO MS-Duo 1.5 Important information about using the computer Press the power button on the top of the base stand to turn the computer on. 31044343_A3_UG_EN_V2.0.indd 9 User Guide 2010.5.20 10:59:25 AM... - Page 15 Note: Do not put any fluid container on the base stand. Note: The buttons at the bottom of the screen are touch buttons. When you touch these, the indicator lights turn on. User Guide 31044343_A3_UG_EN_V2.0.indd 10 2010.5.20 10:59:26 AM...
- Page 16 Hold the computer tightly when you carry it. User Guide 31044343_A3_UG_EN_V2.0.indd 11 2010.5.20 10:59:27 AM...
-
Page 17: Wireless Keyboard And Mouse Instructions
User Guide 31044343_A3_UG_EN_V2.0.indd 12 After entering Windows, press this key to launch the LVT (Lenovo Vantage Technology) program, Lenovo’s pre-loaded Home PC software. In addition to its own functions, the LVT program will allow you to start other Windows compatible software, specially configured to run on this model of computer. - Page 18 → Control Panel → Hardware and Sound. Press Add a device to pop-up a dialog box. 5. Select the Lenovo Bluetooth Mouse and click Next to establish the bluetooth connection. 6. Select the Lenovo Bluetooth keyboard and click Next. (Press Add a device icon if the dialog box is closed and press the connect button again.)
-
Page 19: Using The Infra-Red (Ir) Remote Control
1.7 Using the Infra-red (IR) Remote Control (Only some models are equipped with IR remote control.) The IR remote control (only shipped with some types of computers) works with the appendant remote control receiver. User Guide 31044343_A3_UG_EN_V2.0.indd 14 2010.5.20 10:59:30 AM... - Page 20 Buttons on the remote control: Button 31044343_A3_UG_EN_V2.0.indd 15 CLEAR ENTER Description Power On Power Off Record User Guide 2010.5.20 10:59:31 AM...
- Page 21 CLEAR ENTER User Guide 31044343_A3_UG_EN_V2.0.indd 16 Pause Stop Rewind Fast Forward Play Replay Skip Back More Start Windows Media Center Down Left Right Vol Up, Vol Down Mute Ch/Pg Up,Down Digit keys * key # key Clear Teletext On/Off (Selected models only) Guide (This function is not available in Microsoft Windows operating systems.) Enter...
-
Page 22: Chapter 2 Using The Rescue System
Using the Rescue System Chapter This chapter contains the following topics: ÿ OneKey Recovery ÿ Driver and Application Installation ÿ System Setup ÿ System Backup ÿ System Recovery ÿ Create Recovery Disc Attention: Using this program will result in a loss of data. • You can recover the C drive of the computer to the factory default settings or to the last system backup status using OneKey... -
Page 23: Onekey Recovery
Detailed Operation Procedure 1. Turn on the computer. When the Lenovo logo appears, press the F2 key on the keyboard to start the Rescue System, then you can select OneKey Recovery. -
Page 24: System Setup
Method 1: Automatic Installation Turn on the computer. When the Lenovo logo appears, press the F2 key on the keyboard to start the Rescue System, then select Drivers and Application Installation. Follow the screen prompts to install the Lenovo Drivers and Application Installation. -
Page 25: System Backup
Back up your system partition to an image file. In case of a system failure, you can restore your system from this image file. In the Windows system, click Start → All Programs → Lenovo → Lenovo Rescue System. After starting the procedure, click System Backup to back up your system partition according to the prompts. -
Page 26: Chapter 3 System Maintenance And Recovery
System Maintenance and Chapter Recovery This chapter contains the following topics: ÿ Daily Maintenance and Tools Instructions 31044343_A3_UG_EN_V2.0.indd 21 User Guide 2010.5.20 10:59:37 AM... -
Page 27: Restoring The System
3.1 Restoring the System The system can develop problems due to erroneous operation or the installation of additional software. If software problems develop in the originally installed software, you can restore the system by using system backup and restoration features. Note: The existing system settings will change after restoration. Check the settings of the restored system to ensure they match settings that may be critical to your needs. -
Page 28: Checking For, And Correcting Disk Errors
3.4 Checking For, and Correcting Disk Errors To properly maintain your system, you should periodically check for and fix hard disk errors by doing the following: 1. Right-click the icon for the hard disk drive (HDD) that you want to reorganize, then select Properties from the pop-up menu. - Page 29 Note: To avoid damaging the computer or display, do not spray cleaning solution directly onto the display. Only use products specifically designed for cleaning displays, and follow the instructions that are included with the product. The following are general methods for cleaning the components: • You can use a soft cloth to remove dust on the surface of the computer, the monitor, the printer, the speakers and the mouse. • You can use a vacuum cleaner to clean in otherwise inaccessible corners. •...
-
Page 30: Chapter 4 Troubleshooting And Confirming Setup
Troubleshooting and Confirming Chapter Setup This chapter contains the following topics: Troubleshooting and Problem Resolution ÿ Note: The description of the TV-Tuner card in this manual is only used for the machines which have the TV-Tuner card. It does not apply to those machines that do not have a TV-Tuner card. 31044343_A3_UG_EN_V2.0.indd 25 User Guide 2010.5.20 10:59:39 AM... -
Page 31: Troubleshooting Display Problems
Check that the LCD screen has been turned on; If not, press the LCD On/Off button to turn on the LCD. If still cannot solve the problem, contact to Lenovo Customer Service. Problem: You need to change display property settings. -
Page 32: Troubleshooting Audio Problems
UPSs, regulators, fluorescent lamps or other computers that may be generating magnetic interference. 2. Move any interfering devices away from the computer. 3. If the problem persists, consult with Lenovo Service. 4.2 Troubleshooting Audio Problems Problem: No sound from integrated speakers Troubleshooting and problem resolution: •... -
Page 33: Troubleshooting Problems With Optical Drives And
1. Check to determine if there is an optical drive icon in the resource manager of the operating system. If not, restart your computer. If there is still no icon, contact Lenovo Service. Otherwise, continue with the next step of this procedure. -
Page 34: Special Considerations For Troubleshooting Windows
Problem: The capacity of the hard disk, as indicated by the system, is less than the nominal capacity. Troubleshooting and problem resolution: For computers equipped with the OneKey Recovery feature, the system recovery feature needs to occupy some hard disk space. This may account for the apparent hard disk capacity deficit. Further Technical Explanation: The nominal capacity of the hard disk is expressed in the decimal system, 1000 bytes. - Page 35 again, you must create and save a new channel list. • Before you can watch teletext programming, you must set the TV tuner input signal to analog. User Guide 31044343_A3_UG_EN_V2.0.indd 30 2010.5.20 10:59:40 AM...
