If damage is found the carrier observe all safety precautions. should be notified at once. Shipping - Make sure you have completed safety damage is not covered by the Enerpac induction training, specific to the work warranty. surroundings. The operator should be...
Page 5
Never operate - Always use Enerpac pumps and the tool at above 75 percent of tool hoses. maximum torque when loosening a - Make sure appropriate guards are nut or bolt (see section 4.3.2).

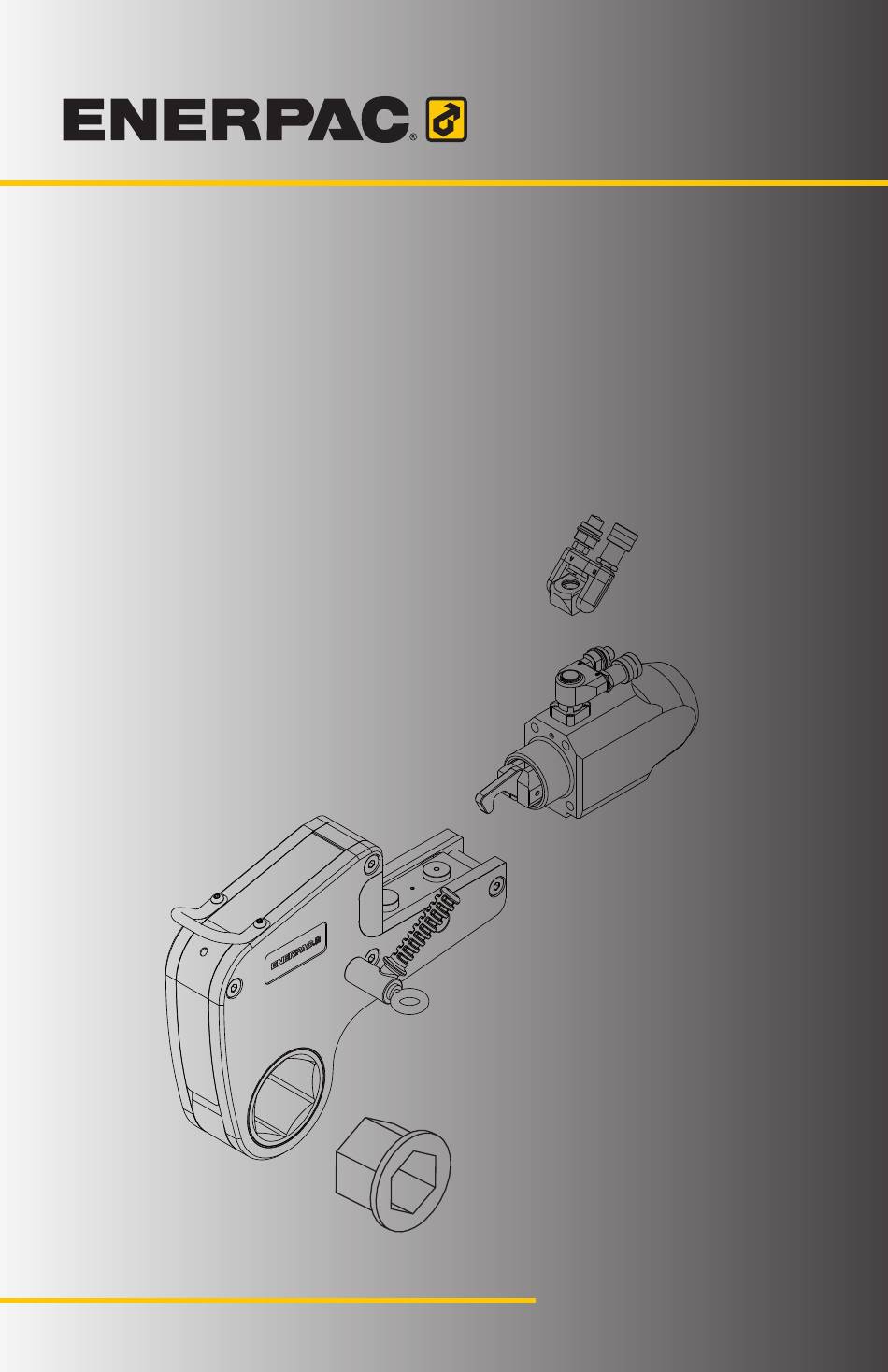

3 Assembly and adjustments Overview and features (fig. A or B) Hexagon ratchet Cassette 3A Swivel coupling or 3B TSP-Pro swivel coupling (optional) Advance hose connection Return hose connection Hydraulic drive unit Cassette release lever Reaction foot To attach the positioning handle Fig.
Page 7
Make sure the quick connect couplings are securely attached before operating the tool. Fig. D The tool is fitted with male and female quick-connect couplings. Use Enerpac twin safety hoses only. Refer to the table below: Enerpac hose Description model number...
Fig. G abutment surface. Ensure that the spanner is secured. - Contact Enerpac if a suitable reaction point is not available. To set the torque Adjust the pressure on the pump as necessary to set the torque.
Page 9
4.3.2 To loosen a nut or bolt (fig. I & J) • Apply penetrating oil to the threads. Allow the oil to soak. • Position the tool on the nut or bolt with the anti-clockwise (-) side facing upwards. • Position the reaction foot (17) against a suitable reaction point (18).
• Check tightness of swivel post maintenance must be carried out retaining screws (see 5.2.1) and by an approved and authorized gland. technician appointed by Enerpac. • Pressurize the drive unit to maximum Recommended service intervals pressure (Advance and Retract), and are: check for any signs of leakage.
Page 11
Full maintenance • Reverse the procedure to reassemble • Pressurize the assembled drive 5.2.1 The hydraulic drive unit unit to max pressure (Advance and • Remove the circlip from the swivel Retract), and check for any signs of coupling. leakage. •...
Page 12
• As a check, refer to figure M and the tables below for the correct height of the fail safe pin (Y). Fail Safe Pin Height - W22000 Series (fig. M, dimension “Y”) Metric Imperial 7,5 mm 0.296 inch Fail Safe Pin Height - W35000 Series (fig.
Weight of Drive Unit kg (lbs) 7,7 (16.98) * Important: Hexagon reducer inserts (if used) must meet minimum wall thickness requirements. Refer to Section 6.2 for additional information. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
Page 14
W22205 - W22404 9,2 mm W22405 - W22506 7,75 mm Important: If wall thickness is less than shown in the table above, the insert may experience reduced component life. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
Page 15
W22205 - W22404 0.36 inch W22405 - W22506 0.31 inch Important: If wall thickness is less than shown in the table above, the insert may experience reduced component life. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
Weight of Drive Unit kg (lbs) 12 (26.4) * Important: Hexagon reducer inserts (if used) must meet minimum wall thickness requirements. Refer to Section 7.2 for additional information. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
Page 20
W35302 - 35404 14,50 mm W35405 - 35602 12,00 mm Important: If wall thickness is less than shown in the table above, the insert may experience reduced component life. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
Page 21
W35302 - 35404 0.57 inch W35405 - 35602 0.48 inch Important: If wall thickness is less than shown in the table above, the insert may experience reduced component life. Consult your Enerpac distributor regarding the availability of inserts for your cassette model.
To order replacement parts 3/4" A/F spanner 5/8" spanner For replacement parts information, Circlip pliers refer to the Enerpac repair parts Seal extraction tool sheet for your wrench model. 2" A/F spanner Repair parts sheets are available ø 5 mm x 6 mm LG x 50 mm...
Need help?

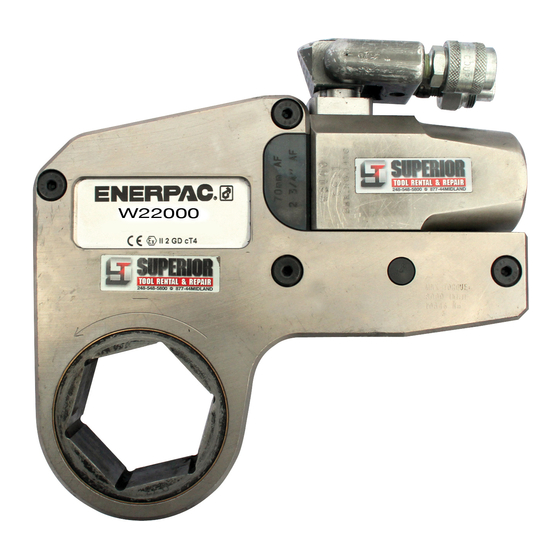

Do you have a question about the W22000 and is the answer not in the manual?
