Gema OptiFlow IG07-P Operating Instructions Manual page 16

16  Maintenance / Repairs
Rev. 00 02/19
ATTENTION
Individual parts may be damaged during the cleaning process.
► Please dismantle carefully to avoid damages!
► Remove the check valve units (1 and 6) with the correct sized
spanner.
6. Reinsert the injector and fix it

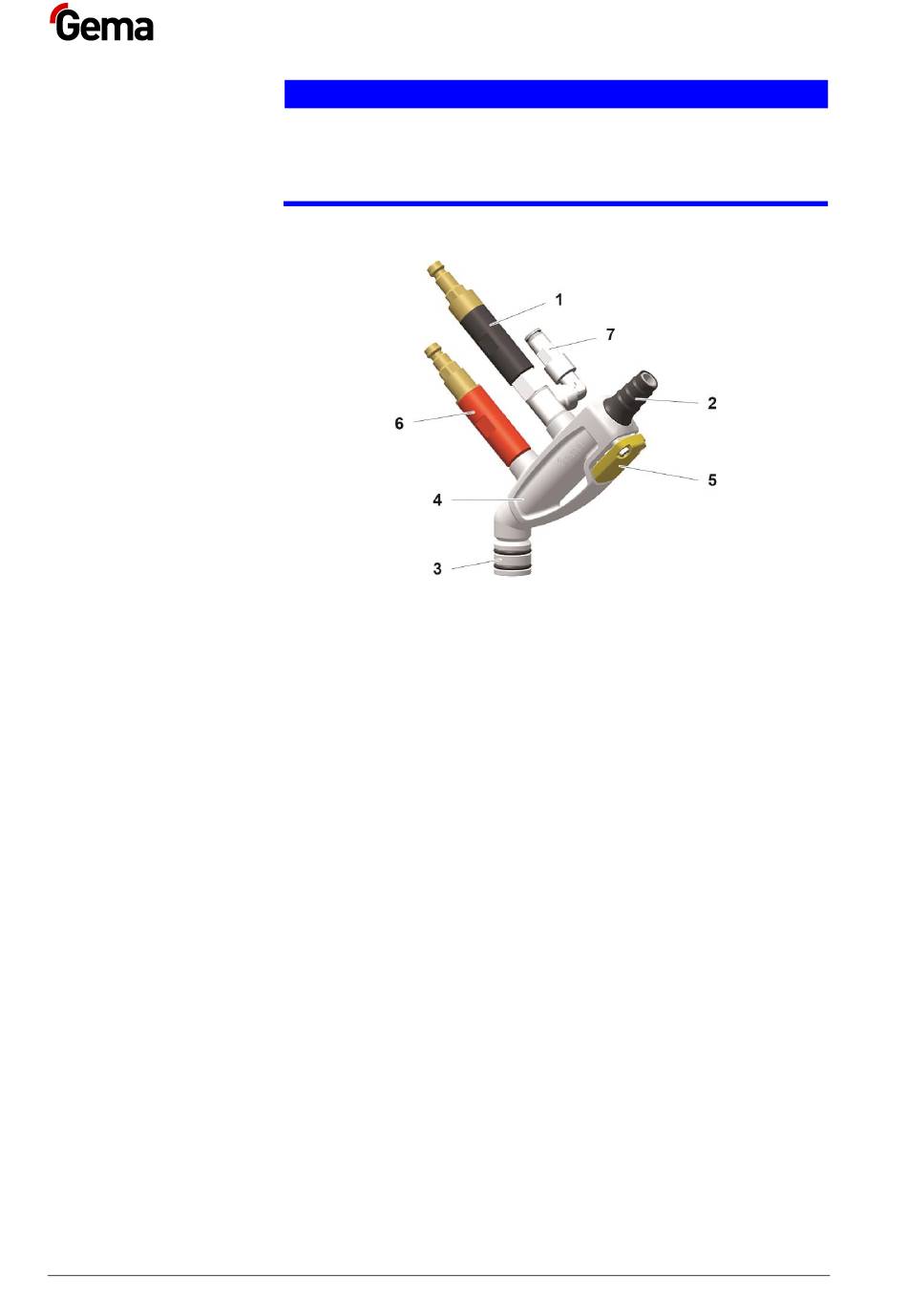

fig. 4
1 Check valve unit
(supplementary air)
2 Powder hose quick release
connection
3 Powder hopper connection
4 Injector housing
5 Release trigger
6 Check valve unit
(conveying air)
7 Powder hose rinsing
connection
