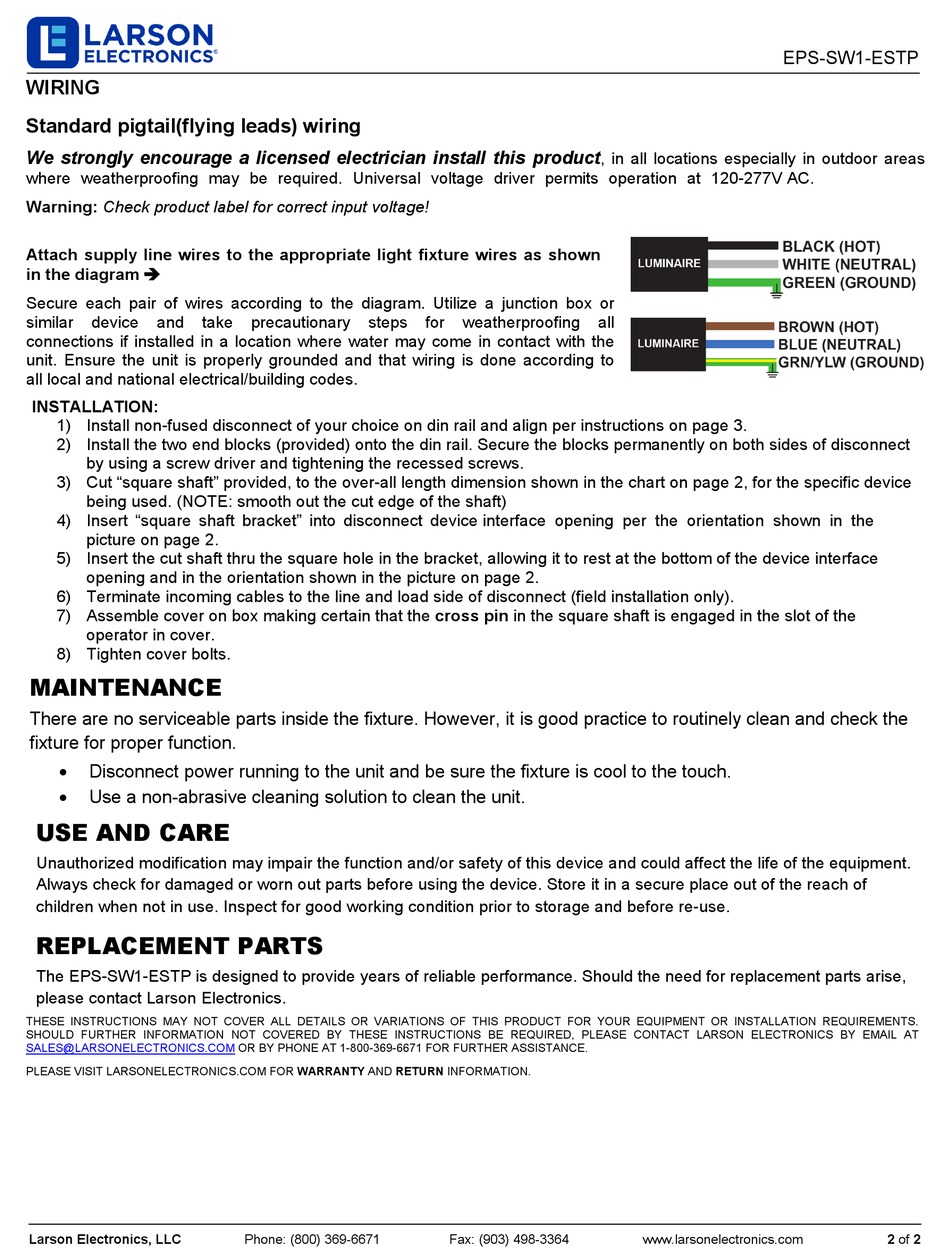

Wiring; Installation; Maintenance; Use And Care - Larson Electronics EPS-SW1-ESTP Instruction Manual

WIRING

Standard pigtail(flying leads) wiring
We strongly encourage a licensed electrician install this product
where weatherproofing may be required. Universal voltage driver permits operation at 120-277V AC.
Warning: Check product label for correct input voltage!
Attach supply line wires to the appropriate light fixture wires as shown
in the diagram 
Secure each pair of wires according to the diagram. Utilize a junction box or
similar device and take
connections if installed in a location where water may come in contact with the
unit. Ensure the unit is properly grounded and that wiring is done according to
all local and national electrical/building codes.

INSTALLATION:

1) Install non-fused disconnect of your choice on din rail and align per instructions on page 3.
2) Install the two end blocks (provided) onto the din rail. Secure the blocks permanently on both sides of disconnect
by using a screw driver and tightening the recessed screws.
3) Cut "square shaft" provided, to the over-all length dimension shown in the chart on page 2, for the specific device
being used. (NOTE: smooth out the cut edge of the shaft)
4) Insert "square shaft bracket" into disconnect device interface opening per the orientation shown in the
picture on page 2.
5) Insert the cut shaft thru the square hole in the bracket, allowing it to rest at the bottom of the device interface
opening and in the orientation shown in the picture on page 2.
6) Terminate incoming cables to the line and load side of disconnect (field installation only).
7) Assemble cover on box making certain that the cross pin in the square shaft is engaged in the slot of the
operator in cover.
8) Tighten cover bolts.

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the
fixture for proper function.
Disconnect power running to the unit and be sure the fixture is cool to the touch.
•
Use a non-abrasive cleaning solution to clean the unit.
•

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.
Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of
children when not in use. Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPS-SW1-ESTP is designed to provide years of reliable performance. Should the need for replacement parts arise,
please contact Larson Electronics.
THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.
SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT
SALES@LARSONELECTRONICS.COM
PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
Larson Electronics, LLC
precautionary steps
OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.
