Access Control Proximity Readers

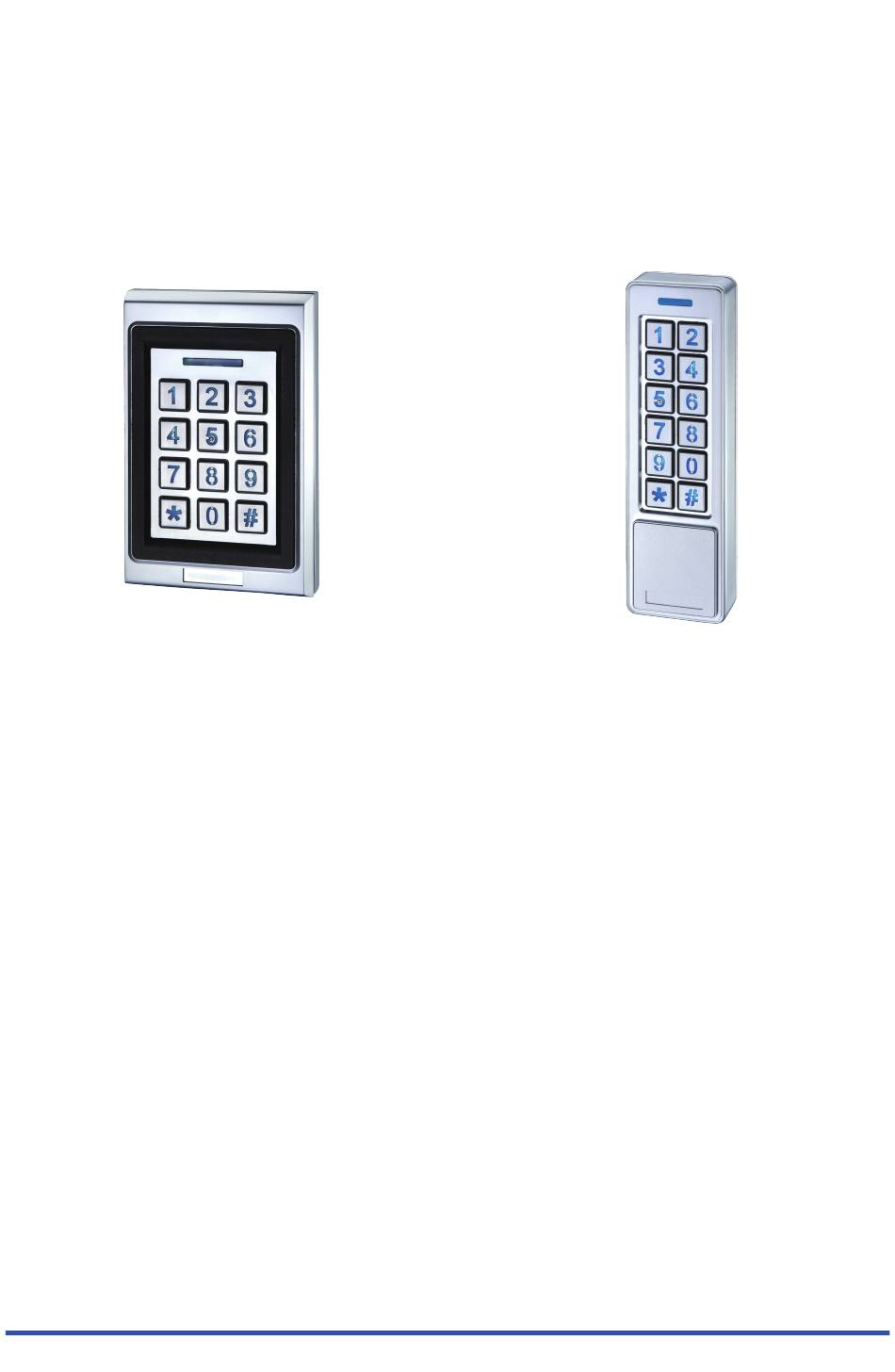

DG-800
Features:
•
Applicable card mode：EM Card / Key Fob
•
1 Administrator and 200 Users
•
200 Proximity Cards / Key fobs
•
Access Modes：Use Bluetooth smartphone,
Card / Key fob or enter passcode to access
•
Built-in Tamper alarm and Buzzer (85dB)
•
User Management：Add / Delete / View user
data, Grant user access for specific dates or
time periods, Change user passcode
•
Audit Trail logs for last 1000 events
•
Alarm output to notify that Tamper alarm has
been triggered
•
Overhead LEDs and Backlit keys for easy use
in the dark
•
Wrong code lockout：If an incorrect passcode
is entered 3 times in a row, the keypad will
lock down for 60 seconds
DG Series
+
Specifications:
•
Operating Voltage：12VDC / 24 VDC
•
Bluetooth Module：BLE 4.2 Bluetooth Low Energy
•
Current Draw：
Standby current
56mA@12VDC ; 28mA@24VDC
Working current (Relay active)：
85mA@12VDC ; 43mA@24VDC
•
Read Range：3.5cm
•
Frequency：EM 125KHz
•
Bluetooth Operating Distance：
Up to 50 meters (164 ft) without blocking by metal
or concrete wall/door frames
•
Smartphone Compatibility：Android 5.0 and up,
iOS 9.0 and up
•
Working Temperature：
-20 °C ~ +50 °C (-4 °F ~122 °F)
•
Dimension：
DG-800+：123 (L) x 79 (W) x 23 (D) mm
DG-170+：152 (L) x 45 (W) x 23 (D) mm
•
Finish：Zinc Alloy
+
DG-170
1
Advertisement
Related Manuals for ANXELL DG Series
Summary of Contents for ANXELL DG Series
- Page 1 DG Series Access Control Proximity Readers DG-800 DG-170 Features: Specifications: • Applicable card mode：EM Card / Key Fob • Operating Voltage：12VDC / 24 VDC • 1 Administrator and 200 Users • Bluetooth Module：BLE 4.2 Bluetooth Low Energy • 200 Proximity Cards / Key fobs •...
- Page 2 Invalid access, Forget to press # after entering passcode within 30 seconds Constant beeping Bluetooth device vandalized, Door sensor is on DG Series Wiring Diagram (DG-800+ & DG-170+ have same wiring and pin setting) RTE (Request-To-Exit) DG-800+ DG-170+ Green RTE (Request-To-Exit)
- Page 3 Be sure the crimping jaws are positioned over the stripped portion of the wire. Squeeze the handles together with enough force to crush the end of the butt splice. DG Series Keypads Installation DG-800 Installation Template...
- Page 4 Software App Operations 1. Download Easiprox App (for model Easiprox+ Series and DG Series) Download Easiprox App to set up. Scan QR Code on the left or download the App from Apple Store or Google Play depending on what kind of smartphone you use.
- Page 5 Software App Operations 3. Administrator ” Settings” Page Introduction Tap “Settings” to view or change setting functions in Users “Setttings” Page. Users： ① (See Figure 1 below) a. Add / Delete / Edit user information. b. If there are many users, you can search User ID (Enter an User ID to search user). (See Figure 2 below) c.
- Page 6 Software App Operations ② ③ ④ Figure 6 Figure 7 Figure 8 Figure 4 Figure 5 Restore Backup ④ (See Figure 8) Restore the last backup data by Admin’s phone to a new Access Control Keypad / Reader. Step 1：Press “Restore Backup”, the App will show： Restore all data now? Step 2：Press Confirm, the App will show：...
- Page 7 Software App Operations 4. User’s ” Settings” Page Introduction Tap “Settings” to view or change setting functions in User’s “Settings” Page. (See Figure 9 below) • Device Name：User can only view the Device Name. (See Figure 10 below) • Auto Proximity Range：User can adjust Auto proximity range between 0 to maximum 20 to access. May have different results under different circumstances.
