Access Control Proximity Reader

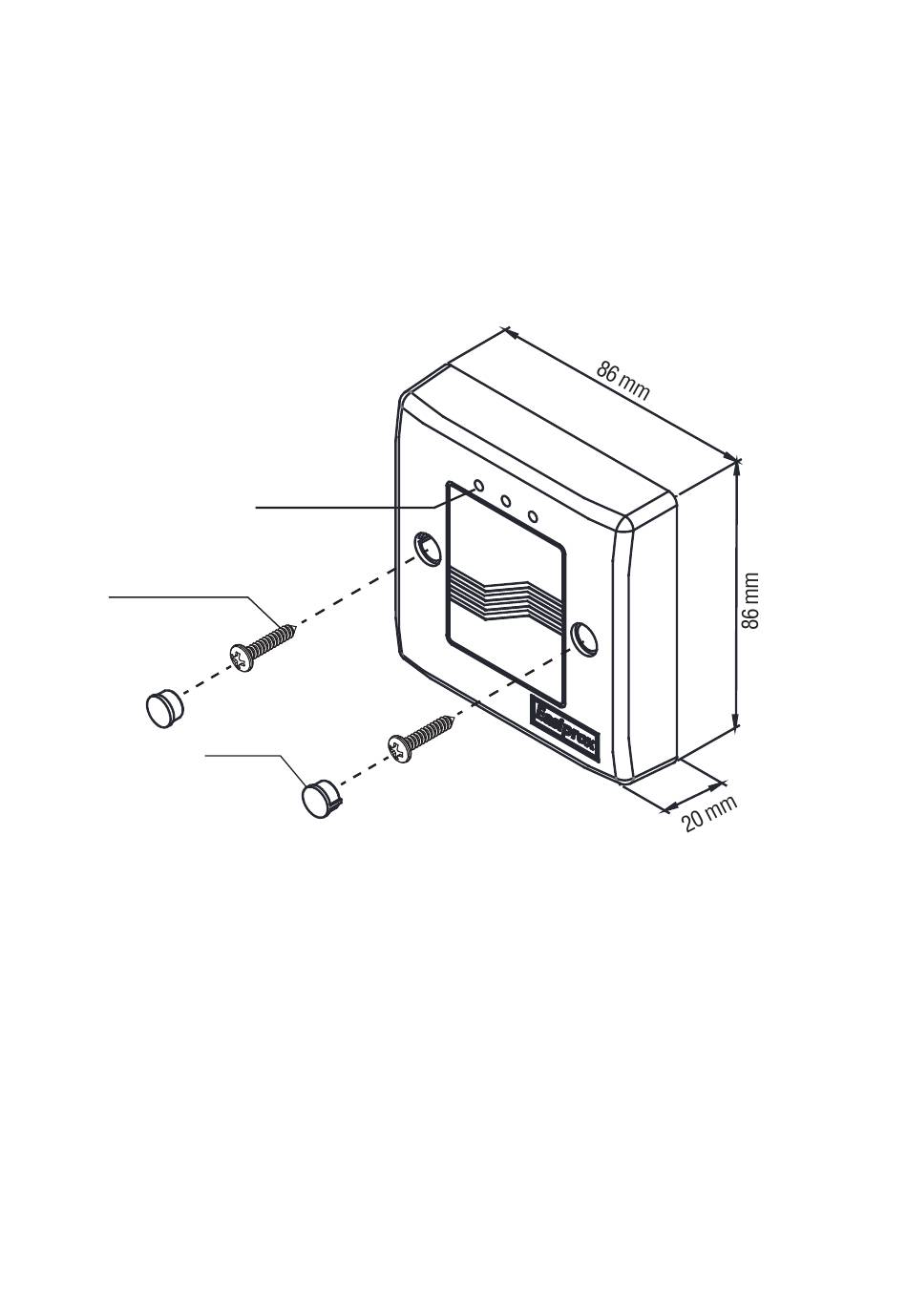

Operation Instructions
LED Indicator
Pan Head Phillips Screw x2
Plug x2
◆
Features
• 1 Administrator & 200 Users
• Access Modes：Use Bluetooth smartphone or RFID Card (EM 125 KHz) to access
• Anti-tailgate: Door sensor input for anti-tailgating operation
• LED & Audible indicators
• User Management
1. Add/Delete/View user data
2. Grant user access for specific dates or time periods
3. Change user passcode
4. Audit Trail logs for last 1000 events
• 3 Locking options: Door Relock Time, Door Always Unlocked, Door Always Locked
DG-360
+
1
Advertisement
Related Manuals for ANXELL DG-360+
Summary of Contents for ANXELL DG-360+
- Page 1 DG-360 Access Control Proximity Reader Operation Instructions LED Indicator Pan Head Phillips Screw x2 Plug x2 ◆ Features • 1 Administrator & 200 Users • Access Modes：Use Bluetooth smartphone or RFID Card (EM 125 KHz) to access • Anti-tailgate: Door sensor input for anti-tailgating operation •...
-
Page 2: Specifications
◆ Specifications Operating Voltage 12~24VDC Status 12VDC 24VDC Current Draw Standby 90 mA 46 mA Active 101mA 51mA 125 KHz, internal decimal number Frequency and Storage Format (ABA format, decimal conversion) Read Range 3 cm 1 RTE (Request-to-exit) Inputs 1 Door sensor (DS) 1 SSR (Dry contacts N.O./N.C./COM.) Outputs 1 Tamper Alarm (ALM) -
Page 3: Wiring Diagram
◆ Wiring Diagram Red (+) Item Wire Color Terminal Description Power Supply 12VDC Black (-) Positive Yellow (N.C.) Electric Lock1 Black Negative Diode Fail-Safe White Blue N.O. (COM) (Must install diode) SSR contact White Diode Blue (N.O.) Electric Lock 2 N.C. - Page 4 APP Guide 1. Download App to Open Your Doors with Your Smartphone Download Easiprox App to set up. Scan QR Code on the left or download the App from Apple Store or Google Play depending on what kind of smartphone you use. Smartphone compatibility：...
- Page 5 App Guide 3. Administrator “Settings” Page Introduction Tap "Settings" to view or change setting functions. DG-360+ DG-360+ Figure 1 Figure 2 Figure 3 DG-360+ Figure 4 Figure 5...
- Page 6 Users：(See Figure 1 below) a. Add / Delete / Edit user information. b. ID (Up to 16 characters) c. Passcode (4~8 digits) d. Card/Fob Audit Trail：(See Figure 3 and 4) a. Audit Trail is tracking last 1000 event logs. b. Enter an user ID to search events for an user. c.
- Page 7 App Guide Administrator “Settings” Page Introduction Continued： (See the Figure) Device Name：Edit Device Name (Up to 16 characters) Admin Passcode：Edit Admin Passcode (4~8 digits) Lock Action：(3 options) GDG360BT Choose Door Re-lock Time, Door Always Unlocked, and Door Always Locked. Door Re-lock Time：6 seconds by default. You can modify Door Re-lock Time from 1 to 1800 seconds.
