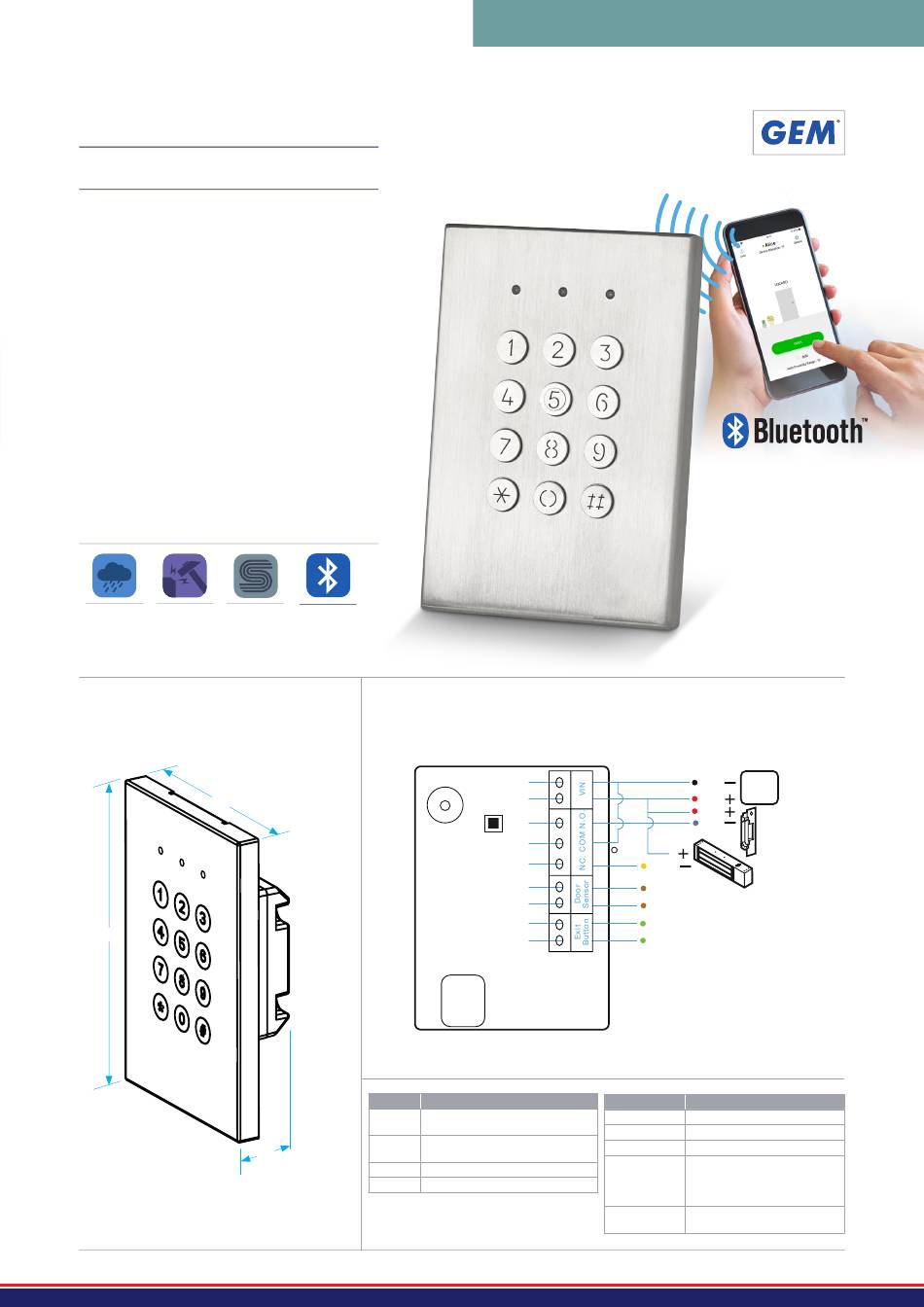

ANXELL E-Access E3AK5+ Instructions Manual

Access control keypad
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
E3AK5+
Standalone Keypad
•
Operating voltage 12Vdc
•
Bluetooth
•
Stainless Steel
•
Allows up to 1000 IC card capacity
•
Backlit keypad
•
Audit trail
•
Operation mode: Code, phone
•
Door opening signal output by relay directly
(NO/NC optional)
•
Weather resistant: IP65
•
Vandal resistant
•
3 LED displays with audible indication
WEATHER
VANDAL
STAINLESS
RESISTANT
RESISTANT
STEEL
− IP 65 −
90
134
BlUetootH
Buzzer
LED
RED
POWER ON, STANDBY MODE
(SOLID)
RED
BLUETOOTH IS CONNECTING
43
(FLASHING)
GREEN
UNLOCKED, DOOR ALWAYS UNLOCKED
YELLOW
INVALID ACCESS DOOR ALWAYS LOCKED
Reset
White
Button
BLE 4.2
Module
KEYPAD STATUS
AUDIBLE BEEPS
1 SHORT BEEP
1 LONG BEEP
2 SHORT BEEPS
3 SHORT BEEPS
CONSTANT
BEEPING
Access control
Polarity
Insensitive
Black
PSU
Red
Red
ELECTRIC
Blue
LOCK 2
(Fail-Secure)
Yellow
Brown
DOOR
ELECTRIC
SENSOR
Brown
LOCK 1
(Fail-Safe)
Green
EXIT
BUTTON
Green
STATUS
KEY PRESS
VALID ACCESS, RESET IS COMPLETE
LOGIN COMPLETE
LOGIN FAILURE. INCORRECT
PASSCODE. FORGOT TO PRESS #
AFTER ENTERING PASSCODE WITHIN
30 SECONDS.
BLUETOOTH DEVICE VANDALISED
DOOR SENSOR IS ON
Setting the Standard in Access Control
39
