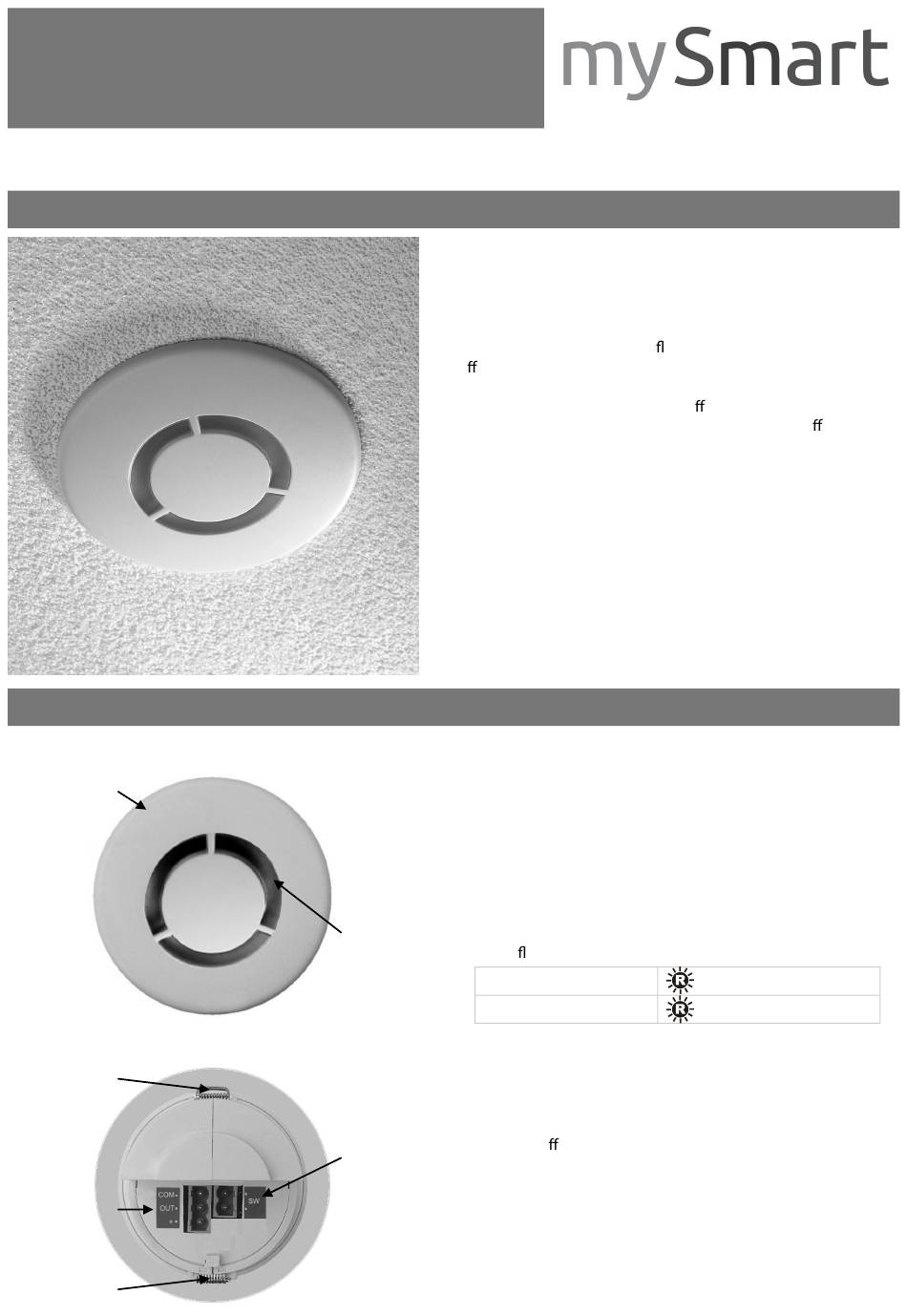

mySmart MWS6-PRM-LV Product Manual

MWS6-PRM-LV
Product Guide
Ceiling Microwave presence/absence detector 12 -24V AC/DC
Front features
Mounting Bezel
Back features
Retaining Spring
Power Input &
Output
Connector
Retaining Spring
The MWS6-PRM-LV Microwave presence detector provides
automatic control of low voltage loads including lighting and
BMS systems with optional manual control. The MWS6
PRM detects movement using a highly sensitive microwave
detector. This works by emitting low power microwave
signals and measuring the re ections as the signals bounce
o moving objects.
Functioning as a presence detector, the unit can turn lights
on when a room is occupied and o when the room is
empty. Optional settings allow lights to be turned o in
response to ambient daylight.
All functionality is fully programmable using an IR handset.
MWS6 -PRM -LV
MWS6 -PRM -LV -GOLD
MWS6 -PRM -LV -OC
Microwave Sensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IR Receiver
Receives control and programming commands from an
IR (infrared) handset.
Light Level Sensor
Measures the overall light level in the detection area
Status LEDs
Sensor Lens
which covers...
The LED ashes
Microwave Sensor
Walk Test LED active
IR Receiver
Light Level Sensor
Valid setting received
Status LEDs
Power Input & Output Connector
Used to connect power to the unit and to connect a
switched load.
Switch Input Connector
Two input terminals can be used to manually override the
lights on or o .
Switch Input
Connector
Ceiling Microwave presence/absence
detector 12 -24V AC/DC
Ceiling Microwave presence/absence
detector 12 -24V AC/DC for low current
Ceiling Microwave presence/absence
detector 12 -24V AC/DC and open
collector output
R ed to indicate the following:
when movement is detected
Overview
-
Features
