Ceiling Microwave presence/absence detecr t o 2 channel

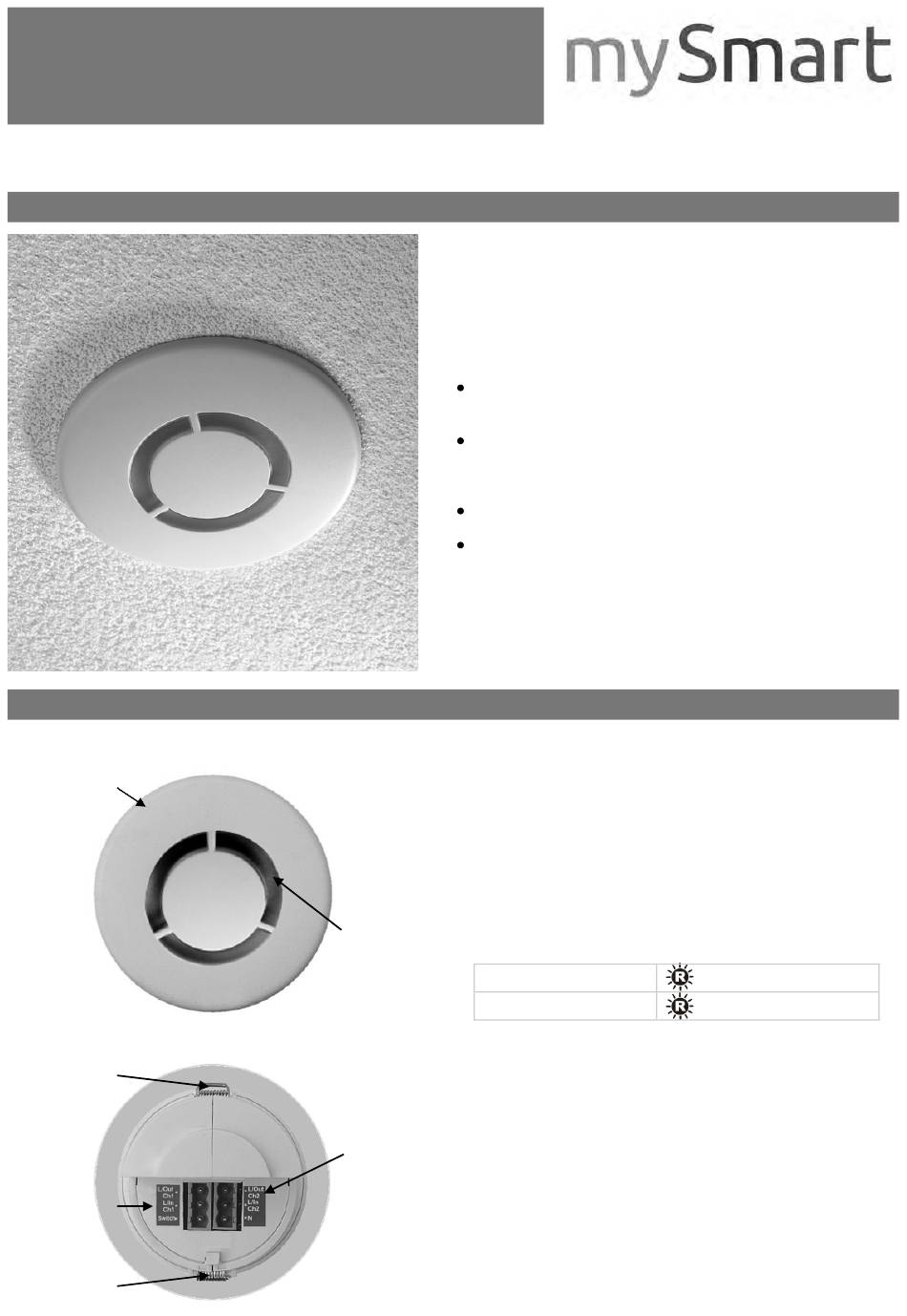

Front features
Mounting Bezel
Back features
Retaining Spring
Channel 1
Connector
Retaining Spring
The MWS6 -PRM -2CH Microwave presence detector
provides automatic control of lighting loadswith optional
manual control. It detectsmovement using a highly
sensitive microwave detector. This worksby emitting low
power microwave signalsand measuring the re ections as
the signalsbounce o moving objects.
The detector provides two independently controlled output
channels that can be used for avariety of applications.
All functionality isfully programmable using an IRhandset.
MWS6 -PRM -2CH
MWS6 -PRM -2CH -NC Ceiling Microwave presence/
MicrowaveSensor
Detects movement within the unit's detection range,
allowing load control in response to changes in occupancy.
IRReceiver
Receives control and programming commands from an
IR(infrared) handset.
LightLevelSensor
Measures the overall light level in the detection area
Sensor Lens
Status LEDs
which covers...
The LED ashes Red to indicate the following:
Microwave Sensor
Walk Test LEDactive
IRReceiver
Light LevelSensor
Valid setting received
Status LEDs
Channel 1 Connector
Live input and output for Channel 1. Switch input
connection that can be used to manually override the lights
on or o .
Channel 2 Connector
Live input and output for Channel 2. Common Neutral
Channel 2
Connector
connection.
Occupancy of two independent lighting circuitsusing
a single detector, e.g. for essential and non
supplies.
Occupancy and lux control of one lighting circuit and
just occupancy control of a second circuit, e.g. where
a row of luminariesby a window islux controlled
whilst inner rows are switched on occupancy only .
Occupancy and lux control of alighting circuit and
just occupancy control of aventilation circuit .
Occupancy on both lighting circuits, with separate lux
control on each circuit.
Ceiling Microwave presence/
absence detector 2 channel
absence detector 2 channel
normally closed
Overview
-essential
Features
when movement is detected
Advertisement
Table of Contents
Related Manuals for mySmart MWS6-PRM-2CH
Summary of Contents for mySmart MWS6-PRM-2CH
- Page 1 MWS6-PRM-2CH, MWS6- PRM-2CH-NC Product Guide Ceiling Microwave presence/absence detecr t o 2 channel Overview The MWS6 -PRM -2CH Microwave presence detector provides automatic control of lighting loadswith optional manual control. It detectsmovement using a highly sensitive microwave detector. This worksby emitting low power microwave signalsand measuring the re ections as the signalsbounce o moving objects.
- Page 2 • The level can be set independently for each channel (UNLCDHS only). For example Channel 1 turns on with occupancy whereas Channel 2 is held off by Lux. Normally closed option The MWS6-PRM-2CH-NC provides a normally closed contact for fail safe operation. If the unit fails, the outputs will default to on.
- Page 3 Installation Choosing a Suitable Location The detector should be sited so that the occupants of the room fall inside the detection pattern shown opposite). • Avoid positioning the unit where direct sunlight may enter the sensor element. • Do not site the sensor within 1m of any lighting, forced air heating or ventilation. •...
- Page 4 Installation The MWS6-PRM-2CH is designed to be mounted using either: • Flush fixing, or • Surface fixing, using the optional Surface Mounting Box (part no. DBB). Both methods are illustrated below. Flush Fixing Hole Ø64mm If the range is compromised by...
- Page 5 Basic programming The functionality of the MWS6-PRM-2CH is controlled by a number of parameters which can be changed or programmed by any of the following devices: • UHS5 Infrared Handset. See below for programmable functions. • UNLCDHS Infrared Handset (with LCD). See user guide for full programming details.
- Page 6 Advanced programming UHS5 UNLCDHS Parameter Name Default Value Range / Options Description Detector Parameters Walk Test LED On or Off When set to On this causes a red LED to flash on the sensor when it detects movement. Use this feature to check for adequate sensitivity levels. ...
- Page 7 Advanced programming Switch Input Modes Default A single position retractive switch controls both channels together. 1 position switch Short press on together Long press off Two single position retractive switches, controlling the channels separately. 1 position switch Short press on This option can only be used in conjunction with a VITM4-2CH Vitesse separate...
- Page 8 Building Regulations. 1 Talavera Road Macquarie Park, NSW 2112 Australia T: 1300 697 627 F: (02) 9887 1333 www.mysmart.com.au Due to our policy of continual product improvement mySmart reserves the right to alter the specification of this product without prior notice.
