KOOLAIR FDS-3G Series Manual

Rectangular fire dampers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
serie
FDS-3G
Rectangular fire
dampers
www.koolair.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FDS-3G Series and is the answer not in the manual?

Questions and answers

Related Manuals for KOOLAIR FDS-3G Series

Summary of Contents for KOOLAIR FDS-3G Series

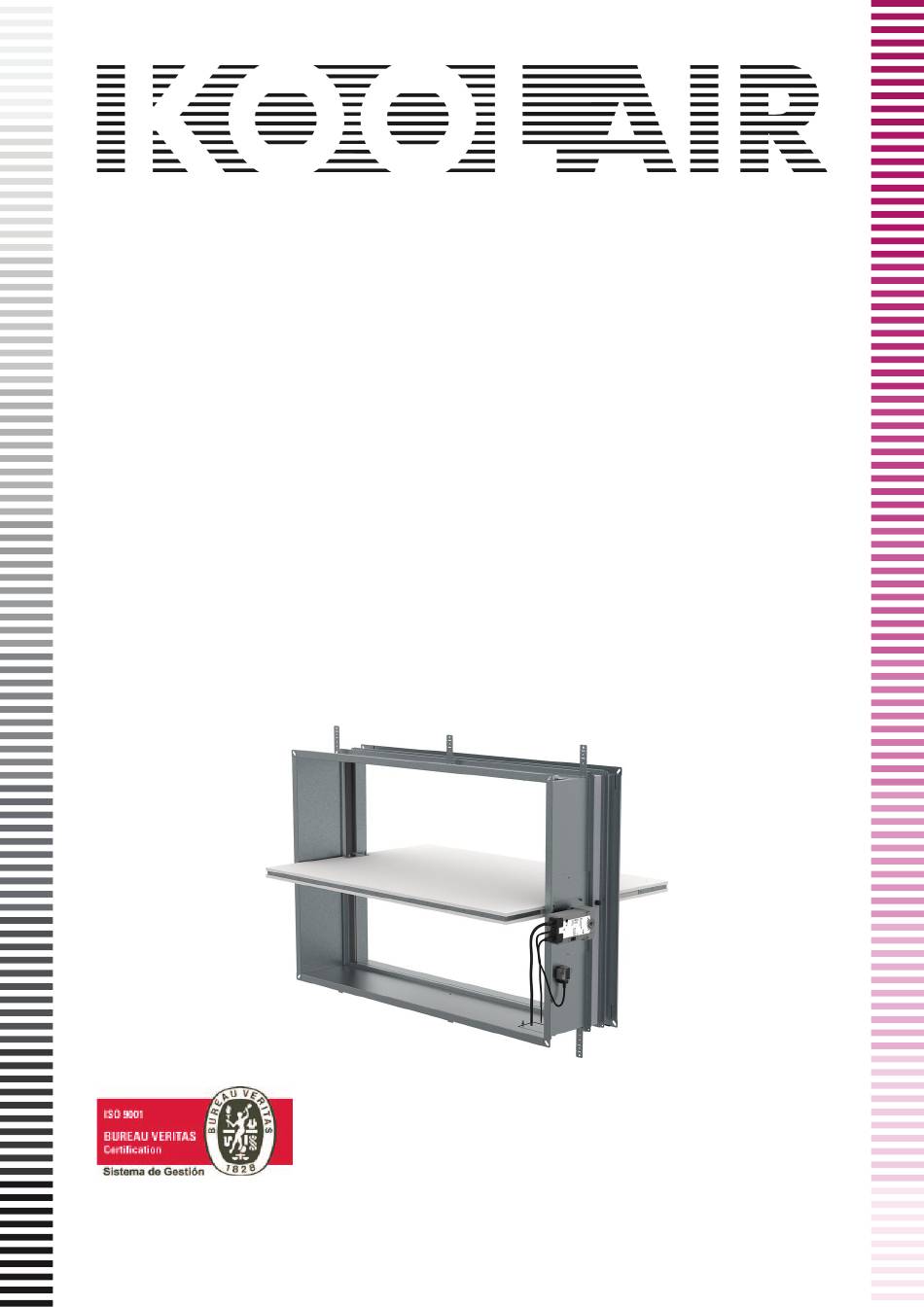

  • Page 1 FDS-3G Rectangular fire dampers www.koolair.com...

  • Page 2: Table Of Contents

    FDS-3G Table of Contents Overview Technical Parameters Diagrams Dimensions & Weights Ordering Code Installation Electrical Parameters Operation Manual FDS-3G-KS...

  • Page 3: Overview

    FDS-3G Overview Description Fire dampers represent passive fire protection, designed with the help of compartmentalization to prevent the spread of toxic gases, smoke and fire. Standard fire dampers are designed and certified in accordance with EN 15650 and tested for EIS criteria according to EN 1366–2. Fire damper together with its installation form an inseparable part of fire resistivity rating.
  • Page 4 FDS-3G Overview Activation Types Manually Operated Fire Dampers By default, all manually operated fire dampers are supplied with manual control, optionally with micro switches and electromagnets. In case of fire, the fire damper is closed automatically. Depending on the version, the damper closes either after the melting of the thermal fuse or by means of remote activation through an electromagnet in impulse connection.
  • Page 5 FDS-3G Overview Design Fire dampers have casings made from galvanized sheet metal. Blades from non-asbestos insulants have a rubber seal for cold smoke and an intumescent seal, that expands in a fire situation. Material Composition The product contains galvanized sheet metal, calcium silicate board, fireproof carbon fiberglass, polyurethane foam and ethylene-propylene rubber.

  • Page 6: Technical Parameters

    FDS-3G Technical Parameters Durability test • 50 cycles/manually operated activation mechanism – with no change of the required properties • 10000 + 100 + 100 cycles/actuator operated activation mechanism – with no change of the required properties Fire testing pressure Underpressure between 300 Pa and 500 Pa Safety position Closed.
  • Page 7 FDS-3G Technical Parameters Revisions Determined by law in the country in which the fire dampers are installed but at least every 12 months. Allowed pressure 1200 Pa Blade tightness (STN EN 1751) Class 3 as standard for all nominal sizes. Tightness of the housing (STN EN 1751) Class C as standard Conformity with EC directives...
  • Page 8 FDS-3G Technical Parameters Product parts FDS-3G Legend Blade Casing Manually operated activation mechanism (H0;H...) Actuator operated activation mechanism (B...) Inspection lid Thermoelectric fuse (BAT72;TA-72) Bendable hanger Release and test button Crank Open position Closed position Hexagon bent wrench No.10 (not part of delivery)
  • Page 9 FDS-3G Technical Parameters Assessed Performance - FDS-3G 23 CE 1396 Safeair, S.L. (España) Avda. San Isidro, nave C-3, 45223 Sesena – TOLEDO 1396-CPR-0231, FDS-3G (valid for subgroups: KS…) EN 15650 : 2010 Rectangular fire dampers Nominal activation conditions/sensitivity - Pass •...

  • Page 10: Diagrams

    FDS-3G Diagrams The pressure drop and A-weighted total discharged sound power level depend on the nominal width and height of the damper and air flow volume at different duct pressures. The type of activation does not influences the airflow parameter, therefore only one activation type is shown in the diagrams.
  • Page 11 FDS-3G Diagrams FDS-3G-... FDS-3G-... Pressure drop & A-weighted sound power level in db(A) Pressure drop & A-weighted sound power level in db(A) FDS-3G-... FDS-3G-... Pressure drop & A-weighted sound power level in db(A) Pressure drop & A-weighted sound power level in db(A)
  • Page 12 FDS-3G Diagrams Free area W (mm) FDS-3G (L = 325 mm)
  • Page 13 FDS-3G Diagrams W (mm) FDS-3G (L = 325 mm)

  • Page 14: Dimensions & Weights

    FDS-3G Dimensions & Weights Dimensions To avoid blocking the movement of a damper blade, connect a straight duct at minimal lengths respectively R1 or R2. R1 and R2 are the overhang of the fully open blade, including seals and gaskets on the damper blade. NOTES ‘* For nominal size W = 100 mm the internal width dimension is 100 mm, flange outside width dimension 152 mm and/or for nominal size H = 100 mm the internal height dimension is 100 mm, flange outside height dimension 152...
  • Page 15 FDS-3G Dimensions & Weights Weights W (mm) B... FDS-3G (L = 325 mm) + 1,6...
  • Page 16 FDS-3G Dimensions & Weights Weights W (mm) B... FDS-3G (L = 325 mm) + 1,6...

  • Page 17: Ordering Code

    FDS-3G Ordering Code A-Damper type W - Width Dimension from 100 mm up to 1200 mm (FDS-3G) H - Height Dimension from 100 mm up to 800 mm (FDS-3G) B - Type of Activation (H0 up to B24T-W) H0 - Manual crank, no switches H2 - Manual crank, 2 switches 230V AC or 24V AC/DC H5-2 - Manual crank, 24V AC/DC electromagnet, 2 switches 230V AC or 24V AC/DC H6-2 - Manual crank, 230V AC electromagnet, 2 switches 230V AC or 24V AC/DC...
  • Page 18 FDS-3G Ordering Code Example of the Rectangular Fire Dampers Ordering Code FDS-3G FDS-3G-1200x800-H5-2 Rectangular fire damper, nominal dimensions width × height = 1200 × 800 mm, with open and closed position indication with 230 V contact microswitches. Note: The fire resistivity depends on the installation method. W - Width Dimension Inspection opening possitions Removable mechanism is available for all sizes.
  • Page 19 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 1 Wet (Subpressure: 300 Pa) FDS-3G 100 x 100 ..1200 x 800 1 Wet (Subpressure: 500 Pa) FDS-3G 100 x 100 ..1200 x 800 2 Dry (Subpressure: 300 Pa) FDS-3G...
  • Page 20 4. Check the damper’s functionality as per the chapter “Fire Damper Functionality Check” before you install the fire damper. This procedure prevents the installation of a damper that has been damaged during transportation or handling. Information about installation, maintenance and operation can be found at www.koolair.com.

  • Page 21: Installation

    FDS-3G Installation Methods Wet Installation Using Plaster/Mortar/Concrete Filling Important: Use support inside the damper when adding filling. The weight of the filling can damage or bend the damper casing. 1. The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. The flexible wall opening must be reinforced as per the standards for plasterboard walls.
  • Page 22 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 1 Wet (Subpressure: 300 Pa) FDS-3G 100 x 100 ..1200 x 800 1 Wet (Subpressure: 500 Pa)
  • Page 23 FDS-3G Installation Methods...
  • Page 24 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F2 Plaster/mortar/concrete filling 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 25 FDS-3G Installation Methods Dry Installation Using Mineral Wool and Cover Boards 1. The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. The flexible wall opening must be reinforced as per the standards for plasterboard walls. The opening dimensions are driven by the nominal dimensions of the damper with added clearance.
  • Page 26 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 2 Dry (Subpressure: 300 Pa)
  • Page 27 FDS-3G Installation Methods...
  • Page 28 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F3 Mineral wool filling (min. 50 kg/m3) F4 Fire resistive coating, e.g. Promastop-CC/Promat A1 Cover board CBS-FD (accessory) obligatory 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall...
  • Page 29 FDS-3G Installation Methods Soft installation Installation into a Soft Crossing with fire-resistive coating With this installation we recommend using flexible connection due to thermal expansion of connected ducts during fire. Install the compensator so, that the flexible part has a minimum distance of 50 mm from the edge of a damper‘s blade in open position.
  • Page 30 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 3 Soft (Subpressure: 300 Pa)
  • Page 31 FDS-3G Installation Methods...
  • Page 32 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F5 Mineral wool segment (minimum 150 kg/m3). F6 Layer of fire resistive coating (Promastop-CC/Promat) at least 2 mm thick for exposed surfaces. 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall...
  • Page 33 FDS-3G Installation Methods Installation Hilti Filling made only from Hilti foam With this installation we recommend using flexible connection due to thermal expansion of connected ducts during fire. Install the compensator so, that the flexible part has a minimum distance of 50 mm from the edge of a damper‘s blade in open position.
  • Page 34 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 3H Hilti (Subpressure: 300 Pa)
  • Page 35 FDS-3G Installation Methods...
  • Page 36 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 e.g. DIN7981 or suitable wall plug and screw size 6. F17 Foam CFS-F FX/HILTI. 1 Fire damper (actuator side) 2 Bendable hanger 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 37 FDS-3G Installation Methods ON & OUT of the wall installation, EI90S Using 2 layers of Mineral Wool TIP: The duct-wall cavity filling can be also replaced by plaster/mortar/concrete (F2) as a replacement of filling (F9), then the coating (F10) is not needed for the cavity filling. 1.
  • Page 38 FDS-3G Installation Methods FDS-3G 100 x 100 ..1200 x 800 5.1 On, Out (Subpressure: 300 Pa) 155 mm (FDS-3G) 180 mm (FDS-3G) 40 mm (FDS-3G)
  • Page 39 FDS-3G Installation Methods...
  • Page 40 FDS-3G Installation Methods...
  • Page 41 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F7 L-profile 60 × 40 × 3 mm, length W + 300 mm or WL + 300 mm F8 Screw 3,9 × max. 13 DIN7504 F9 Mineral wool segment (min.
  • Page 42 FDS-3G Installation Methods 5.2 ON & OUT of the wall installation, EI60S Using 1 layer of Mineral Wool TIP: The duct-wall cavity filling can be also replaced by plaster/mortar/concrete (F2) as a replacement of filling (F9), then the coating (F10) is not needed for the cavity filling. Damper Preparation before Installation:Fasten the rectangular damper in the blade/perforation location only on the top and bottom sides with U-profiles (28), and then fasten the U-profiles together by using the threaded rod M10 (20).
  • Page 43 FDS-3G Installation Methods...
  • Page 44 FDS-3G Installation Methods...
  • Page 45 FDS-3G Installation Methods Legend F9 Mineral wool segment (min. 66 kg/m3) - in a wall F10 Layer of fire resistive coating (BSF/ISOVER) at least 2 mm thick for exposed surfaces 1 Fire damper (actuator side) 3 Concrete/masonry/brick/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 46 FDS-3G Installation Methods 5.3 ON & OUT of the wall installation, maximum EI90S Using Promatect Boards TIP: The duct-wall cavity filling (F12) and its coating (F13) can be also replaced by plaster/mortar/concrete (F2). Damper Preparation before Installation:Attach all 4 parts of the IKOWS-FD accessory around the casing where the damper blade is situated, as shown in picture and apply a suitable fire-resistive coating (F13) to the contact surfaces of the boards and the damper.
  • Page 47 FDS-3G Installation Methods...
  • Page 48 FDS-3G Installation Methods...
  • Page 49 FDS-3G Installation Methods...
  • Page 50 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F12 Mineral wool segment thickness of 50 mm; min. 150 kg/m3 - in a wall F13 Fire resistive coating; Promat kleber K84/Promat F14 Steel L-profile 25 × 25 × 2 mm F15 Gypsum board thickness of 15 mm;...
  • Page 51 FDS-3G Installation Methods 5.4 ON & OUT of the wall installation, maximum EI60S Using Promatect Boards TIP: The duct-wall cavity filling (F12) and its coating (F13) can be also replaced by plaster/mortar/concrete (F2). Damper Preparation before Installation:Attach all 4 parts of the IKOWS-FD accessory around the casing where the damper blade is situated, as shown in picture and apply a suitable fire-resistive coating (F13) to the contact surfaces of the boards and the damper.
  • Page 52 FDS-3G Installation Methods...
  • Page 53 FDS-3G Installation Methods...
  • Page 54 FDS-3G Installation Methods...
  • Page 55 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. F12 Mineral wool segment thickness of 50 mm; min. 150 kg/m3 - in a wall F13 Fire resistive coating; Promat kleber K84/Promat F14 Steel L-profile 25 × 25 × 2 mm F15 Gypsum board thickness of 15 mm;...
  • Page 56 FDS-3G Electrical connections W (mm) T/PC/A H (mm) T/PC/A - Activation Type / Power Consumption / Actuator...
  • Page 57 FDS-3G Electrical connections W (mm) T/PC/A H (mm) T/PC/A - Activation Type / Power Consumption / Actuator...

  • Page 58: Electrical Parameters

    FDS-3G Electrical connections Type of activation H0 This type of activation mechanism does not have any electrical equipment. Type of activation H2 IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch:Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A NOTES:...
  • Page 59 FDS-3G Electrical connections Type of activation H5-2 IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC (50/60 Hz)/DC 24 V...
  • Page 60 FDS-3G Electrical connections Type of activation H6-2 IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC 230 V, 50/60 Hz...
  • Page 61 FDS-3G Electrical connections Type of activation B230T IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC 230 V, 50/60 Hz NOTES: •...
  • Page 62 FDS-3G Electrical connections Type of activation B24T IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
  • Page 63 FDS-3G Electrical connections Type of activation B24T-W IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. This type of activation is with provided cable connectors for the supply and communication unit (communication unit not part of the mechanism).

  • Page 64: Operation Manual

    FDS-3G Operation Manual Warning To avoid injury, make sure to wear gloves and keep the blades movement area clear while manipulating with the damper. Fire Damper Functionality Check Manually Operated Activation Mechanism 1. Open the damper - turn the red crank (P10) using an Allen bent wrench No. 10 (P13). Turn the red crank so that the indicator arrow is pointing to the “OPEN“...
  • Page 65 FDS-3G Operation Manual Damper Inspection The activation mechanism keeps the dampers on stand-by during their entire life cycle in accordance with this manual issued by the manufacturer. It is not permitted to alter the dampers in any way nor perform any changes to their structure without the manufacturer’s consent.

  • Page 66: Fds-3G-Ks

    FDS-3G FDS-3G-KS Description Fire dampers with square Kit up to size 800x600 mm represent passive fire protection, designed with the help of compartmentalization to prevent the spread of toxic gases, smoke and fire. FDS-3G...KS fire dampers installation is designed with simplicity in mind. Standard fire dampers are designed and certified in accordance with EN 15650 and tested for EIS criteria according to EN 1366–2.
  • Page 67 FDS-3G Overview Activation Types Manually Operated Fire Dampers By default, all manually operated fire dampers are supplied with manual control, optionally with micro switches and electromagnets. In case of fire, the fire damper is closed automatically. Depending on the version, the damper closes either after the melting of the thermal fuse or by means of remote activation through an electromagnet in impulse connection.
  • Page 68 FDS-3G Overview Activation Types Actuator- Operated Fire Dampers By default, all actuator operated fire dampers are supplied with an actuator with micro switches, optionally with a power and communication unit. A fire damper can be equipped with a spring return actuator can be closed with command from the building management system, or after the breaching of the thermoelectric fuse.
  • Page 69 FDS-3G Technical Parameters Technical Parameters Durability test • 50 cycles/manually operated activation mechanism – with no change of the required properties • 10000 + 100 + 100 cycles/actuator operated activation mechanism – with no change of the required properties Fire testing pressure Underpressure up to 300 Pa Safety position Closed.
  • Page 70 FDS-3G Technical Parameters Blade tightness (STN EN 1751) Class 2 as standard Tightness of the housing (STN EN 1751) Class C as standard Conformity with EC directives 2006/42/EC Machinery Directive 2014/35/EU Low Voltage Directive 2014/30/EU Electromagnetic Compatibility Directive Modulated Actuator Can be set to any position when opening the blade - see types of activation mechanisms B24T-SR-KS Driving actuator types BF230-T, BF24-T, BFN230-T, BFN24-T, BFN24-T, BFL230-T, BFL24-T (also with connection possibilities with acronyms...
  • Page 71 FDS-3G Technical Parameters Product parts FDS-3G-KS Legend P1 Blade P2 Casing P3 Manually operated activation mechanism (H0;H...) P4 Actuator operated activation mechanism (B...) P5 Inspection lid P6 Thermoelectric fuse (BAT72) P9 Release and test button P10 Crank P11 Open position P12 Closed position P13 Hexagon bent wrench No.10 (not part of delivery) P14 Kit Base plate...
  • Page 72 FDS-3G Technical Parameters Assessed Performance - FDS-3G 23 CE 1396 Safeair, S.L. (España) Avda. San Isidro, nave C-3, 45223 Sesena – TOLEDO 1396-CPR-0231, FDS-3G (valid for subgroups: KS…) EN 15650 : 2010 Rectangular fire dampers Nominal activation conditions/sensitivity - Pass •...
  • Page 73 FDS-3G Diagrams The pressure drop and A-weighted total discharged sound power level depend on the nominal width and height of the damper and air flow volume at different duct pressures. The type of activation does not influences the airflow parameter, therefore only one activation type is shown in the diagrams.
  • Page 74 FDS-3G Diagrams FDS-3G-KS FDS-3G-KS Pressure drop & A-weighted sound power level in db(A) Pressure drop & A-weighted sound power level in db(A) Free area...
  • Page 75 FDS-3G Dimensions & Weights Dimensions To avoid blocking the movement of a damper blade, connect a straight duct at minimal lengths respectively R1 or R2. R1 and R2 are the overhang of the fully open blade, including seals and gaskets on the damper blade. NOTES ‘* For nominal size W = 100 mm the internal width dimension is 100 mm, flange outside width dimension 152 mm and/or for nominal size H = 100 mm the internal height dimension is 100 mm, flange outside height dimension 152 mm.
  • Page 76 FDS-3G Dimensions & Weights Weights...
  • Page 77 FDS-3G Ordering Code A-Damper type W - Width Dimension from 100 mm up to 800 mm H - Height Dimension from 100 mm up to 600 mm B - Type of Activation (H0 up to B24T-SR) H0-KS (Manual crank, no switches) H2-KS (Manual crank, 2 switches 230V AC or 24V AC/DC) H5-2-KS (Manual crank, 24V AC/DC electromagnet, 2 switches 230V AC or 24V AC/DC) H6-2-KS (Manual crank, 230V AC electromagnet, 2 switches 230V AC or 24V AC/DC)
  • Page 78 FDS-3G Ordering Code Example of the Rectangular Fire Dampers Ordering Code FDS-3G-KS FDS-3G-800x600-H2-KS Rectangular fire damper with Kit, nominal dimensions width × height = 800 × 600 mm, with open and closed position indication with 230 V contact microswitches. Inspection opening possitions Removable mechanism is available for all sizes.
  • Page 79 4. Check the damper’s functionality as per the chapter “Fire Damper Functionality Check” before you install the fire damper. This procedure prevents the installation of a damper that has been damaged during transportation or handling. Information about installation, maintenance and operation can be found at www.koolair.com. Installation rules •...
  • Page 80 FDS-3G Installation Methods Installation Using an Installation Kit IMPORTANT: The installation kit can not be delivered separately!The installation kit is delivered pre-mounted on a damper. 1. The supporting construction opening must be prepared as depicted. Opening surfaces must be even and cleaned off. 2.
  • Page 81 FDS-3G Installation Methods...
  • Page 82 FDS-3G Installation Methods...
  • Page 83 FDS-3G Installation Methods Legend F1 Screw ≥ 5,5 DIN7981 or suitable wall plug and screw size 6. 1 Fire damper with KIT (factory fitted) 2 Kit base plate - fixed directly onto the wall 3 Concrete/masonry/cellular concrete wall or ceiling 4 Flexible (plasterboard) wall 4a 2 layers of plasterboard fireproof plate type F, EN 520 4b Vertical CW –...
  • Page 84 FDS-3G Electrical connections...
  • Page 85 FDS-3G Electrical connections Type of activation H2-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch:Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A NOTES: •...
  • Page 86 FDS-3G Electrical connections Type of activation H5-2-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC (50/60 Hz)/DC 24 V...
  • Page 87 FDS-3G Electrical connections Type of activation H6-2-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Microswitch: Power Supply: AC 125/250 V or DC 12/24 V Electric Parameters: 3A Impulse Electromagnet: Power Supply: AC 230 V, 50/60 Hz...
  • Page 88 FDS-3G Electrical connections Type of activation B230T-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC 230 V, 50/60 Hz NOTES: •...
  • Page 89 FDS-3G Electrical connections Type of activation B24T-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. Actuator power supply: AC (50/60 Hz)/DC 24 V NOTES: •...
  • Page 90 FDS-3G Electrical connections Type of activation B24T-W-KS IMPORTANT: Danger of electric shock! Switch off the power supply before working on any electrical equipment. Allow only qualified electricians to work on the electrical system. This type of activation is with provided cable connectors for the supply and communication unit (communication unit not part of the mechanism).
  • Page 91 FDS-3G Operation Manual Warning To avoid injury, make sure to wear gloves and keep the blades movement area clear while manipulating with the damper. NEVER OPEN THE INSPECTION LID WHEN THERE IS AIR FLOWING IN THE DUCT CONNECTED TO THE FIRE DAMPER! Fire Damper Functionality Check Manually Operated Activation Mechanism...
  • Page 92 FDS-3G Operation Manual Damper Inspection The activation mechanism keeps the dampers on stand-by during their entire life cycle in accordance with this manual issued by the manufacturer. It is not permitted to alter the dampers in any way nor perform any changes to their structure without the manufacturer’s consent.
  • Page 93 THIS CATALOG IS INTELLECTUAL PROPERTY. The partial or total reproduction of its contents is forbidden without the express and reliable authorisation of KOOLAIR, S.L. CEN-FDS-3G-0723-00 KOOLAIR, S.L. Calle Urano, 26 Poligono industrial nº 2 – La Fuensanta 28936 Móstoles - Madrid - (Spain)
