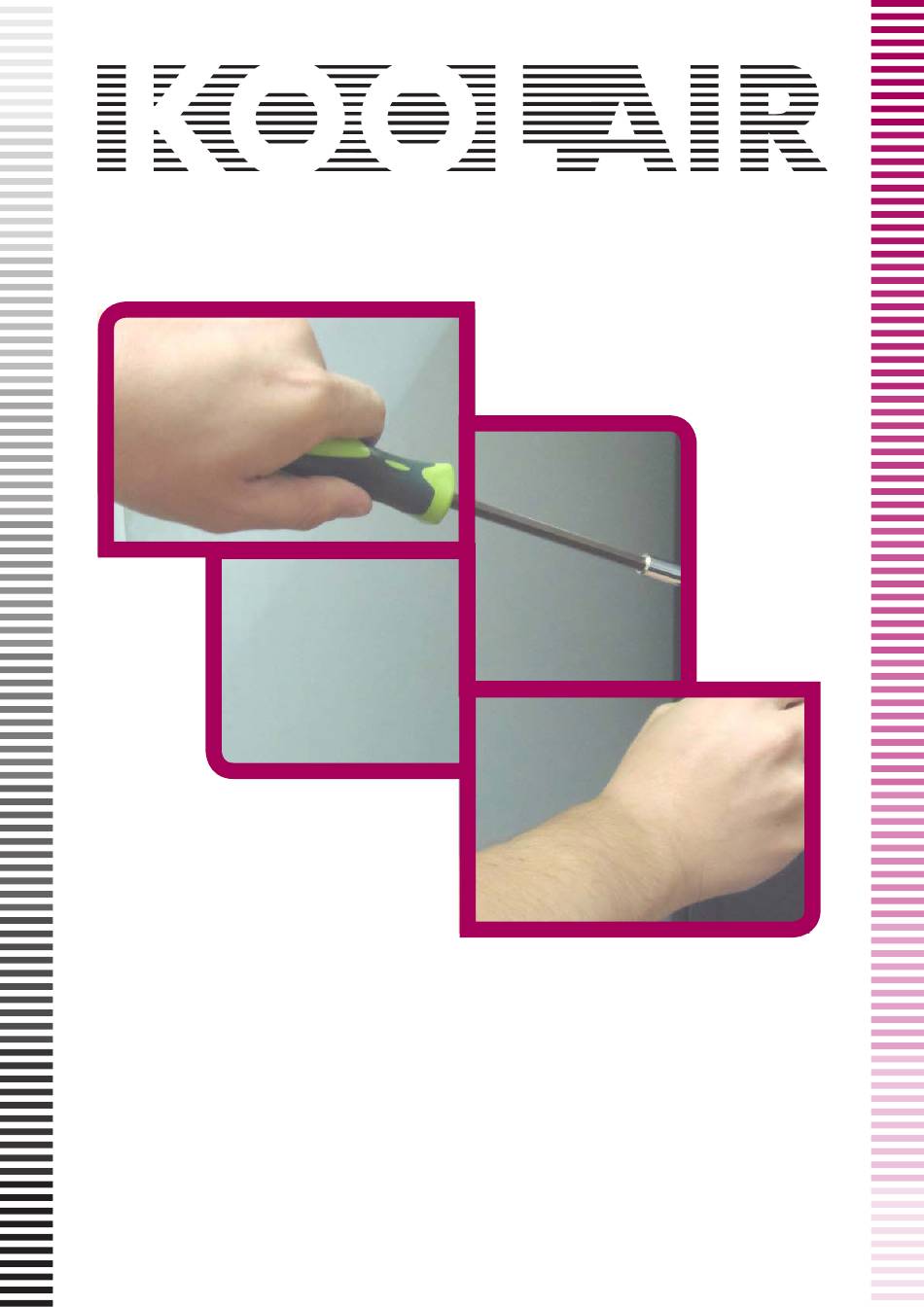

- Page 1 Smoke evacuation damper CEVH CEVH-1P-DECO Mounting instructions www.koolair.com...
-
Page 2: Table Of Contents
General characteristics of smoke evacuation dampers Declaration of smoke evacuation performance CEVH damper drawing, dimensions and free area CEVH 1P DECO damper drawing, dimensions and free area Installation and assembly (CEVH) Installation and assembly (CEVH 1P DECO) Installation and assembly: Mounting sub-frame... -
Page 3: Product Type Regulatory Designation
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions PRODUCT TYPE REGULATORY DESIGNATION. CEVH 1P DECO CEVH 1P DECO CEVH Remote Control Remote Control Remote Control 24/48 VDC 24/48 VDC 24/48 VDC Duct Type 24/48 VAC 24/48 VAC 24/48 VAC 220 VAC 220 VAC... -
Page 4: Certified Characteristics Specific To The Product Type
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions CERTIFIED CHARACTERISTICS SPECIFIC TO THE PRODUCT TYPE CE certified characteristics CEVH CEVH-1P-DECO Operating mode Stored energy CONTROL MODE Control mode Remote control (shunt release) + manual reset Remote control (shunt release) + Not applicable... - Page 5 CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions CERTIFIED CHARACTERISTICS SPECIFIC TO THE PRODUCT TYPE CE + NF certified characteristics CEVH Operating mode Stored energy CONTROL MODE Control mode Remote controlled (shunt release) + manual reset Remote control (shunt release) + Not applicable...
-
Page 6: General Characteristics Of Smoke Evacuation Dampers
See pages 7 and 8 FIRE RESISTANCE CLASSIFICATION CEVH: EI 120(Ved i ↔o) S 1500 AA multi Fire resistance rating CEVH-1P-DECO: EI 120(Ved i ↔o) S 1500 AA C300 multi CEVH: RPK protective grille Installation type CEVH-1P-DECO: RPK protective grille or concealment plate... -
Page 7: Declaration Of Smoke Evacuation Performance
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions DECLARATION OF SMOKE EVACUATION PERFORMANCE Dimensions Installation Installation Classification (mm) location Vertical CEVH duct L: 400 → 1100 EI 120 (Ved i↔o) S 1500 Smoke 1366-8 H: 400 → 1100 AA multi (500Pa) exhaust duct... -
Page 8: Cevh Damper Drawing, Dimensions And Free Area
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions CEVH DAMPER DRAWING, DIMENSIONS AND FREE AREA Product labelling DIMENSIONS AND OPENINGS Nominal length External length Nominal height External height Ln [mm] Lht [mm] Hn [mm] Hht [mm] 1000 1029 1000 1029 1050 1079... -
Page 9: Cevh 1P Deco Damper Drawing, Dimensions And Free Area
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions CEVH-1P-DECO DAMPER DRAWING, DIMENSIONS AND FREE AREA-SECTION Product labelling CEVH-1P-DECO with RPK grille CEVH-1P-DECO with Concealment Plate Nominal Nominal External length Lt [mm] External height Ht [mm] length Ln height Hn [mm] DECO [mm]... -
Page 10: Installation And Assembly (Cevh)
Installation in a duct whose internal dimensions are 1,100 mm (width) x 1,100 mm (height) maximum, 52 mm thick Promatect L500 shaped plate. Use of the CEVH damper in installations with ducts other than those tested under certified conditions: For multi-compartment systems (multi), ducts tested according to the EN standard were used in each case, or ducts made from a material with a density equal to or greater than those used in the certification tests. -
Page 11: Installation And Assembly (Cevh 1P Deco)
Frame Ln + 110 > 110 Use of the CEVH-1P-DECO damper in installations with ducts other than those tested under certified conditions: For multi-compartment systems (multi), ducts tested according to the EN standard were used in each case, or ducts made from a material with a density equal to or greater than those used in the... -
Page 12: Installation And Assembly: Mounting Sub-Frame
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions INSTALLATION AND ASSEMBLY: MOUNTING SUB-FRAME Caution: • Make sure that the sub-frame is perfectly square before installing. • Fix the sub-frame to the duct with 4 screws (supplied with the frame). • Drill a hole in the duct for the connection cables to pass through. -
Page 13: Installation And Assembly: Fitting The Damper
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions INSTALLATION AND ASSEMBLY: MOUNTING THE DAMPER · Fix the damper into the sub-frame. The damper’s folding legs will act as a stop. · Fix the damper to the sub-frame with 4 screws (supplied with the damper). -
Page 14: Installation And Assembly: Fitting The Rpk Grille
CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions INSTALLATION AND ASSEMBLY: INSTALLING THE RPK GRILLE x4 Screw Ø 3.9x38 DIN... -
Page 15: Electrical Connections
FCB: Two pole end limit switch contact (safety position) DCB: Two pole start limit switch contact (standby position) Triggering: CEVH-1P-DECO: Triggered by open-circuit shunt release (CEVH and CEVH-1P-DECO) or closed-circuit shunt release (CEVH) with manual/motor-driven reset: Available shunt releases: 24 Vcc 48 Vcc... - Page 16 CEVH/CEVH-1P-DECO Smoke evacuation dampers Installation instructions ELECTRICAL CONNECTIONS CEVH CONNECTION: Connection box 2 Connection box 3 FCU* Lock FCB* * Only for model CEVH-1P-DECO (SINGLE POLE CONTACTS): MOTOR (OPTIONAL) B-EMI CEVH-1P-DECO (TWO POLE CONTACTS) Connection box 2 Connection box 3...
-
Page 17: User Instructions
The front part must have a protection grille (CEVH and CEVH-1P-DECO) or a fibrosilicate plate (CEVH-1P-DECO) to preserve the degree of fire-cut. Note: Sense of indifferent air (extraction and supply of air). To manually operate and rearm the CEVH and CEVH 1P DECO gates, proceed according to the following illustrations: CEVH :... -
Page 18: Maintenance And Guarantee Instructions
(See page 14: “Electrical connections”). MAINTENANCE AND GUARANTEE INSTRUCTIONS. The CEVH damper does not require any specific maintenance. Perform at least one functional check per year. Koolair will not be held liable if the assembly, installation and electrical connections have not been carried out in accordance with these technical instructions. - Page 19 This document is protected by intellectual property rights. Partial or total reproduction of its contents without proof of formal permission from KOOLAIR SL is forbidden. CEN-MICEVH-0419-00...
- Page 20 28936 Móstoles (MADRID) Tel: +34 91 645 00 33 Fax: +34 91 645 69 62 e-mail comercial: comercial@koolair.com e-mail Koolair: info@koolair.com www.koolair.com Koolair, S.L. reserves the right to change publisher datas and drawings at any time without prior notice written.
