Page 1: Table Of Contents

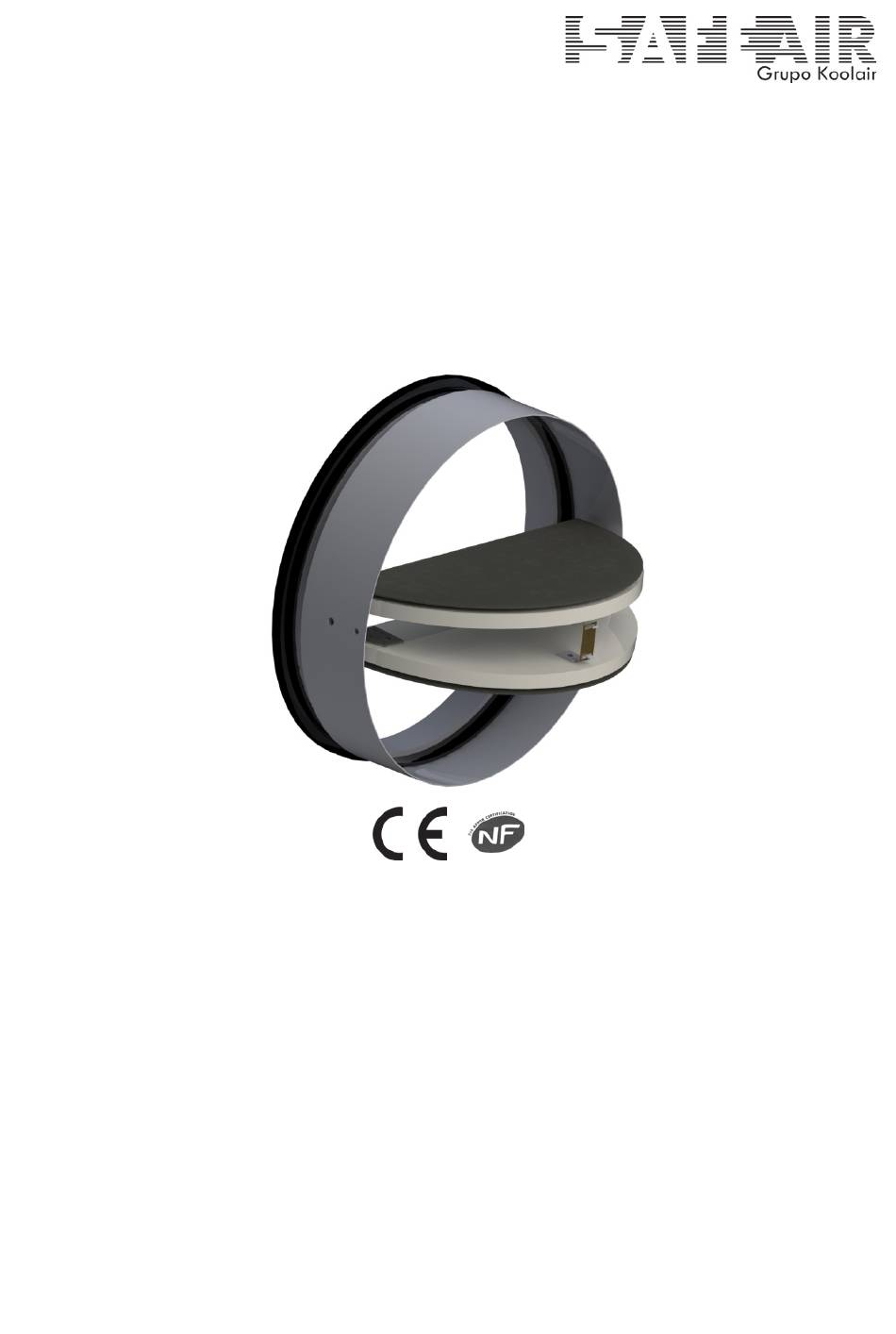

TECHNICAL DOCUMENTATION BDK60 / BDK120 Fire damper 0370 TABLE OF CONTENTS: Regulatory Designation page 2 Certified characteristics page 2 General characteristics page 2 Fire resistance rating page 3 Overview - Dimensions page 4 Free Area page 5 Certification page 5 Marking page 6 Storage and handling... -
Page 2: Regulatory Designation
REGULATORY DESIGNATION Damper BDK-60 BDK-120 Remote Controlled CERTIFIED CHARACTERISTICS Damper BDK-60 BDK-120 Operating mode Intrinsic energy Control mode Remote controlled (auto) by fusible link set to 72º C Remote Control Mode Modularity GENERAL CHARACTERISTICS General characteristics of the fire dampers Obligation: CE characteristics Change to safety mode by fusible link. -
Page 3: Fire Resistance Rating
FIRE RESISTANCE RATING (EN13501-3) BDK-60 Dimensions Support work Placement of Installation Classification (mm) details the Installation 0370 d = 150 mm Ceramic Ø: 100 → 200 Mortar ρ = 1900 Kg/m brick wall EI 60 (ve i → o) S Ø: 100 →... -
Page 4: Overview - Dimensions
PRESENTATION The round end dampers are installed inside the round ducts in the wall pass-through to prevent fire propagation. There are two types of dampers: BDK 60: Fire stability of 60 min. BDK 120: Fire stability of 120 min. 1. Collar 2. -
Page 5: Free Area
FREE AREA (dm CERTIFICATION All dampers have undergone appropriate testing by the official institutes. The following certification was issued based on the results obtained: Europe: EN 15650:2010 classification In addition to the aforementioned requirements, the BDK60 and BDK-120 models also comply with the French regulations NF-S 61-937-1 and NF-S 61-937-5, obtaining the certification corresponding to reference NF 537: - Compliance with the standard NF S 61-937 Parts 1 and 5: “Fire Safety Systems-- Actua-... -
Page 6: Marking
MARKING 1: NF Marking 2: CE Marking 3: Separate from marking to affix to duct STORAGE AND HANDLING Because it is a safety component, it must be stored and handled with caution. It is necessary to prevent it from deterioration, contact with water and damage during installation. - Page 7 FLEXIBLE WALL DIFFUSER FRAME BDK DAMPER (OPTIONAL) DIFFUSER (OPTIONAL) DUCT MOUNTING RING 3 GYPSUM PLATES ROCKWOOL GYPSUM PLATE FRAME FIRE SIDE min 100 CHECK THAT THE DIFFUSER SCREW DOES NOT INTERFERE WITH THE BDK DAMPER...
- Page 8 RIGID WALL DIFFUSER FRAME (OPTIONAL) BDK DAMPER DIFFUSER (OPTIONAL) DUCT MOUNTING RING RIGID WALL FIRE SIDE CHECK THAT THE DIFFUSER SCREW DOES NOT INTERFERE WITH THE BDK DAMPER...
-
Page 9: Operation
OPERATION The BDK damper remains open because of the fusible link. When the temperature exceeds 72ºC, the fusible link blows and the blade closes automatically. Two steel bands ensure that the damper remains closed. 1. Remove the damper from the duct; to 2. -
Page 10: Postsales Kit
POSTSALES KIT - Fusible link - Options for unipolar limit micro-switch and support (*) Dampers BDK-60 / BDK-120 are certified to and equipped with two micro- switches (one for each blade) to reliably signal the safety position. -
Page 11: Electrical Connections
ELECTRICAL CONNECTIONS (*) Connections in dampers BDK-60 / BDK-120 certified to must be made in a junction box, reference 3050 (FAMATEL) supplied with the damper. Cross sections and number of compatible electrical conductors Number of Activation Certification Section min. Section max. conductors TH70 TH70 + FCU... -
Page 12: Technical Data
TECHNICAL DATA Designation BDK-120 BDK-60 Type of product / Family End round fire damper Certificate 16-0370-CPR-2459 16-0370-CPR-2460 Obligation Remove from the duct to reset Operation Automatic Command mode Controlled by fusible link set to 72ºC Air circulation direction Dimensions Ø100 to Ø200 mm. See page 4 Nominal activation conditions / Pass sensitivity...
