ASSEMBLY RATING
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
assembling a specific product (with 1 being
easy and 5 being difficult). For some
products, two persons are recommended.
EASY

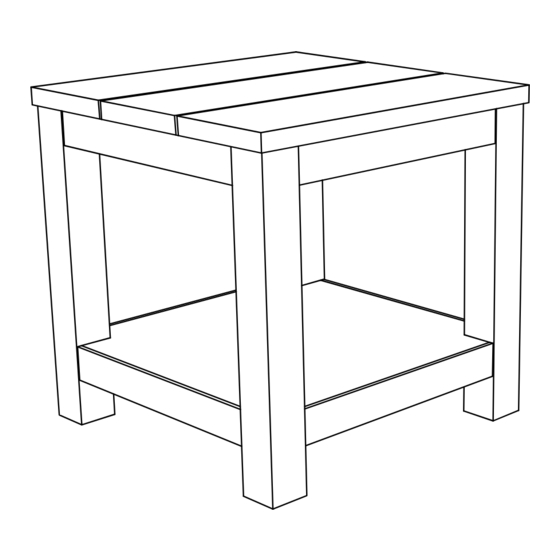

Assembly Instructions
CM4910E
DIFFICULT
Tools Required For Assembly:
Allen Wrench
2 PERSONS RECOMMENDED
Page 1 of 4
(Included)
Rev: 19-07-09
Advertisement
Table of Contents
Related Manuals for Furniture of America CM4910E
Summary of Contents for Furniture of America CM4910E
- Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM4910E ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
- Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 4...
- Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. Bolt 1/4" x 2 3/8" Table Top Spring Washer M6 Bottom Shelf Table Leg Flat Washer M6 Allen Wrench M4 Page 3 of 4...
- Page 4 DO NOT FULLY TIGHTEN ALL BOLTS UNTIL ALL PARTS ARE COMPLETELY ASSEMBLED. REMARK: DO NOT FULLY TIGHTEN THE BOLTS UNTILL ALL PARTS ARE COMPLETELY BEEN #A x 8pcs ASSEMBLED #B x 8pcs #C x 8pcs #D #A SOFT SURFACE Align legs (#3) to shelf (#2) and top (#1), then secure by using bolts (#A) with washers (#B,C).
