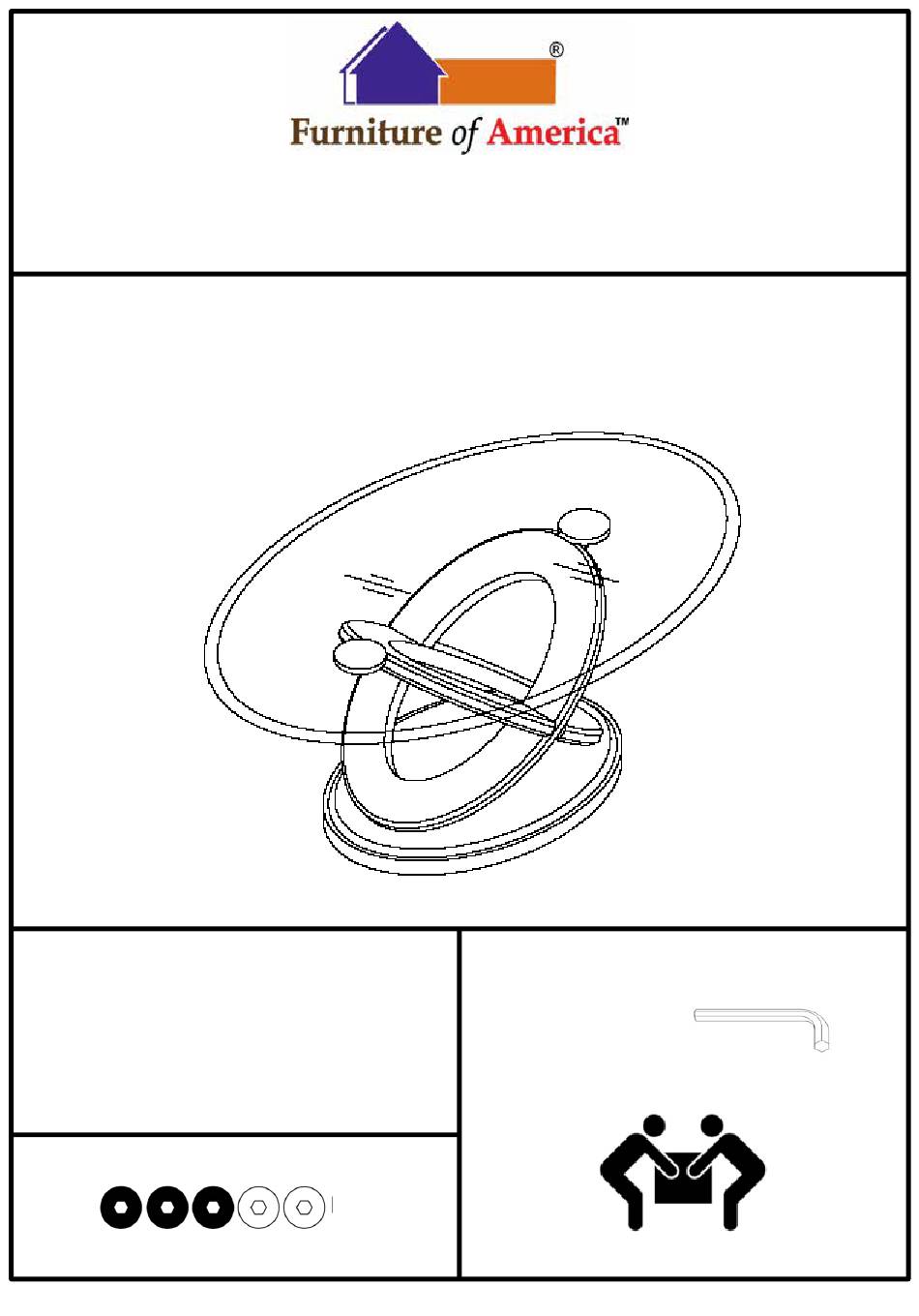

Assembly Instructions
CM4401C
ASSEMBLY RATING
Tools Required for Assembly:
The Assembly Rating is a 5-point system that
shows the degree of effort needed in
Allen Wrench
assembling a specific product (with 1 being
(Included)
easy and 5 being difficult). For some
products, two persons are recommended.
DIFFICULT
EASY
2 PERSONS RECOMMENDED
Page 1 of 6
Rev.14-07-28
