MJX HYPER GO 14210 User Manual

1:14 rc high speed car 4wd remote control
Hide thumbs

Advertisement

Quick Links

Download this manual
14+
No.14210
1:14 RC HIGH SPEED CAR

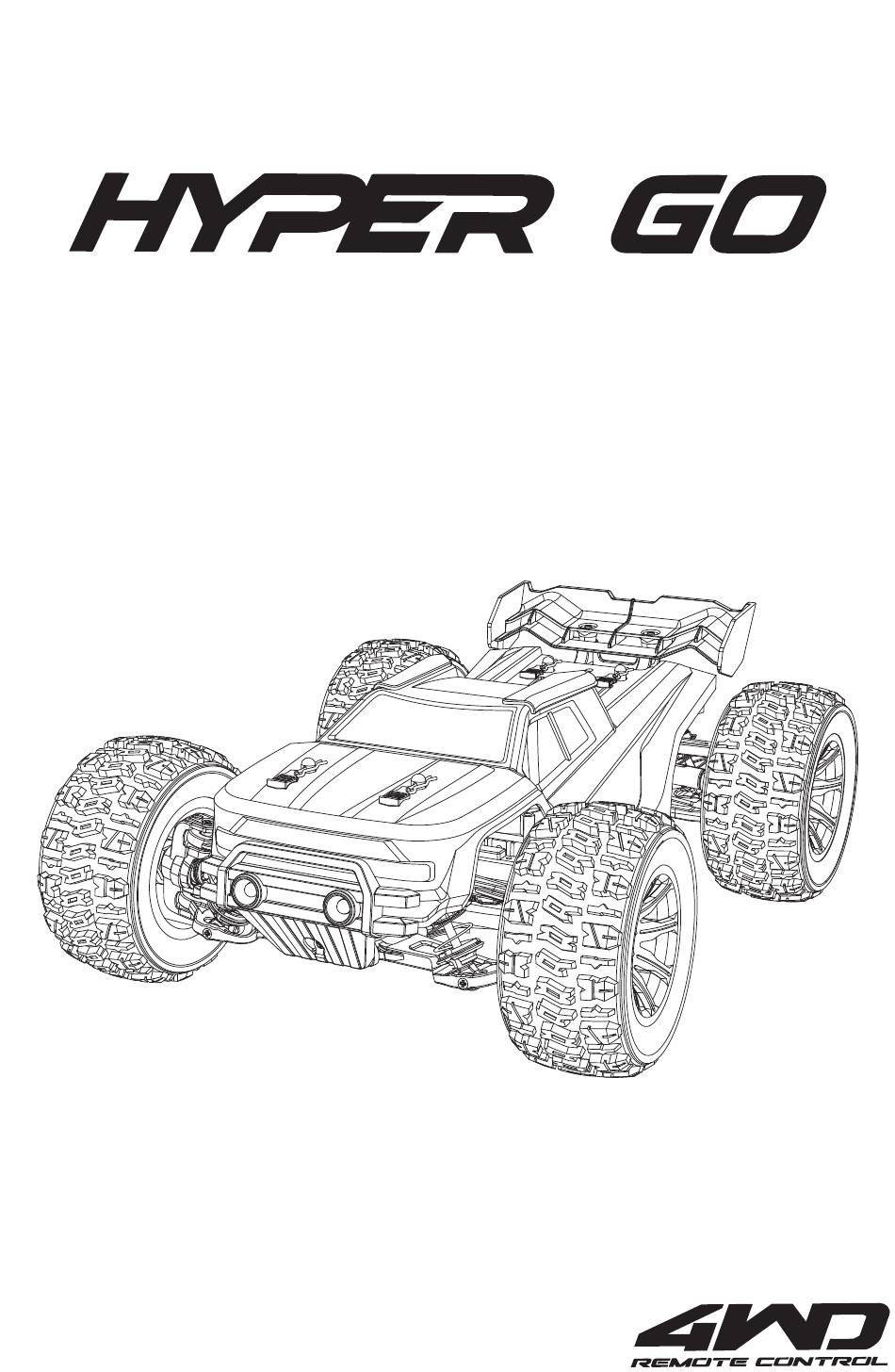

USER MANUAL
V2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the HYPER GO 14210 and is the answer not in the manual?

Questions and answers

josef hudy
March 16, 2025

wie kann ich teile z.B. 16420G bestellen

0
1 comments:
Mr. Anderson
March 16, 2025

You can order parts for the MJX Hyper Go 14210, including part number 16420G, from the website Serious RC. The part is listed as MJX Hyper Go 14209 14210 Front/Rear Differential and is in stock for £14.99. To purchase, visit the website, find the part, and add it to your cart for checkout.

This answer is automatically generated

0

Related Manuals for MJX HYPER GO 14210

Summary of Contents for MJX HYPER GO 14210

  • Page 1 No.14210 1:14 RC HIGH SPEED CAR USER MANUAL V2.0...

  • Page 2: Warnings And Cautions

    The instruction sheet for this product is just for your reference. We reserve the right to make changes or adjustments on the product without prior notification. Please refer to the official information. Warning: Choking hazard! This product contains small parts. NOT suitable for children under 3 years. Contains electrical components and should be kept dry at all times.
  • Page 3 ●Be sure to read thoroughly ●Cutters, nippers and ●As the product contains the manual before you screwdrivers need careful small and sharp parts, begin. Fresh user should handling. assemble and store this seek advice from people product only in places having rich experience in out of the reach of children.
  • Page 4 FCC PART 15 B Notice: CAUTION Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 5 电池使用注意事项 1. 遥控器使用2节1.5V“AA”号电池； 2. 安装或更换电池时请注意极性； 3. 充电电池只能在成人监护下充电； 4. 不可混用新旧或不同型号的电池； 5. 电池电量用尽后,应从模型内取出； 6. 将耗尽电量的电池交给专门的环保部门处理! 7. 接线端不应短路； 8. 非充电电池不可充电; 9. 充电电池充电前应从模型中取出; 10. 请不要将坏的电池、电池组分解或扔到火中、水里,以免发生意外; 11. 充电器的额定输入电压必须与当地的家用电压相符; 12. 在充电过程中,充电器和电池出现微温,属于正常现象。 13. 不可吞咽电池! 14. 将电池放在凉爽、干燥避光及小孩接触不到的地方! 15. 电池漏液而且滴到眼睛里,请马上用大量的清水清洗,然后到附近的医院就医。 Power Switch 开关 1. Turn on the power switch of the transmitter, the signal indicator light of transmitter flashes.
  • Page 6 R30 Receiver 接收器 VCC/FAN VCC/FAN 风扇 VCC/FAN VCC/FAN (VCC/FAN) Antenna (Please make sure it in vertical direction) 天线 Front bumper (务必保持竖直状态) 前防撞架 (CH3) 电调 VCC/FAN: Power Interface (CH2) (VCC=5-6V) VCC/FAN: 供电接口(VCC=5-6V) Indicator Meanings situation 含义 指示灯状态 Stays on Signaled Steering 常亮...
  • Page 7 E45AZ Brushless ESC 电调 Please Do Not forcible/reversely insert all sockets. 所有插座请勿强行反插。 Indicator 指示灯 Power switch 电源开关 VCC/BVD Heat sink 散热片 Yellow wire A 黄线A White wire B 白线B Blue wire C 蓝线C Indicator light situation Meanings 指示灯状态 含义 Stays on Signaled 常亮...
  • Page 8 T3B Transmitter 遥控器 ①ST.TRIM (Steering servo strimmer) ST.TRIM（转向舵机微调） ②TH.TRIM（Throttle trimmer) TH.TRIM（油门中位微调） ③Power switch 电源开关 (OFF-70%TH-100%TH) ④Indicator light 指示灯 ⑤CH1： ST （Steering) CH1： ST （转向） ⑥CH2： TH （Throttle) CH2： TH （油门） ⑦Fn（CH3 Light control) Fn（CH3灯控） ①ST.TRIM (Steering servo strimmer 转向舵机微调) If the car cannot go straightly during driving, it can be adjusted through the ST.TRIM. 车辆行驶过程中如无法直线行驶，可通过此微调进行调整。...
  • Page 9 ③Power/Speed switch ④Indicator light 电源/速度档位开关 指示灯 Stays on Working well 常亮 正常 Flash quickly Frequency mating 快闪 对码状态 Low battery 100% Flash slowly of transmitter (关) (70% Throttle) (100% Throttle) 慢闪 遥控器电池电量低 (70%油门) (100%油门) ⑤CH1：ST (Steering 转向) Middle Turn left Turn right 中位...
  • Page 10 ⑦Fn (CH3 Light control 灯控) Short Press the “ ” button to turn on/off the light of high speed car. 短按“ ”按键时，控制高速车灯光开启或关闭。 Install the Transmitter’ s Battery 遥控器安装电池 Open the transmitter’s battery cover, insert 2 AA batteries according to the indicated positive and negative direction, close the battery cover.
  • Page 11 Install the Tail 安装尾翼 Install the tail to the rear shock tower, lock with 4 screws. 将尾翼安装到后避震架，用4颗螺丝锁紧尾翼。 Install the Battery 安装电池 ①Unlock the fixing tape; 将固定带解开； ②Insert the battery into the battery box, make sure it’s in place; 将电池放入电池座，确保安装到位； ③Tighten the battery with the fixing tape; 将固定带绑紧电池；...
  • Page 12 Charge 充电 If charging with a 5V 2A USB adapter. When charging, the indicator light of charger is green and flashes; ● When the battery is fully charged, the green indicator light of the charger stays on. ● *The above charging time data is based on the test result of 5V 2A adapter. Using different specifications of adapters or power supply equipment will affect the actual charging time.
  • Page 13 Install Car Shell 安装车壳 1. Aline the 4 holes of the car shell with holders, then install it. 将车壳4个孔位对准车壳支架装入。 2. Insert the 4 clips into the holes to lock the car body. 将4个车壳扣插入锁紧车壳。 -12-...
  • Page 14 14200B Front Swing Set 前摆臂组件 Screw 螺丝： Q1601 14210B M26124 M26124 2.6x12.5mm 2PCS Countersunk flat head screws 沉头平尾螺丝 14230B R168Z 14200B Bearing 轴承： R168Z 2PCS Ball bearing 滚珠轴承 14220B Q1601 R168Z Pivot balls 球头： Q1601 2PCS M26124 Steering pivot balls 球头...
  • Page 15 16420G Front Gears Diff Assembly 前差速器 Screw 螺丝： Bearing 轴承： M2123 2x12mm 4PCS R1810 2PCS Round head screws Ball bearing 滚珠轴承 圆头平尾螺丝 16421 R1810 R1810 M2123 16420G Lubricating Oil 润滑油 16421 M2123 16420G2 Rear Diff Assenbly 后差速器 Screw 螺丝： Bearing 轴承： M2123 2x12mm 4PCS...
  • Page 16 ESC Fan 电调风扇 Screw 螺丝： M2516 M2516 2.5x16mm 2PCS Machine screws 机丝螺丝 16397B E45AZ 14500B/14510B Oil Filled Shock 油压避震 Add shock oil 添加避震油 Shock absorbers adjuster 避震调节器 Spin the suspension adjuster to adjust the shock absorbers’ strength. 可旋转避震调节器以调整避震力度。 14510B 14500B 14700B Servo Assembly 舵机组件...
  • Page 17 B2852A & 16397 Motor Assembly 电机组件 Screw 螺丝： M3156 M3080 3x8mm 2PCS Screws 半圆头内六角螺丝 M3156 3x15mm 2PCS Machine screws 机丝螺丝 M3030 3x3mm 1PCS 16397 Hexagon socket machine screw 内六角机丝螺丝 16395C B28521 B2852A & 16397 14392B 14393 M3030 M3080 14430B Steering Assembly 转向传动组件 Screw 螺丝：...
  • Page 18 14100C Front Bumper Assembly 前防撞组件 Screw 螺丝： M2666 2.6x6mm 2PCS Round head screws 圆头平尾螺丝 14100C M2666 -17-...
  • Page 19 High Speed Car Assemble 高速车总装 M26104 M26104 14180B M2684 M26104 M26104 14150B 14150B 14190B E45AZ 14160 M2684 16420G2 16420G 16420G 14400G 1413Q9 B2852A M2666 & 16397 M23124 M23124 Screw 螺丝： M26104 2.6x10mm 16PCS Round head screws 14430B 圆头平尾螺丝 14191B M2666 2.6x6mm 4PCS 14700B...
  • Page 20 -19-...
  • Page 21 -20-...
  • Page 22 -21-...
  • Page 23 High Speed Car Assemble 高速车总装 Iron shaft 铁轴： M20101 1PCS（4PCS） Wheel hex pins 六角套铁轴 16440 1PCS（4PCS） Wheel hex 六角套 Nut 螺母： M20101 1PCS（4PCS） 16440 M4 Wheel lock nut M4螺母 14300E2 Front 车头 14300E1 Install the tyres on the corresponding side according to the diagram.
  • Page 24 Spare Parts 配件表 1430D1 1430D2 14100C 14110C Front Bumper Body Body Rear Bumper Assembly 车壳组件(黑) 车壳组件(金) 后防撞 前防撞组件 14120 1412A 14300B 14310B Wheelie Bar Tail Chassis Center Brace Bar Assembly 尾翼 底盘 中支撑杆 抬头轮 14320B 14130B 14150B 14160 Front Support Front Upper Center Shelf Chassis Parts...
  • Page 25 Spare Parts 配件表 14161 14170B 14180B 14280B Front Under Front Shock Rear Shock Front Body Gearbox Covers Tower Tower Pillars 前差速底座 前避震架 后避震架 前车壳支架 14281C 14190B 14191B 14210B Front Upper Rear Upper Front Under Rear Body Pillars Suspension Arms Gearbox Covers Gearbox Covers (Including Ball Head) 后车壳支架...
  • Page 26 Spare Parts 配件表 14260B M25425 M1440 14701B F/R Lower Swing F/R Reinforced Rear Hubs Servo Arm Fixed Shaft Sheet 后固定座 舵机 下摆臂固定轴 前后加强件 14702B 14430B 16431 14432B Servo Saver Steering Steering Linkage Connecting Rod Assembly Assembly 转向拉杆 转向连杆 (2PCS) 舵机离合摆臂 转向传动组件...
  • Page 27 Spare Parts 配件表 16395C 16397 16420G 16420G2 Front Gears Diff Rear Diff Motor Heatsink Motor Fan Assembly Assenbly 散热片 风扇 前差速器 后差速器 14401G 16402G 14403B E45AZ Spur Gear Drive Gear Centre Drive Brushless ESC Assembly (Metal) (Metal) Shaft 无刷电子调速器 传动主齿轮组件(金属) 前锥齿(金属) 主轴...
  • Page 28 Spare Parts 配件表 14500B 16410 14410B M20101 Oil Filled Shock Metal F/R CVD Wheels Drive Wheel Hex Pins Shafts Shaft (Rear) (2 Sets) (2 Sets) 六角套铁轴 (8PCS) 油压避震(后) 轮胎转动组件 轮胎转动组件 16440 14300E1 14300E2 M4 Wheel Lock Wheel Hex Wheel Assembly Wheel Assembly 六角套...
  • Page 29 Spare Parts 配件表 M0522 P812 P810 S4092 Hexagonal Steering Shaft Screwdriver 机米螺杆 (12PCS) Wrench 螺丝刀 转向轴 (2PCS) 六角扳手 R1810 R168Z Q1601 Q1602 Steering Pivot Steering Pivot Ball Bearing Ball Bearing Balls Balls 滚珠轴承 滚珠轴承 (8PCS) (8PCS) 球头 球头 (8PCS) (8PCS) M2523 M3294 M2123...
  • Page 30 Spare Parts 配件表 M2666 M2684 M26104 M26154Y Round Head Round Head Round Head Round Head Screws Screws Screws Screws 圆头平尾螺丝 圆头平尾螺丝 圆头平尾螺丝 圆头平尾螺丝 (12PCS) (12PCS) (12PCS) (12PCS) M23124 M26945 M26124 M4127 Countersunk Flat Countersunk Flat Countersunk Flat Machine screws Head Screws Head Screws Head Screws 机丝螺丝...
  • Page 31 MADE IN CHINA Instructions must be retained since it contains important information.
