CALEFFI SEP4 5495 Series Installation, Commissioning And Servicing Instructions

SEP4™ 4-in-1 hydraulic, air, dirt
and magnetic separator, ANSI flanged
© Copyright 2018 Caleffi
Installation, commissioning and servicing instructions
100% of the ferrous impurities, including magnetite, that can form in a hydronic system. The SEP4™
has 2½ times the ferrous impurities removal performance of standard air and dirt separators.
These items are designed for use in closed hydronic systems. Do not use in plumbing applications. These
items do not meet the low-lead plumbing standards of U.S. and Canada.

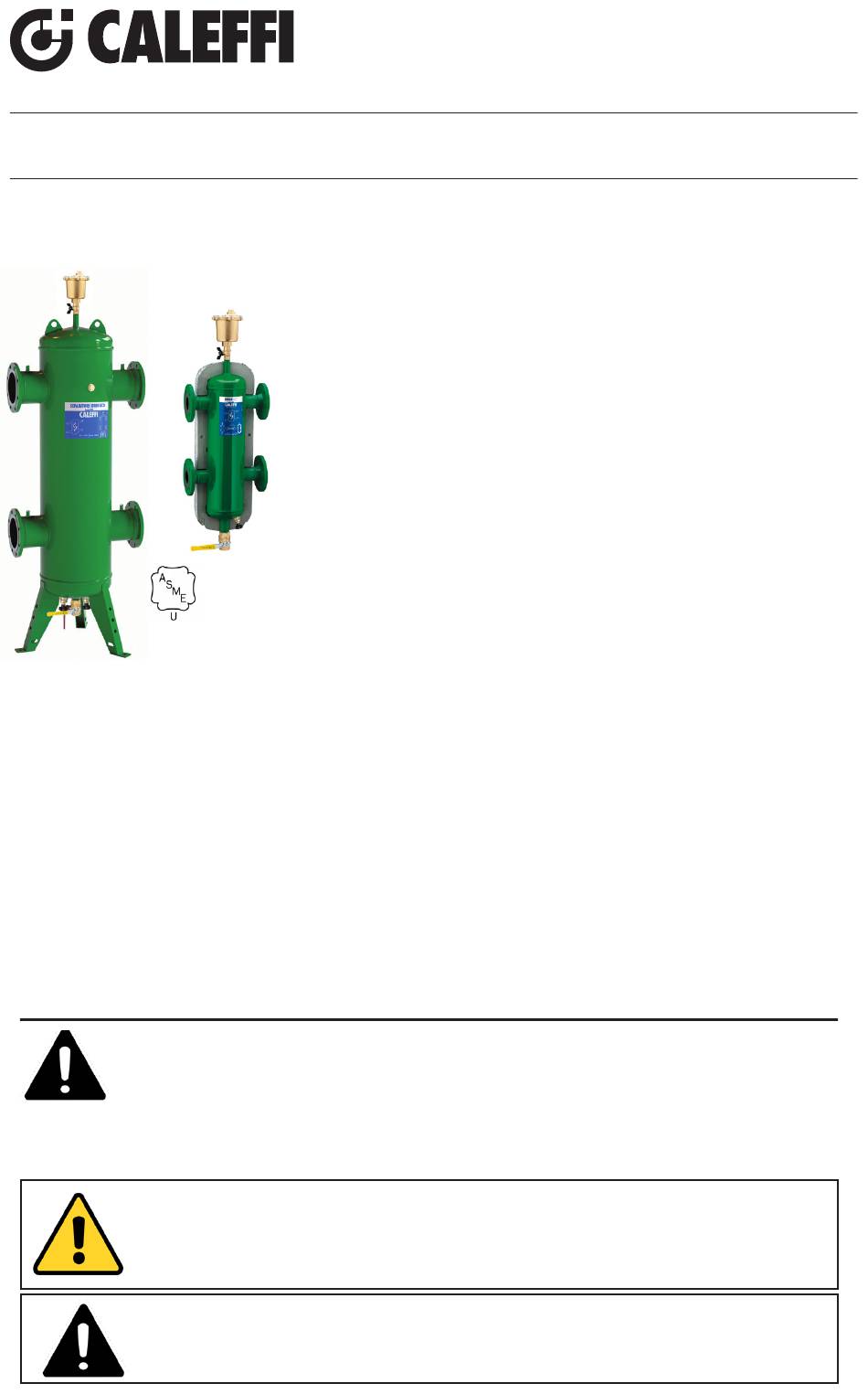

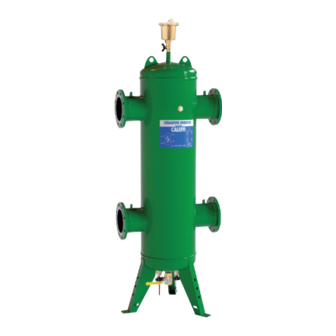

Product range

5495 series SEP4™
with flanged connections, drain and insulation
NA549_M series SEP4™
connections and drain, ASME
-pre-formed insulation shell included on 2" – 4" sizes.
-CRN approval for 2" – 8" sizes; consult factory for 12-14" sizes.
SAFETY INSTRUCTION
This safety alert symbol will be used in this manual to draw attention to safety related instructions.
When used, the safety alert symbol means ATTENTION! BECOME ALERT! YOUR SAFETY IS
INVOLVED! FAILURE TO FOLLOW THESE INSTRUCTIONS MAY RESULT IN A SAFETY HAZARD.
WARNING: This product can expose you to chemicals including lead, which is known
to the State of California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov.
CAUTION: All work must be performed by qualified personnel trained in the
proper application, installation, and maintenance of systems in accordance
with all applicable codes and ordinances.

Function

The Caleffi SEP4™ combination separator is a device that
incorporates four critical functions for hot or chilled water systems.
It combines high performance air and dirt (magnetic and non-
magnetic) removal into the hydraulic separation function which makes
the primary and secondary circuits connected to it hydraulically
independent. The SEP4™ features an internal coalescing element
that continuously and automatically eliminates air micro-bubbles with
the simultaneous removal of dirt particles as tiny as 5 microns. The
air discharge capacity is very high, with the capability of automatically
removing all the air present in the system down to the micro-bubble
level. The 4-in-1 high performance functionality of the SEP4™ saves
system installation and maintenance costs as there is no need to
include separate air and dirt separators. In addition to removing solid
impurities in the system without isolating the separator or shutting
down the system, the added powerful removable external magnet
belt (union) or probe(s) (flanged) in the lower body removes up to
hydraulic, air, dirt and magnetic separator in steel
hydraulic, air, dirt and magnetic separator in steel with flanged
www.caleffi.com
5495, NA549_AM Series
1
38712.07
connections 2" – 4" ANSI
connections 2" – 14" ANSI
