Manual cleaning magnetic dirt separator
© Copyright 2018 Caleffi

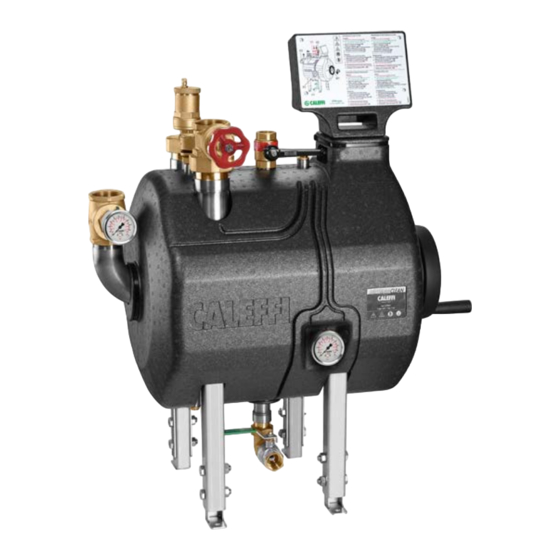

Operating principle
The manual cleaning dirt separator is used in central heating
systems to remove dirt and impurities from the circuit, progressively
and completely.
The device operates through the continuous action of special
filtering elements, located in a chamber through which the system
water flows. The very fine filter mesh progressively intercepts
particles down to 2 μm in diameter. At the same time, ferrous
particles are separated out by magnets on the surface of the filter
element.
Cleaning of the filtering elements takes place mechanically, with
manual action, by means of the handwheel provided and washing
with pressurised mains water while the filtering elements rotate.
CONTENTS
H0006360
www.caleffi.com
Code 579001
2
3
6
7
8
9
10
11
12
Advertisement
Table of Contents
Related Manuals for CALEFFI 5790 Series
Summary of Contents for CALEFFI 5790 Series
-
Page 1: Table Of Contents
H0006360 www.caleffi.com Manual cleaning magnetic dirt separator Code 579001 © Copyright 2018 Caleffi INSTALLATION AND COMMISSIONING MANUAL CONTENTS Product range Characteristic components Package content Technical specifications Sizing Operating principle Intended use Packing, handling, transport Installation Cleaning Maintenance Use of additives... -
Page 2: Installation And Commissioning Manual
Aprire la valvola di ingresso Aprire la valvola di ingresso 5790 series 1 Aprire lentamente la valvola di ingresso 1 Aprire lentamente la valvola di ingresso Series 579 www.caleffi.com... -
Page 3: Operating Principle
1 Aprire la valvola di lavaggio 2 Attendere che la pressione e chiudere la valvola di lavaggio Series 579 5790 series 1 Aprire lentamente la valvola di ingresso Aprire la valvola di ingresso 1 Aprire lentamente la valvola di ingresso Aprire la valvola di ingresso www.caleffi.com... - Page 4 Filtration During normal operation, the medium coming from the system enters in the strainer body through ball valve V1. The medium is forced to pass through the filtration discs, then it is conveyed into the central part until it comes out of the device through the clapet check valve. Inlet from the system System return Clapet check valve...
- Page 5 During the second cleaning phase (mechanical cleaning with water injection) open valve V2, and inject water from the domestic hot water circuit. For efficient washing, domestic hot water circuit pressure of between 3 and 5 bar must be guaranteed and it is mandatory to install a backflow prevention system to protect the water mains from possible contamination.
-
Page 6: Intended Use
Intended use The device is intended for use exclusively in heating systems containing water or water+glycol solutions up to a concentration of 50%. The device can be used in systems with maximum temperature of the medium of 85°C and maximum pressure of 10 bar. The minimum operating temperature of the medium is 5°C. -
Page 7: Installation
Unpacking instructions First open the cover and then the cardboard side, then remove the pallet with the strainer. Storage Do not overturn or tilt the package. Multiple packages can not be stacked. Do not place any weight on top of the packaging. Handling It is advisable to move the strainer using mechanical devices (lift truck, crane, bridge crane, etc.) of adequate capacity. - Page 8 The device must be installed according to the diagrams given in this manual. The dirt separator must be installed on the return circuit, to intercept any impurities already present in the circuit, particularly when it is first started, before they can reach the boiler. The drain system must be operated in way that it does not prevent normal operation, avoiding counter pressure and must not endanger persons or property.
-
Page 9: Cleaning
Maintenance The strainer is maintenance free. In the case of special problems, contact the Caleffi technical assistance network. The device drains the liquid collected that can be at high temperatures (> 50°C), depending on the characteristics of the system in which it is installed: use appropriate precautions to comply with local regulations in force and concerning the water drain. -
Page 10: Commissioning
Spülventil schließen Open the inlet valve Das Eingangsventil öffnen 5790 series B - Filling with the plant medium B - Befüllen mit System üssigkeit www.caleffi.com Slowly open the inlet valve Das Eingangsventil langsam öffnen 2 Check that the pressure 2 Überprüfen, dass der Druck... -
Page 11: Spare Parts
Spare parts Consult the drawing of the spare parts with the associated table showing the code and description of the individual parts supplied as spares Ref. Description Code Replacement strainers movement handwheel F0000982 Ball valve with built-in check valve 327600 Replacement gate valve F0000984 Replacement vacuum breaker valve d.1/2”... -
Page 12: Maintenance Tasks Table
Maintenance tasks table DATE TASK...
