CAUTION: Make sure that all the connecting pipework is water tight. Caleffi shall not be liable for damages resulting from stress corrosion, misapplication or misuse of its products.
ATTENTION: S’assurer que tous les raccordements sont étanches. Caleffi ne pourra etre tenue responsable des dommages resultant de la corrosion, d’une mauvaise utilisation ou une mauvaise utilisation des produits.
Page 5

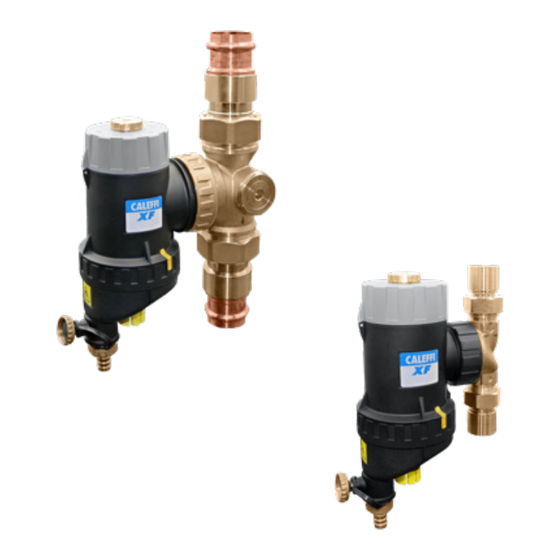

Safety If the 577 XF magnetic filter is not installed, commissioned and maintained properly in accordance with these instructions, it may not operate correctly, and may cause damage to objects and/or people. Make sure all the connections are watertight. Hydraulic characteristics 1-1/4”...
Page 6
Construction: KNOB TO TURN THE CLEANING BRUSHES ROTATING COLLAR INTERNAL CLEANING TEE FITTING BRUSHES MAGNETS DRYWELL WITH MAGNETIC PULL ROD FILTER MESH COLLISION ELEMENT PURGE VALVE Union connections have TEE FITTING - Posi-Stop™ o-ring seal. BYPASS OPEN...
Page 7
Principle of operation: Water treatment in the system takes place in three separate stages: The water enters at the center of the device and comes into contact with the internal element, which consists of a set of concentric mesh surfaces. The microparticles are separated by the joint action of the large chamber and the mesh surfaces.
Page 8
Construction details: Dual filtering effect The Caleffi XF magnetic filter contains two devices that remove impurities. The first is an internal mesh element, composed of a set of concentric surfaces that cause particles up to 5µm to precipitate. The second is an outlet filter with a large surface, which mechanically selects and retains impurities by size (160 µm).
Page 9
Adjustable by-pass: Sizes 1-1/4” and 1-1/2” come with a by-pass to restrict the flow rate passing through the Caleffi XF magnetic filter and thereby increase the Cv value. However, 0% by-pass is recommended during commissioning and for the first few weeks of system operation. Then, during the “constant”...
Installation on horizontal and vertical pipes: The Caleffi XF magnetic filter is adjustable so that it can be installed on both horizontal and vertical pipes. Use the special tightening wrench to screw and unscrew the locking nut.The functional and fluid-dynamic characteristics...
Page 11
Maintenance and dirt discharge: The filter mesh cleaning mechanism with special brushes means that the Caleffi XF magnetic filter does not have to be disassembled for maintenance. It is sufficient to leave the system filling unit in operation. 1. Switch off the circulator and 2.
Page 12
Filter mesh: To clean the Caleffi XF magnetic filter with the circulator stationary, there is no need to disassemble the component because it contains a mechanism with brushes to clean the filter mesh. Caleffi North America, Inc. 3883 West Milwaukee Road...
