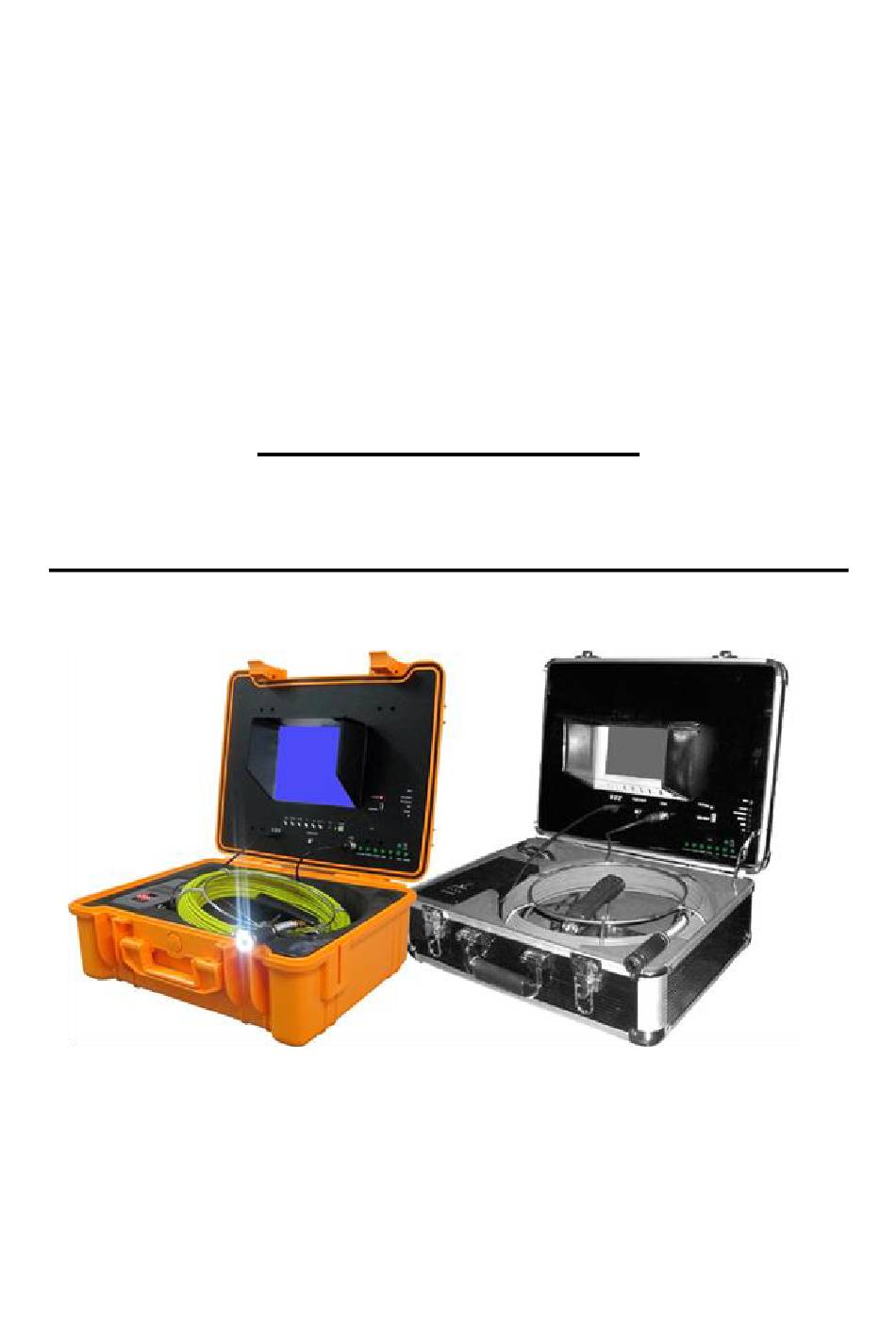

- Page 1 PIPE & WALL VIDEO INSPECTION SYSTEM USER MANUAL 3188D&3188DNSERIES ASSEMBLING AND OPERATING INSTRUCTIONS (3188DN) (3188D) -------------------------------------------------------------------------------- Read this manual carefully before operating this system...
- Page 2 WARNING NEVER USE THIS DEVICE IN AN ENVIRONMENT WITH EXPLOSIVE MATERIALS SUCH AS GAS, OIL, ETC. Avoid using the device in extremely cold, hot or humid environment; otherwise it may damage the device. Do not drop or press hard on the device. Avoid using the parts / components from other manufacturers to this system, which may damage the equipment due to the un-compatibility.
- Page 3 INSTRUCTION I. This pipe inpection system manual can be used for the below models: 1)All 3188 series' models ( 7" with / without DVR / SD card recorder, CCD / CMOS color camera.) 2)Model NO.:3188DT (10” pipe inspection system with DVR/SD card recorder and camera head with 512hz built-in transmitter,yellow case) II.
-
Page 4: Table Of Contents
CONTENTS Assembly Drawing and Parts List…………...........1 Specifications....................2 User Manual.....................3 Application.......................3 Know your Device…………................4 Camera Head....................5 Cable Reel......................5 Remote Control (For Operating DVR only)...........5 System Set-Up....................6 System Menu Setting................7 Recording Operation.................7 LED Indicators....................9 Recording Time Limit..................9 Schedule Recording..................9 Recording via USB Stick/ Micro SD Card………........10 Video Recording Format................10 Voice Recording ...................10 Video Playing....................10... -
Page 5: Assembly Drawing And Parts List
Assembly Drawing and Parts List Part No. Description □23MM CCD camera □23MM CMOS camera □23MM CMOS Camera with built-in 512hz transmitter □12MM Cmos camera *Above cameras may come with plastic or stainless steel housing Disc Remote control Eva ball protection 1.5m Video soft cable (short) Fuse bag □20m(65FT)□30m(100FT) -
Page 6: Specifications
Specifications ITEM DESCRIPTION Power adapter 110VAC~240VAC 13.5VDC1700mA Battery Case LI-ION battery □ □ Length of Cable 20m(65FT) 30m(100FT) □ 40m(130FT) Camera Light Source □ 8pcs □ 12pcs built-in white LED Camera Angle-of-View 90°or 120° (horizontal), 90°or 120° (vertical) Camera Depth-of-View 400 mm (approximate) Camera Image Color, 0.3Mega pixel... -
Page 7: User Manual
User Manual Application WATER SUPPLY SYSTEM WASTE WATER SYSTEM ELECTRICAL AIR CONDITIONER CABLE DUCTING DUCTED VACCUM SYSTEMS PLUMBING BUILDINGS WARNING: NEVER USE THIS DEVICE IN AN ENVIRONMENT WITH EXPLOSIVE MATERIALS SUCH AS GAS, OIL, ETC. -
Page 8: Know Your Device
Know Your Device 7”LCD 10”LCD RECORDING WITH DVR VIA USB PORT: (New versions equipped with items from 17 to 25.) VIDEO SELECTOR BUTTON 13. POWER & CHARGE BUTTON MENU 14. CHARGE PORT DOWN SELECTOR 15. DC 12V OUTPUT CORD UP SELECTOR 16. -
Page 9: Camera Head
Camera Head 1. 12 WHITE LEDS ( 8 for old versions) 2. LENS 3. SPRING 4. GOLD PINS 5. Built-in Transmitter: 512HZ ( for 3188DT or upgraded camera head for 3188 series) Cable Reel 1. MALE PLUG (To monitor) 2. HANDLE 3. -
Page 10: System Set-Up
System Set-Up IMPORTANT: When you connect the Camera to the Monitor, the power must be off otherwise both units may be damaged. Screw the Camera to the Reel Cable (See Figure1- A) and connect the Reel to the Monitor (See Figure 1-B). Put the Fuse into the jack located at the side of the Battery Box. -
Page 11: System Menu Setting
System Menu Setting Clock setting: set date and time Time Format Select: 24Hour - 12Hour Year Set year Month Set month Set day Hour Set hour Minute Set minutes Second Set seconds Language Setting Select: English - Chinese System: showing software version, product version, free space and used space (when USB/micro SD is connected) Record setup: Storage device selection---USB stick or micro SD Play mode: No circle, one circle, list circle... - Page 12 Remark: When you plug in the USB stick/micro SD card before starting the device, maybe the device can’t find the USB stick/micro SD card. In this case, please remove them and try again. Press remote control button 3 to start the recording and the RECORDING LED light is on.
-
Page 13: Led Indicators
LED indicators 1） REM : Remote receiving window 2） Power: It indicates that the system is on 3） Recording: It will blink during recording 4） USB/Micro SD: It indicates that USB/micro SD device is connected 5） Error: It indicates that the system or USB/micro SD device has error 6）... -
Page 14: Recording Via Usb Stick/ Micro Sd Card
Recording via USB Stick/ Micro SD Card The unit can be used to record video and voice via USB stick / micro SD Card .The recorded video will be stored in the USB stick / micro SD card and can be played back on the screen. VIDEO Recording format The default video recording resolution is 640*480. -
Page 15: Compatible Video Format
Compatible video format: Divx3.11/Divx4/Divx5/MPEG1/MPEG2/MPEG4 (MPEG4 video file format: .avi, .m4v, .MPG, MPEG, .VOB) Note: The video player of the device may not support some downloaded videos. Video Player Software Installation Generally, the recorded videos can be played on the computer purchased after the year 2006. -
Page 18: Locating The Camera Head With Built-In Transmitter
Locating the Camera Head with Built-in Transmitter The camera head of Model# 3188DT which has a 512HZ built in sonde transmitter can be located by a 512HZ locator / receiver. The locatable distance is about 15 FT in nonmetallic pipelines and 10FT IN CAST IRON PIPELINES. -
Page 19: Trouble Shooting
Battery specifications: TOTAL POWER LI-ION BATTERY 12VDC MAX.≦ 40Wh CHARGER 13.5V 1700mA CHARGE TIME 6 HOURS ≥200 MINUTES WORKING TIME PROTECTIVE VOLTAGE 8.1V THE VOLTAGE BEFOR DISCHARGING 12.6V LOAD CURRENT 1100mA(INPUT 12.2V HOUR) TROUBLE SHOOTING Trouble Reason / Solution 1. Change the fuse 2.
