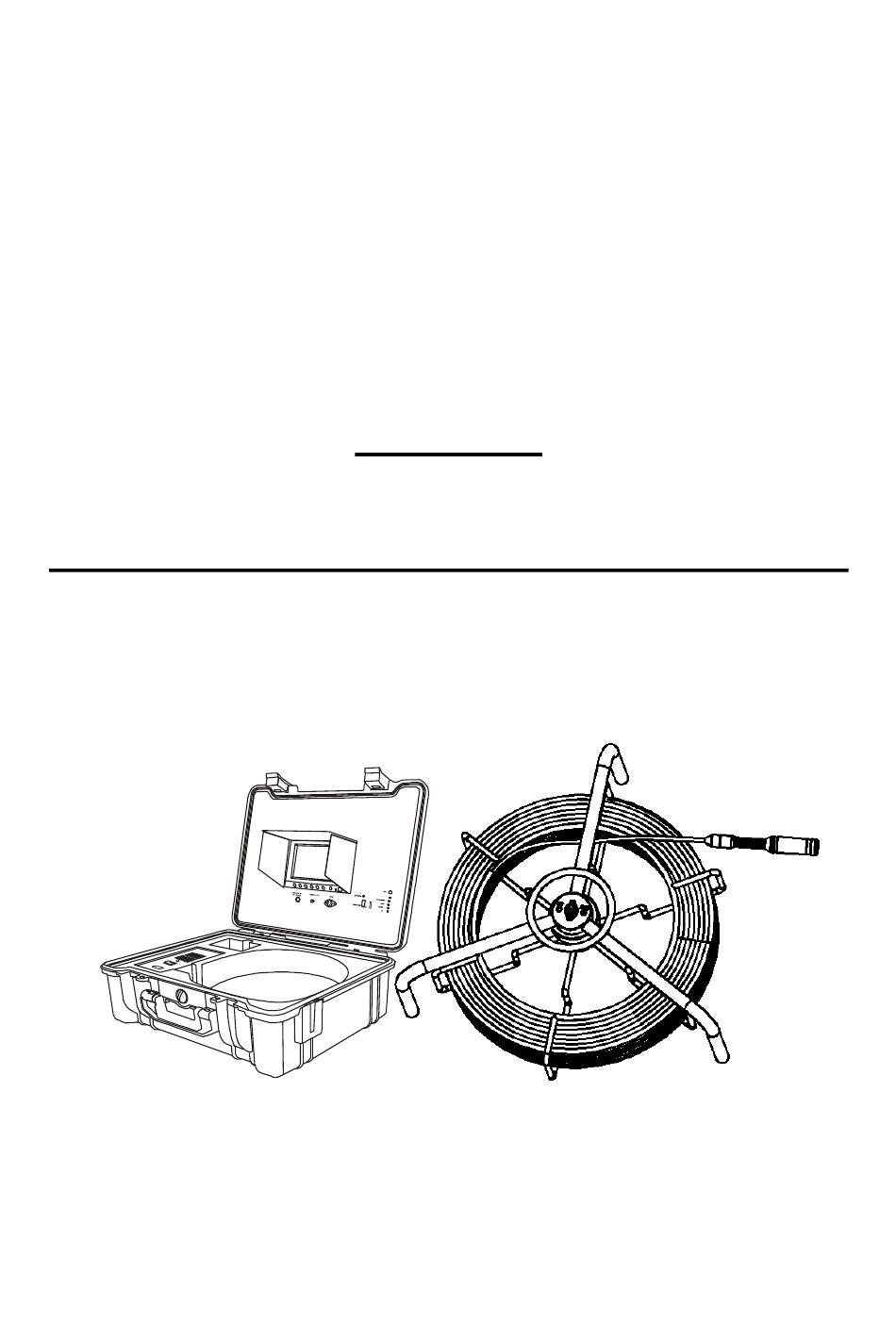

- Page 1 PIPE & WALL VIDEO INSPECTION SYSTEM USER MANUAL 3588 series ASSEMBLING AND OPERATING INSTRUCTIONS -------------------------------------------------------------------------------- Read this manual carefully before operating this system...
- Page 2 10. We reserve the right to make any change about our products without any notice in advance. DISCLAIMER OF LIABILITY Forbest Products Co. SHALL NOT BE LIABLE TO DISTRIBUTOR, RESELLER, OR ANY OTHER PERSON FOR ANY INCIDENTAL, INDIRECT, SPECIAL, EXEMPLARY OR CONSEQUENTIAL DAMAGES, OR INJURY OF ANY TYPE WHATSOEVER, AND CAUSED DIRECTLY OR INDIRECTLY BY PRODUCTS SOLD OR SUPPLIED BY Forbest Products Co..
-
Page 3: Table Of Contents
CONTENTS Assembly Drawing and Parts List…………...........1 Specifications....................2 User Manual.....................3 Application.......................3 Know your Device…………................4 Camera Head....................5 Cable Reel......................5 Remote Control (For Operating DVR only)............5 System Set-Up....................6 System Menu Setting................7 Recording Operation.................7 LED Indicators....................9 Recording Time Limit..................9 Schedule Recording..................9 Recording via USB Stick/ Micro SD Card………........10 Video Recording Format................10 Voice Recording ...................10 Video Playing....................10... -
Page 4: Assembly Drawing And Parts List
Assembly Drawing and Parts List Part No. Description □23MM CCD camera □23MM CMOS camera □23MM CMOS Camera with built-in 512hz transmitter □40MM CCD camera self leveling image with built-in 512HZ transmitter Above cameras may come with plastic or stainless steel housing □7”... -
Page 5: Specifications
Specifications ITEM DESCRIPTION Power adapter 110VAC~240VAC 12VDC1200mA Battery Case LI-ION battery □ □ Length of Cable Diameter 8mm Camera Light Source □ 12pcs □ 18pcs built-in white LED Camera Angle-of-View 60°or 90° (horizontal), 60°or 90° (vertical) Camera Depth-of-View 200mm-400 mm (approximate) Camera Image Color, 0.3Mega pixel 7”/ 10”... -
Page 6: User Manual
User Manual Application WATER SUPPLY SYSTEM WASTE WATER SYSTEM ELECTRICAL AIR CONDITIONER CABLE DUCTING DUCTED VACCUM SYSTEMS PLUMBING BUILDINGS WARNING: NEVER USE THIS DEVICE IN AN ENVIRONMENT WITH EXPLOSIVE MATERIALS SUCH AS GAS, OIL, ETC. -
Page 7: Know Your Device
Know Your Device 7”LCD 10”LCD RECORDING WITH DVR VIA USB PORT: VIDEO SELECTOR BUTTON 13. POWER & CHARGE BUTTON MENU 14. CHARGE PORT DOWN (UP OR DOWN MIRROR IMAGE) 15. DC 12V OUTPUT CORD UP (LEFT OR RIGHT MIRROR IMAGE) 16. -
Page 8: Camera Head
Camera Head 1. 12 WHITE LEDS ( 18 for big camera) 2. LENS 3. SPRING 4. GOLD PINS Built-in Transmitter: 512HZ Cable Reel Cable with optoelectronic meter counter 1. MALE PLUG (To monitor) 2. BODY FRAME 3. CABLE REEL 4. M/FT 5. -
Page 9: System Set-Up
System Set-Up IMPORTANT: When you connect the Camera to the Monitor, the power must be off otherwise both units may be damaged. Screw the Camera to the Reel Cable (See Figure1- A) and connect the Reel with the Monitor (See Figure 1-B). Put the Fuse into the jack located at the side of the Battery Box. -
Page 10: System Menu Setting
System Menu Setting Clock setting: set date and time Time Format Select: 24Hour - 12Hour Year Set year Month Set month Set day Hour Set hour Minute Set minutes Second Set seconds Language Setting Select: English - Chinese System: showing software version, product version, free space and used space (when USB/micro SD is connected) Record setup: Storage device selection---USB stick or micro SD Play mode: No circle, one circle, list circle... - Page 11 Remark: When you plug in the USB stick/micro SD card before starting the device, maybe the device can’t find the USB stick/micro SD card. In this case, please remove them and try again. Press remote control button 3 to start the recording and the RECORDING LED light is on.
-
Page 12: Led Indicators
LED indicators 1） REM : Remote receiving window 2） Power: It indicates that the system is on 3） Recording: It will blink during recording 4） USB/Micro SD: It indicates that USB/micro SD device is connected 5） Error: It indicates that the system or USB/micro SD device has error 6）... -
Page 13: Recording Via Usb Stick/ Micro Sd Card
Recording via USB Stick/ Micro SD Card The unit can be used to record video and voice via USB stick / micro SD Card .The recorded video will be stored in the USB stick / micro SD card and can be played back on the screen or computer. VIDEO Recording format The default video recording resolution is 640*480. -
Page 14: Compatible Video Format
Compatible video format: Divx3.11/Divx4/Divx5/MPEG1/MPEG2/MPEG4 (MPEG4 video file format: .avi, .m4v, .MPG, MPEG, .VOB) Note: The video player of the device may not support some downloaded videos. Video Player Software Installation Generally, the recorded videos can be played on the computer purchased after the year 2006. -
Page 17: Locating The Camera Head With Built-In Transmitter
Locating the Camera Head with Built-in Transmitter The camera head with a 512HZ built in sonde transmitter can be located by a 512HZ locator / receiver. The locatable distance is about 15 FT in nonmetallic pipelines and 10FT IN CAST IRON PIPELINES. Recharging the Battery 1) Plug the charger into the AC socket on the wall and insert the other end into the DC Jack on the battery box (See Figure2- A) -
Page 18: Trouble Shooting
Battery specifications: TOTAL POWER LI-ION BATTERY 12VDC MAX.≦ 40Wh CHARGER 13.5V 800mA CHARGE TIME HOURS ≥200 WORKING TIME MINUTES PROTECTIVE VOLTAGE THE VOLTAGE BEFOR DISCHARGING 12.6V LOAD CURRENT 1100mA(INPUT 12.2V HOUR) TROUBLE SHOOTING Trouble Reason / Solution 1. Change the fuse 2.
