Chi Lok Bo Toys Jeep Gladiator Rubicon Manual

Jeep Gladiator Rubicon
Battery Operated Ride On
Read Operation
Instructions Care-
fully Before Use
Jeep, the Jeep grille and related logos, vehicle model names and trade dress are trade-
marks of FCA US LLC and used under license by Dongguan Chi Lok Bo Toys Company
Limited. ©2020 FCA US LLC.
Contents
1. Product Specifications and Parameters
2. Components List
3. Assembly Diagram
4. Installation and replacement of remote control batteries
5. Function and Operation
6. Battery and Charger Operating Guide
7. Simple Fault Removal Guidance
8. Warning
1. Product Specifications and Parameters
• This product is suitable for children aged 3-6, and shall be used
under adult supervision!
• Product dimensions: 148.3×80.4×67.6 cm
• Product maximum load weight: 50 kg
• Product charger: Input AC 100-240 V (50/60 Hz), Output (see
charger parameters of the product)
• Charging battery: (see the optional parameters)
• Remote control and foot switch: 2.4 GHz one-to-one remote
control
• DC power supply of the remote controller: (see the optional
parameters) (the battery of this product is not included)
• Product operating ambient temperature: 0-40 °C
Model:
Battery specifications:
Product charger:
Product drive motor:
Pedal speed:
Overcurrent protection:
Remote control:
DC power supply of the
remote controller:
Basic frequency:
Transmission power:
Option B
DC 12V / 8 AH
DC 15V / 800 mA
DC 6V (550 dual drive)
3.1 / 4.1 / 5.1 km/h
7A
Yes
2 x 1.5V AAA
2.4-2.4835 GHz
Less than 10 dBm

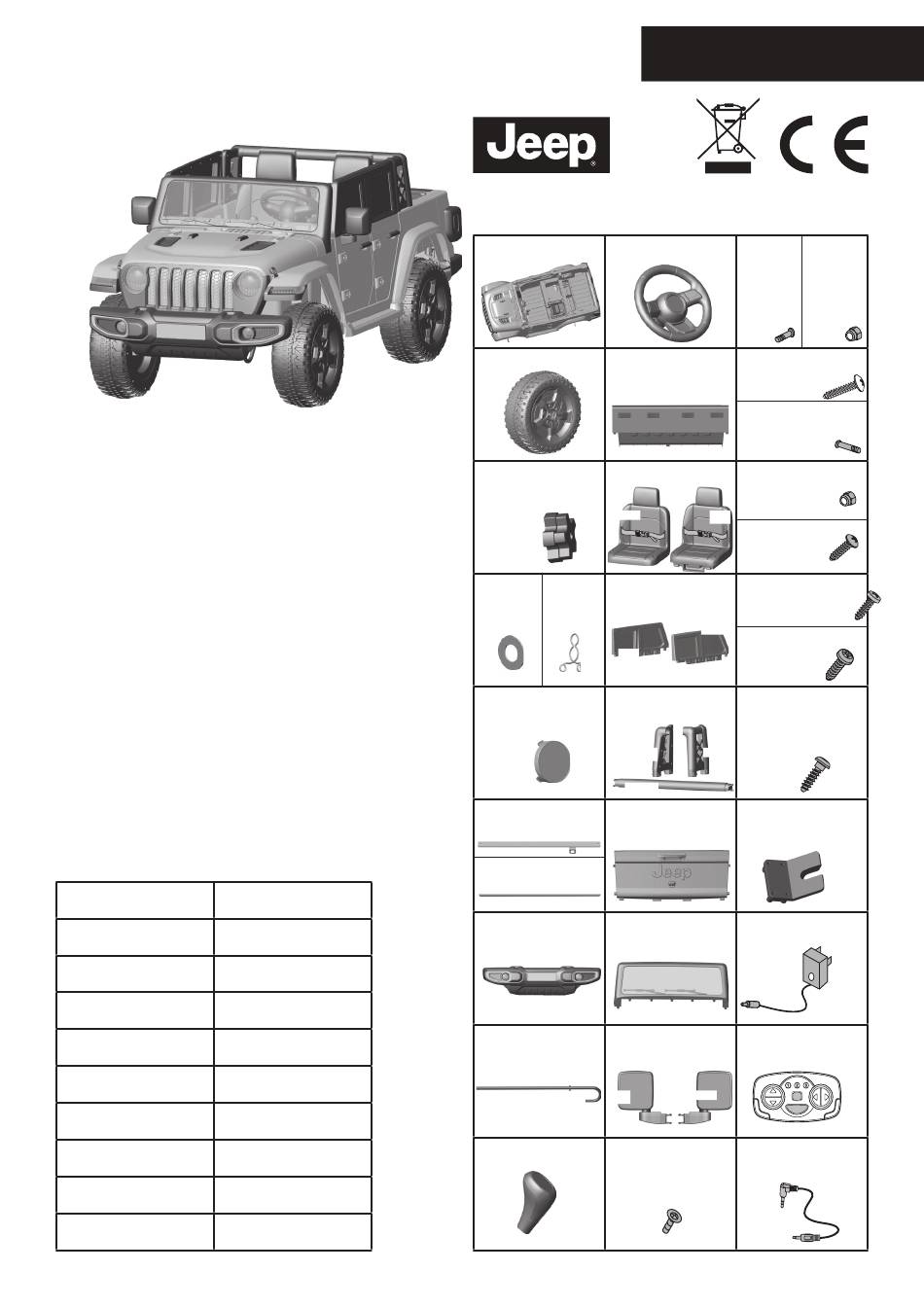

2. Components List
12. Steering wheel
1. Car Body
2. Wheel 4 PCS
13. Front board of the
car body
3. Gear sleeve in the 14. Seat
rear- wheel gear-
box 2 PCS
Right
4. Plastic 5. Latch 15. Window
washer spring
4 PCS 4 PCS
Left
6. Housing of wheel
16. Guard bar
core 4 PCS
Left
Middle
7. Front axle frame
17. Rear door
connecting rod
8. Rear wheel axle
18. Windshield
9. Front baffle
10. J-shaped stick 19. Rear-view mirror
Left
11. Hand shank 20. Steering gearbox
screw (3×10 PWAB)
(D=10) 2 PCS
615576 EN
ko1221
21. Front axle 22. Front axle
frame frame
connect- connect-
ing- rod ing- rod
screw locknut
(5×13 PM) (5 MM)
2 PCS 2 PCS
23. Screws for front
baffle 3.5×18 TAB
(D=8) 3 PCS
24. Steering wheel
screw (5×33 PM)
25. Steering wheel
locknut (5 MM)
Left
26. Seat screw
(4×15 TAB)
(D=7.5) 4 PCS
27. Screws for the front
board of the car body
(3.5×12 BAB) 2 PCS
Right
28. Screws for car
windows
(3×12 PAB)
6 PCS
29. Swing lever of
steering wheel
Fixing block screws
(3.5×12 PAB) 4 PCS
Right
30. Steering wheel
swing lever
fixing block
31. Charger
32. Remote control
Right
33. MP3 connecting
wire
