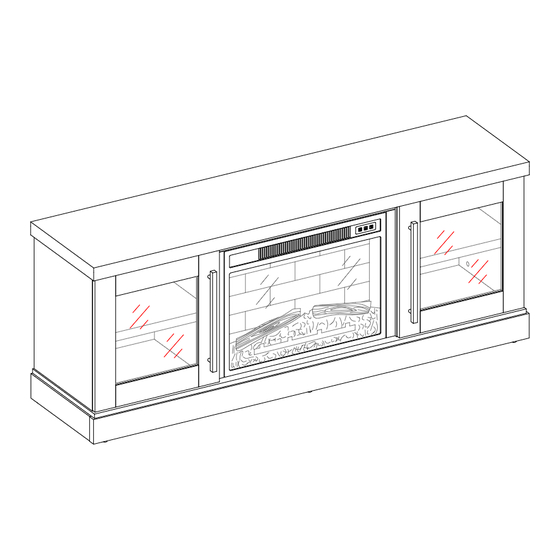

Ruso 62" Fireplace Console
If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the
store where it was purchased. Please call our toll-free customer service number and have your
instructions and parts list ready to provide the model name, part name or factory number:
Pacific Standard Time: 8:30 a.m. - 4:30 p.m., Monday - Friday
Or visit our web site 24 hours a day, 7 days a week for product assistance at
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION.
Model # MNFP62BF23-6
ADULT ASSEMBLY REQUIRED
1-866-942-5362
www.whalenfurniture.com
Or e-mail your request to parts@whalenfurniture.com
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Date: 2023-05-25
LOT NUMBER:
DATE PURCHASED: /
Rev. 0001-A
/
Advertisement
Related Manuals for Whalen Ruso MNFP62BF23-6
Summary of Contents for Whalen Ruso MNFP62BF23-6
- Page 1 LOT NUMBER: DATE PURCHASED: / Ruso 62” Fireplace Console Model # MNFP62BF23-6 ADULT ASSEMBLY REQUIRED If you have any questions regarding assembly or if parts are missing, DO NOT return this item to the store where it was purchased. Please call our toll-free customer service number and have your instructions and parts list ready to provide the model name, part name or factory number: 1-866-942-5362 Pacific Standard Time: 8:30 a.m.
- Page 2 IMPORTANT Before you begin: Open, identify and count all parts prior to assembly. Lay out parts on a flat and non-abrasive surface. You will need the parts identified on page 3 and 4 of this instruction manuals. NOTE: IT IS VERY IMPORTANT TO USE GLUE WITH THE DOWELS. EXCESS GLUE CAN BE WIPED OFF WITH A DAMP CLOTH.
- Page 3 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. A- Top Panel (Qty. 1) B- Bottom Panel (Qty. 1) C-Side Panel (Qty. 2) D- Left Partition Panel (Qty. 1) E- Right Partition Panel (Qty.
- Page 4 Parts and Hardware List Please read completely through the instructions and verify that all listed parts and hardware are present before beginning assembly. Fireplace Insert (Qty. 1) Remote Control with Battery (Qty. 1) (1) Cam Lock (2) Cam Bolt (3) M8 x 30 mm Wood Dowel (Qty.
- Page 5 Assembly Instructions 1. Unpack the unit and confirm that you have all the hardware and required parts. Assemble the unit on a carpeted floor or the empty carton to avoid any scratch. 2. Securely screw the Cam Bolts (2) into the designated small holes on the Bottom Panel (B) and Skirting Boards (K, M and N) with a Phillips screwdriver.
- Page 6 Assembly Instructions The cam locks face inward. 4. Align and attach the Rear Skirting (L) between the Side Skirtings (M and N) by engaging 2 Cam Locks (1). (Refer to page 2 on Cam Lock system operation supplement). 5. Attach the Bottom Middle Stretcher (O) to the Front Skirting (K) by engaging one Cam Lock (1).
- Page 7 Assembly Instructions 6. Attach the assembled Front Skirting (K) to both Side Skirtings (M and N) with 2 Cam Locks (1). 7. Insert two 50 mm Screws (5) through the Rear Skirting (L) and securely screw into the Bottom Middle Stretcher (O).
- Page 8 Assembly Instructions 9. Securely screw the Cam Bolts (2) into the designated small holes on the Top Panel (A) and Bottom Panel (B) using a Phillips screwdriver. 10. Glue the Wood Dowels (3) into the inner holes on the Side Panels (C) and Partition Panels (D and E) as shown.
- Page 9 Assembly Instructions 11. Glue the Wood Dowels (3) into the inner holes on the Middle Crossbar (I) and Middle Trims (J). 12. Using the wood dowels as a guide, fasten the Middle Crossbar (I) to the Top Panel (A) with three 32 mm Screws (4).
- Page 10 Assembly Instructions 13. Attach the Middle Trims (J) to the Partition Panels (D and E) respectively with eight 32 mm Screws (4). The trims face inward and are located at front side. Floor leveler 14. Orient and attach both Partition Panels (D and E) to the Bottom Panel (B) by inserting four 50 mm Screws (5) through the mounting holes on the Bottom Panel (B) and securely screw into place.
- Page 11 Assembly Instructions The hinge bases face inward and are located at front side. 15. Orient and attach the Side Panels (C) to the Bottom Panel (B) by engaging 4 Cam Locks (1). 16. Ask for assistance to position the Top Panel (A) onto the inserted wood dowels on the vertical panels properly and fasten them into place with 8 Cam Locks (1).
- Page 12 Assembly Instructions The adhesive tapes face outward. 18. Ask for assistance to turn the assembled unit at its front edges. 19. Unfold the Back Panels (H) and align the pre-drilled holes against the edge with pilot holes on the back edge of Top Panel (A).
- Page 13 Assembly Instructions Vertical Adjustment Depth Adjustment Horizontal Adjustment 21. Lift the assembled unit upright and pick up the Doors (G) and attach the extended hinge arms to the hinge bases installed on the Side Panels (C). Loosen the bolt on the back of hinge base for an easy fit. 22.
- Page 14 Assembly Instructions 26. Plug Cam Lock Covers (8) onto the visible Cams Locks to conceal the cams. 27. Stick the Rubber Bumpers (9) on the Partition Panels (D and E) where the Doors (G) are in contact with. Top trim Side trim 28.
- Page 15 Assembly Instructions Wooden stud Wall Short screw Wall Metal bracket Long screw Nylon strap Floor leveler Tools required (not provided): Phillips screwdriver, stud finder, tape measure, pencil, power drill and 1/8” drill bit. 31. Ask for assistance to position the assemble fireplace at the desired location against a wall. If necessary, adjust the pre-attached floor levelers at the bottom of Front Skirting (K) to correct the tilting and level the doors.
-
Page 16: Care And Maintenance
Care and Maintenance Use a soft, clean cloth that will not scratch the surface when dusting. Use of furniture polishes is not necessary. Should you choose to use polishes, test first in an inconspicuous area. Using solvents of any kind on your furniture may damage the finish. ... -
Page 17: Quality Guarantee
Should this product be defective in workmanship or materials or fail under normal use, we will repair or replace it for up to one (1) year from date of purchase. Every Whalen Furniture product is designed to meet your highest expectations. We guarantee that you will immediately see the value of our fine furniture.
