Summary of Contents for Epson TM-U330B

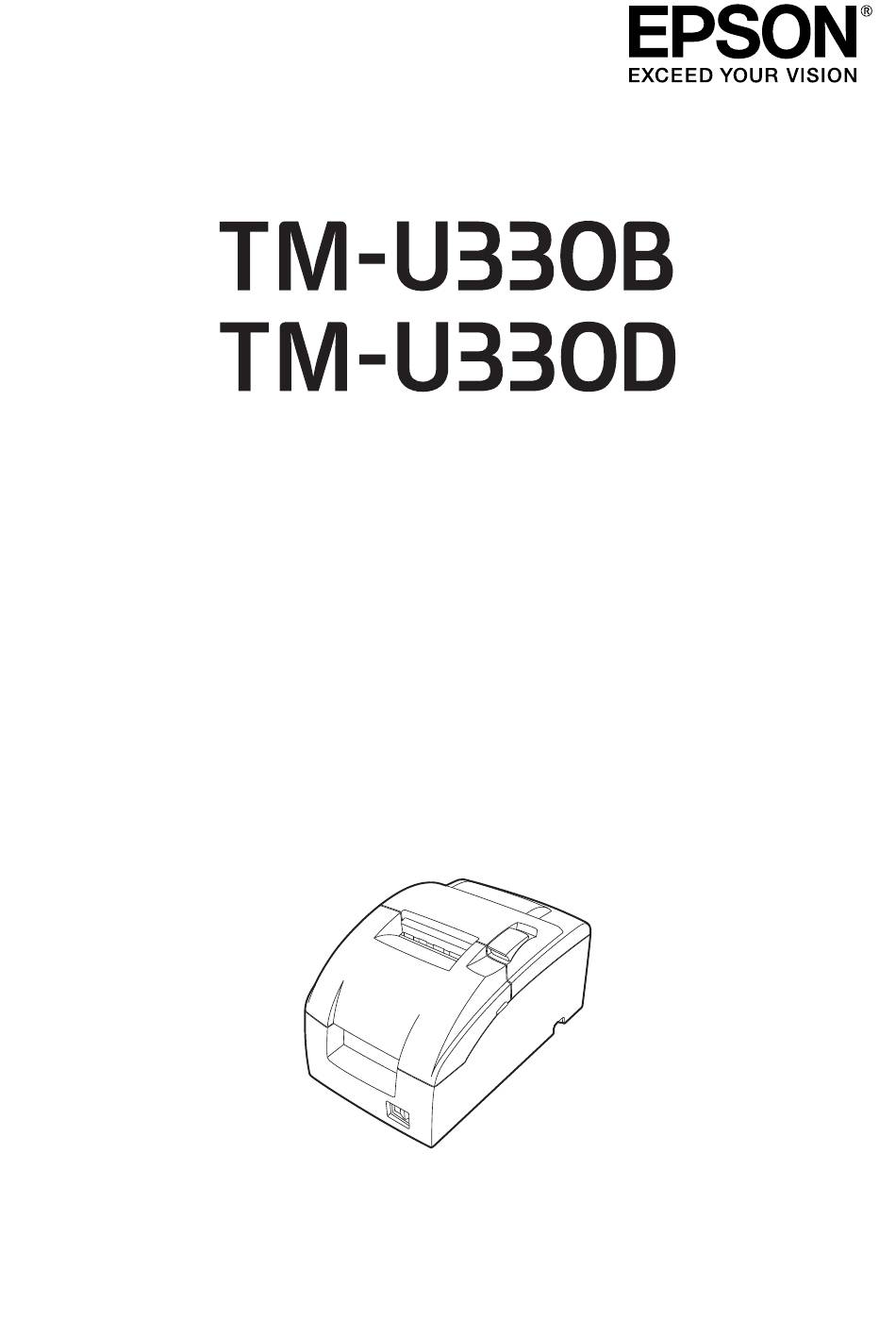

  • Page 1 User’s Manual...
  • Page 2 Neither is any liability assumed for damages resulting from the use of the information contained herein. Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson Corporation’s operating and...

  • Page 3: Important Safety Information

    Never disassemble or modify this product. Tampering with this product may result in injury or fire. ❏ Be sure to use the specified power source (Epson PS-180 (Model: M159B/M159D) or Epson AC adapter,C1 (Model: M235B)). Connection to an improper power source may cause fire.

  • Page 4: Notes On Usage

    ❏ When using the printer, be sure that the printer is installed horizontally. Caution Labels The caution labels on the product indicate the following precautions. CAUTION: The print head and the motor can be very hot during printing and immediately after printing. Touching it may cause burns. 4 TM-U330B/TM-U330D User’s Manual...

  • Page 5: Restriction Of Use

    The latest versions of drivers, utilities, and manuals can be downloaded from oneof the following URLs. For customers in North America, go to the following web site: http://www.epson.com/support/ For customers in other countries, go to the following web site: https://download.epson-biz.com/?service=pos TM-U330B/TM-U330D User’s Manual 5...

  • Page 6: Printer Parts

    Troubleshooting section.) PAPER OUT LED Lights when roll paper is out or nearly out. FEED button Feeds the roll paper. Note: Paper cannot be fed by using this button when a paper out is detected. 6 TM-U330B/TM-U330D User’s Manual...

  • Page 7: Power Switch Cover

    WARNING: If an accident occurs when the power switch cover is attached, immediately unplug the power supply cable to avoid fire. TM-U330B/TM-U330D User’s Manual 7...

  • Page 8: Connecting The Cables

    For the shape of each connector, see the illustration below.(Mounted interfaces vary by the printer model.) IEEE1284 RS-232 DC24V 10BASE-T/ (Drawer kick 100BASE-TX connector) 3. Connect the interface cable to the computer. 4. Insert the power cord plug into a socket. 8 TM-U330B/TM-U330D User’s Manual...

  • Page 9: Inserting The Ribbon Cassette

    2. Turn the knob 2 or 3 times in the direction of the arrow. CAUTION: Use the Epson ERC-45 ribbon cassette for your printer. Never turn the ribbon cassette’s feed knob in the opposite direction of the arrow marked on the cassette; otherwise the ribbon cassette may be damaged.
  • Page 10 CAUTION: Be careful not to touch the print head with your fingers when turning the ribbon cassette knob because the print head is hot and you might be burned. 5. Close the ribbon cassette cover. 10 TM-U330B/TM-U330D User’s Manual...
  • Page 11 ❏ Be sure not to touch the manual cutter. Otherwise your fingers might be injured. 1. Using scissors, cut the leading edge of the roll paper. ✄ 2. Turn on the printer. 3. Open the roll paper cover. TM-U330B/TM-U330D User’s Manual 11...
  • Page 12 4. Insert the roll paper. Note the direction the paper comes off the roll. Note: When using 2-ply roll paper, be sure that the top and bottom sheets are aligned at the paper exit. 5. Close the roll paper cover. 12 TM-U330B/TM-U330D User’s Manual...

  • Page 13: Troubleshooting

    ❏ A paper jam has occurred. To remove the jammed paper, see the instructions below. ❏ TM-U330B: The autocutter blade is not in the normal position and the autocutter is locked up. If it is a simple lock-up, the error is corrected automatically.
  • Page 14 TM-U330B:The autocutter is locked up 1. Open the roll paper cover. 2. Use a ballpoint pen or tweezers to turn the knob of the autocutter in the direction indicated by the arrow until you see a round shaft in the hole.
  • Page 15 Storage 10~90%, must be no condensation, without paper and ribbon cassette Overall dimensions (mm) TM-U330B/TM-U330D: 160 × 248 × 138.5 (W × D × H) Mass (approx.) TM-U330B: 2.8 kg {6.17 Ib} TM-U330D: 2.6 kg {5.73 Ib} lps: lines per second *1: Dedicated AC adapter (Epson PS-180 (Model:M159B)) *2: Based on Epson operating conditions.
  • Page 16 Printed in China...
