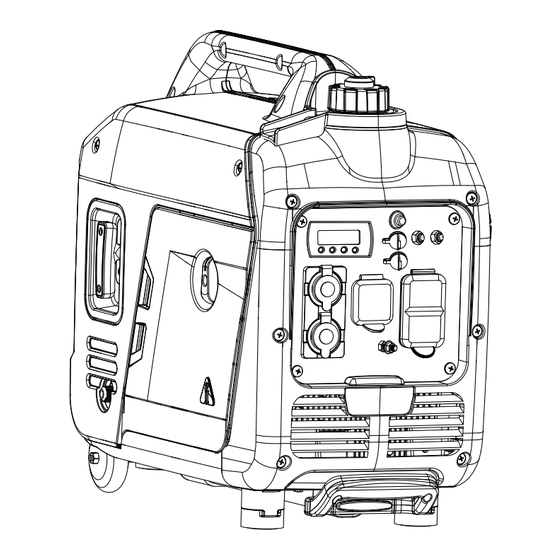

- Page 1 PORTABLE GENERATOR Owner’s Manual GXS2300iD DO NOT RETURN TO STORE! CALL US FIRST 855-888-3598 FOR SUPPORT Model# 802002 REV00 Model: Serial: Date Purchased: SAVE THIS MANUAL FOR FUTURE REFERENCE P/N: 32082-00000-00...
-
Page 2: Table Of Contents
Table of Contents Introduction..........1 Stopping the Engine......22 Low Oil Shutdown........22 Safety............1 Do Not Overload Generator....22 General Safety Precautions....2 Changing Fuels........23 Unpacking the Generator.......8 Parallel Operation.........24 Parts Included........8 Maintenance And Storage....26 Controls and Features......9 Maintenance Schedule......26 Control Panel Features......11 Engine Maintenance......26 Specifications........12 Engine Oil Level Check......26 CO WATCH-GUARD......13... -
Page 3: Introduction
Service at 855-888-3598, or which are known to the State of California to cause www.a-ipower.com for starting, operating and cancer and birth defects orother reproductive harm. servicing procedures. The owner is responsible for To minimize exposure, avoid breathing exhaust, and proper maintenance and safe use of the unit. -
Page 4: General Safety Precautions
Asphyxiation Electric Shock Fire Hazard Hazard Hazard Hot Surface. Explosion Moving Parts Do Not Touch the Surface. Hazard Hazard Burn Hazard Operator’s Manual Kickback GENERAL SAFETY PRECAUTIONS • Operate this product ONLY outside far away from windows, doors and vents to reduce the risk of Using a generator indoors CAN KILL YOU IN MINUTES. - Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • ONLY use outside and downwind, far away from windows, doors and vents. • Direct exhaust away from occupied spaces. INCORRECT USAGE Do not operate in any of the following locations: •...
- Page 6 Propane/LPG (Liquid Petroleum Gas) WARNING • Propane/LPG is highly flammable and explosive. Starter cord kickback (rapid retraction) • LPG is heavier than air and can settle in low places will pull hand and arm toward engine while dissipating. faster than you can let go which could •...
- Page 7 • Store Fuel in a container approved for gasoline. DANGER • Store any containers containing gasoline or propane/LPG outdoor in a well-ventilated area, away from any combustibles or source of ignition. DANGER Gasoline, gasoline vapor and propane/LPG are highly flammable and explosive. Generator voltage could cause electrical Never use a gasoline container, gasoline tank, shock or burn will result in death or...
- Page 8 WARNING WARNING Starter and other rotating parts could entangle hands, hair, clothing, or accessories. Keep away from rotating parts, failure to do so could result in Exhaust heat/gases could ignite combustibles, death or serious injury. structures or damage fuel tank causing a fire, •...
- Page 9 • Shut off generator if: -Electrical output is lost. -Equipment sparks, smokes, or emits flames. -Unit vibrates excessively. WARNING Medical and Life Support Uses. • In case of emergency, call 911 immediately. • NEVER use this product to power life support devices or life support appliances.
-
Page 10: Unpacking The Generator
UNPACKING THE GENERATOR • Open carton completly. Remove and verify carton content prior to assembly. Your generator ships with following items. • Call our customer service at 855-888-3598 with the unit model and serial number for any missing item. • Record model, serial number, and date of purchase on front cover of this munual for your own record. -
Page 11: Controls And Features
CONTROLS AND FEATURES 1 - Recoil Starter 8 - Maintenance Cover 2 - Fuel Cap Vent Lever 9 - Starting Dial Switch 3 - Fuel Cap 10 - Telescopic Handle 4 - Control Panel 11 - Support Leg 5 - Spark Plug Maintenance Cover 12- Wheel 6 - Carrying Handle 13 - Muffler/Spark Arrestor... - Page 12 CONTROL PANEL FEATURES 1. LED DATA CENTER: See LED DATA CENTER 6. 120V AC, 20A Duplex, Single Phase, 60 Hz Outlets section. (NEMA 5-20R): Each outlet is capable of carrying a maximum of 20 Amp on. 2. CO (Carbon Monoxide) WATCH-GUARD Indicator Light (Red for Shut off and Yellow for Service): The 7.
-
Page 13: Control Panel Features
CONTROL PANEL FEATURES LED Data Center 1. LED Multi-Meter: Displays voltage,power,fuel level, 4. Overload Reset Button with Indicator Light: The frequency, and running time. indicator light is green when the inverter is running under rated load. The indicator light will turn to 2. -
Page 14: Specifications
SPECIFICATIONS GXS2300iD Model Number 802002 2300W-GAS / 2000W-Propane/LPG Starting Watts Running Watts 1800W-GAS / 1600W-Propane/LPG Rated AC Voltage 120V Rated DC Voltage 5V/12V Rated Frequency 60HZ Phase Single Grounding System (AC) Neutral Floating Engine Type Single Cylinder, 4-Stroke OHV Air Cooled... -
Page 15: Co Watch-Guard
CO WATCH-GUARD Carbon Monoxide (CO) Detection and Auto Shutoff System Your Generator is equipped with Carbon Monoxide (CO) WATCH-GUARD detect system for your protection and safety. This detecting and shutoff system monitors for the accumulation of poisonous CO gas around the generator produced by engine exhaust when the generator is running. - Page 16 The generator is shutoff automatically and the yellow light will blink for at least five minutes after shutoff. Call A-iPower Customer Service 855-888-3598 for repair. Do not use the generator until the sensor is working properly. The CO WATCH-GUARD must only be serviced by qualified technician to restore it to original settings.
-
Page 17: Add Engine Oil
Add Engine Oil NOTICE We recommend using SAE 10W-30 APISJ oil for We consider the first 5 hours of run time to be the best performance. Other high-quality detergent oils break-in period for the unit. During the break in (APISJ or higher) are acceptable. Do not use special period stay at or below 50% of the running watt additives. -
Page 18: Add Fuel: Propane/Lpg
• It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. -
Page 19: Fuel Sense
• When exchanging propane/ LPG cylinders, be sure the cylinder valve is of the same type. • Always keep the propane/LPG cylinder in an upright position. • Propane/LPG will burn skin if it comes in contact with it. Keep Propane/LPG away from skin at all times. -
Page 20: Operation At High Altitude
3.5% for every 1000 feet (305 m) of elevation above sea level. High altitude may cause hard starting, increased fuel consumption and spark plug fouling. To operate at high altitudes A-iPower can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support. -
Page 21: Operation
OPERATION Surge suppressors come in single- or multi-outlet Generator Location styles. They’re designed to protect against virtually WARNING all short-duration voltage fluctuations. Make sure you review each warning in order to Before Starting the Generator prevent fire hazard. • Make certain the generator is on a flat, level surface and well-ventilated location. -
Page 22: Starting The Engine (Generator)
6. Turn the starting dial switch to the RUN 2. Add gasoline to the fuel tank. position. Select the Fuel Source (Propane/LPG) 3. Turn the fuel cap vent lever to the “ON” position. 1. Connect the LPG gas hose to the propane fuel source. -
Page 23: Connecting Electrical Loads
Connecting Electrical Loads 4. Pull recoil starter twice. This unit has been pretested and adjusted to handle its full capacity. Before starting the generator, disconnect all loads. Apply load only after generator is running. Voltage is regulated via the engine speed adjusted at the factory for correct output. -
Page 24: Stopping The Engine
3. Turn the cylinder valve to the “OFF” position. NOTICE For periods of high electrical load or momentary fluctuations, the LOW IDLE Switch should be turned OFF. NOTE: LOW IDLE minimizes fuel consumption and noise by adjusting the engine speed (RPM) to the minimum required for the current load. -
Page 25: Changing Fuels
If you wish to use propane, the Starting Dial Switch Do Not Overload Generator should be in the ON position and the Propane Cylinder Overloading a generator in excess of its rated Valve should be OPEN. Closing the Propane Cylinder wattage capacity can result in damage to the Valve OR having an insufficient remaining level of generator and to connected electrical devices. -
Page 26: Parallel Operation
Make certain the cylinder knob is fully closed. from one generator discolors or melt the plastic shell on other generator. 20” Parallel Operation (2 x GXS2300iD Models) WARNING 2. Both generators to be turned off and all electrical loads disconnected before paralleling operation. - Page 27 5. Start one of the generators and wait until the engine speed to stabilize. 6. Start the second generator and wait until the engine speed to stabilize before connecting a load. 7.Plug in the 120 Volt AC, single phase, 60Hz electrical loads into parallel kit receptacles and turn on first load.
-
Page 28: Maintenance And Storage
MAINTENANCE AND STORAGE NOTE: MAINTENANCE SCHEDULE Change oil every month when operating under heavy Regular Maintenance will improve the performance load or high temperatures. Clean the air filter more and extend the life of your generator. Follow often under dirty or dusty operating conditions. maintenance schedule intervals whichever occurs Replace air filter if they cannot be adequately cleaned. -
Page 29: Change Engine Oil
Change Engine Oil NOTICE Change engine oil per maintenance schedule. Always use the specified engine oil. Failure to use the If you are using your generator under extremely dirty specified engine oil can cause accelerated wear or dusty conditions, or in extremely hot weather, and/or shorten the life of the engine. -
Page 30: Air Filter Maintenance
1. Remove the spark plug cover(C). 2. Remove the spark plug cap (B). 3. Clean any dirt from around base of spark plug. 4. Remove spark plug (A) using provided wrench. 5. Inspect spark plug for damage, and clean with a wire brush before reinstalling. -
Page 31: Cleaning The Spark Arrestor
GENERATOR MAINTENANCE Intake Valve Exhaust Valve Valve Make certain that the generator is kept clean and 0.004~0.006 inch 0.004~0.006 inch Clearance stored properly. Only operate the unit on a flat, level 0.1~0.15 mm 0.1~0.15 mm surface in a clean, dry operating environment. Torque 10-12 N·M 10-12 N·M... -
Page 32: Draining The Float Bowl
Carburetor b-Keep the fuel valve open and drain carburetor Maintenance cover float bowl. 3 - Change the engine oil. 4 - Remove the spark plug. 5 - Pour tablespoon( 5-10cc) of clean engine oil into cylinder. 6 - Pull starter recoil several times to distribute oil in cylinder. -
Page 33: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Engine is running, 1. AC Circuit breaker is open. 1. Check AC load and reset circuit breaker. but no AC output is 2. Fault in generator. 2. Contact customer service or authorized service center. available. -
Page 34: Parts Diagram And Parts List
PARTS DIAGRAM AND PARTS LIST GXS2300iD PARTS DIAGRAM Page 32... -
Page 35: Parts List
Parts List Part Number Description Qty. Part Number Description Qty. 20260-05552-08 Engine assy. 33015-00209-00 Muffler outlet rubber sleeve 20134-00352-00 Wheel 30150-00026-00 Wire mesh retainer ring for hole 34031-00218-00 Wheel axle 33013-00635-00 Air outlet cover plate assy. 30134-00014-00 Round cap nut M6 30111-00088-00 Philips pan hed screw 20249-00594-00... -
Page 36: Circuit Diagram
Circuit Diagram Page 34... -
Page 37: Warranty
Warranty Term related service due to obstructions and other build ups resulting from improper maintenance. A-iPower will provide warranty for any of its products Additional exclusions - this warranty does not cover purchased through any authorized AiPower dealer in wearable parts such as filers, spark plugs, o-rings, North America to the original purchaser and will be batteries etc. - Page 38 Warranty limits and Implications and Consequential Damages A-iPower is not obligated to cover any loss of time, use of product, freight cost, or any other incidental or consequential claim from the use of this product. This warranty is in Lieu of all other warranties, express or implied.
- Page 39 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
- Page 40 A-iPOWER WARRANTY REGISTRATION FORM Register your product by emailing this form to support@a-ipower.com or register on-line at: www.a-ipower.com. Registering your product is important , it provides the following protections: 1. You have record of product purchased 2. Customer Service can Better serve you for Warranty related issues...
- Page 41 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
