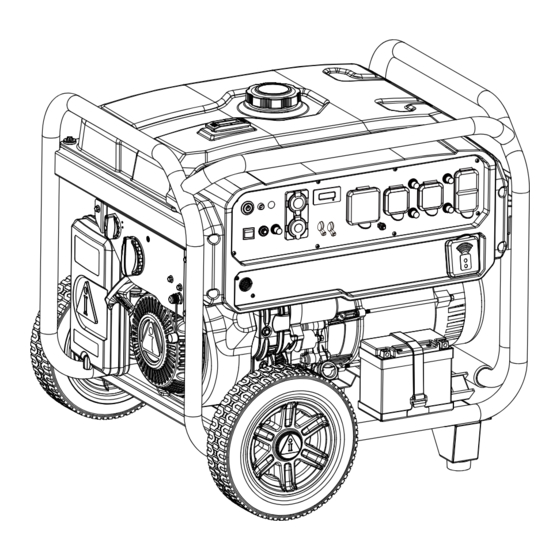

PORTABLE GENERATOR
Owner's Manual
GXS10500RTC
Model# 4591007 REV00
SAVE THIS MANUAL FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading

Related Manuals for iPower GXS10500RTC

Summary of Contents for iPower GXS10500RTC

  • Page 1 PORTABLE GENERATOR Owner’s Manual GXS10500RTC DO NOT RETURN TO STORE! CALL US FIRST 855-888-3598 FOR SUPPORT Model# 4591007 REV00 Model: Serial: Date Purchased: SAVE THIS MANUAL FOR FUTURE REFERENCE P/N: 32082-00000-00...

  • Page 2: Table Of Contents

    Table of Contents Introduction..........1 Connecting Electrical Loads....23 Safety............1 Stopping the Engine (Generator)....23 General Safety Precautions....2 Low Oil Shutdown........24 Unpacking the Generator.......8 Do Not Overload Generator....24 Parts Included........8 Changing Fuels........25 Assembly..........8 Maintenance And Storage....27 Install the Wheel Kit........8 Maintenance Schedule......27 Install the Support Leg......9 Engine Maintenance......27 Install the Handle assy......9 Engine Oil Level Check.......27...

  • Page 3: Introduction

    Service at 855-888-3598, or which are known to the State of California to cause www.a-ipower.com for starting, operating and cancer and birth defects orother reproductive harm. servicing procedures. The owner is responsible for To minimize exposure, avoid breathing exhaust, and proper maintenance and safe use of the unit.

  • Page 4: General Safety Precautions

    Asphyxiation Electric Shock Fire Hazard Hazard Hazard Hot Surface. Explosion Moving Parts Do Not Touch the Surface. Hazard Hazard Burn Hazard Operator’s Manual Kickback GENERAL SAFETY PRECAUTIONS • Operate this product ONLY outside and at least 20 feet away from windows, doors and vents to Using a generator indoors CAN KILL YOU IN MINUTES.
  • Page 5 CORRECT USAGE Example location to reduce risk of carbon monoxide poisoning • Operate generators outside and at least 20 feet away from any structure with exhaust pointed away from doors and windows. at least 20 feet away from windows, doors and vents INCORRECT USAGE Do not operate in any of the following locations: •...
  • Page 6 • Propane/LPG and Natural Gas(NG) are highly WARNING flammable and explosive. Starter cord kickback (rapid retraction) • LPG and NG are heavier than air and can settle in low will pull hand and arm toward engine places while dissipating. faster than you can let go which could •...
  • Page 7 • Store Fuel in a container approved for gasoline. DANGER • Store any containers containing gasoline or propane/LPG outdoor in a well-ventilated area, away from any combustibles or source of ignition. DANGER Gasoline, gasoline vapor, propane/LPG and NG are highly flammable and explosive. Generator voltage could cause electrical Never use a gasoline container, gasoline tank, shock or burn will result in death or...
  • Page 8 WARNING WARNING Starter and other rotating parts could entangle hands, hair, clothing, or accessories. Keep away from rotating parts, failure to do so could result in Exhaust heat/gases could ignite combustibles, death or serious injury. structures or damage fuel tank causing a fire, •...
  • Page 9 • Shut off generator if: -Electrical output is lost. -Equipment sparks, smokes, or emits flames. -Unit vibrates excessively. WARNING Medical and Life Support Uses. • In case of emergency, call 911 immediately. • NEVER use this product to power life support devices or life support appliances.

  • Page 10: Unpacking The Generator

    UNPACKING THE GENERATOR • Open carton completly. Remove and verify carton content prior to assembly. Your generator ships with following items. • Call our customer service at 855-888-3598 with the unit model and serial number for any missing item. • Record model, serial number, and date of purchase on front cover of this munal for your own record.

  • Page 11: Install The Support Leg

    4 - Secure everything with cotter pin (F), then NOTICE assemble Cap(A) to Wheel(C). Repeat on The generator is equipped with a battery charging opposite side. feauture. Once the engine is running,a small charge will slowly recharge the battery. If you do not plan to use the generator for a long period of time,we recommend to DISCONNECT the battery plugs A and B to protect the battery from losing charge,You may also to use a battery...

  • Page 12: Controls And Features

    CONTROLS AND FEATURES 15 16 1 - Frame 11 - Air Filter 12 - Recoil Starter LPG/NG Selector Switch 13 - Engine Main Fuel Selector Switch 4 - Fuel Cap 14 - LPG/NG Inlet 5 - Control Panel 15 - Battery 6- Remote Holder 16 - Support Leg 7 - Alternator Cover...

  • Page 13: Control Panel Features

    CONTROL PANEL FEATURES DAIMAO DAIMAO 1. Push-Button START/STOP: Push once to automati- 9. 120V AC, 30A Twist Lock outlet, single phase, cally start the engine. Push again to stop the engine. 60Hz Outlet (NEMA L5-30R): This receptacle can provide120 volt output up to 30 amps. 2.

  • Page 14: Specifications

    SPECIFICATIONS GXS10500RTC Model 4591007 10500W Starting Watts (Gas) Running Watts (Gas) 8500W Starting Watts (Propane/LPG) 9600W Running Watts (Propane/LPG) 7700W 8400W Starting Watts (NG) Running Watts (NG) 6800W Rated AC Voltage 120/240V Rated DC Voltage 5/12V Rated Frequency 60HZ Phase...

  • Page 15: Co Watch-Guard

    2-Blinking Yellow Light provides notification that a CO WATCH-GUARD fault has occurred and no longer provides protection. The generator is shutoff automatically and the yellow light will blink for at least five minutes after shutoff. Call A-iPower Customer Service 855-888-3598 for repair.
  • Page 16 sensor is working properly. The CO WATCH-GUARD must only be serviced by qualified technician to restore it to original settings. WARNING DO NOT modify or tamper with the Carbon Monoxide Detecting System (CO WATCH-GUARD). Not following these instructions could result in death or serious injury due to Carbon Monoxide detecting system malfunction. CO WATCH-GUARD will detect the accumulation of carbon monoxide from other fuel burning sources such as engine powered tools used in the area of operation.

  • Page 17: Add Engine Oil

    Add Engine Oil NOTICE We recommend using SAE 10W-30 APISJ oil for We consider the first 5 hours of run time to be the best performance. Other high-quality detergent oils break-in period for the unit. During the break in (APISJ or higher) are acceptable. Do not use special period stay at or below 50% of the running watt additives.

  • Page 18: Add Fuel:propane/Lpg

    • It is important to prevent gum deposits from forming in fuel system parts such as the carburetor, fuel hose or tank during storage. Alcohol-blended fuels (called gasohol, ethanol or methanol) can attract moisture, which leads to separation and formation of acids during storage.

  • Page 19: Add Fuel:ng

    (inlet) on the generator and the NG Source. We recom- The purging process should be done by your mend you use A-ipower Quick Connect Hose Kit for propane gas supplier. Natural Gas (NG)connection (This item is not includ- •...

  • Page 20: Operation At High Altitude

    3.5% for every 1000 feet (305 m) of elevation above sea level. High altitude may cause hard starting, increased fuel consumption and spark plug fouling. To operate at high altitudes A-iPower can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support.

  • Page 21: Operation

    OPERATION Generator Location Surge suppressors come in single- or multi-outlet styles. They’re designed to protect against virtually WARNING all short-duration voltage fluctuations. Make sure you review each warning in order to Before Starting the Generator prevent fire hazard. • Make certain the generator is on a flat, level surface and well-ventilated location.

  • Page 22: Starting The Engine (Generator)

    5. Remote start Starting the Engine (Generator) Turn and hold the REMOTE START switch for 5 Select the Fuel Source (Gasoline) seconds until the engine start. 1. Make the propane tank is fully closed. Fully close the NG Remote cylinder valve. 5.
  • Page 23 5. Turn the LPG / NG selector switch to LPG Select the Fuel Source (Propane/LPG) position. 1. Connect the LPG gas hose to the propane fuel source. 6. Remote start Turn and hold the REMOTE START switch for 5 2. Fully open the Propane/LPG cylinder knob. seconds until the engine start.
  • Page 24 6. Recoil start 3. Connect the fuel supply line to the LPG/NG Move the choke lever to connector. the “START” position. Pull recoil starter slowly until resistance is felt, then pull rapidly. 4. Fully open the NG cylinder valve Move the chock lever to the “RUN”...

  • Page 25: Connecting Electrical Loads

    is running. Voltage is regulated via the engine speed 5. Recoil start adjusted at the factory for correct output. Move the choke lever to Re-adjusting will void warranty. the “START” position. NOTE: When applying a load, do not exceed the maximum wattage rating of the generator when using one or more receptacles.

  • Page 26: Low Oil Shutdown

    DANGER 2. Push STOP on the remote start key fob for 3 seconds. Gasoline, gasoline vapor, propane/LPG and NG are highly flammable and explosive. Push and hold the Fire or explosion can cause severe burns or death. START/STOP button for 3 NOTE: seconds.

  • Page 27: Changing Fuels

    Changing Fuels Gasoline to propane/LPG DANGER 3. Fully open the Propane/LPG cylinder knob. Gasoline, gasoline vapor propane/LPG and NG are highly flammable and explosive. Fire or explosion can cause severe burns or death. DANGER 3. Turn the main fuel selector switch knob to the position.
  • Page 28 3. Turn the main fuel selector switch knob to the 3. Turn the main fuel selector switch knob to the gasoline position. position. 4. Start the engine (generator). See the “Starting the 3. Turn the LPG / NG selector switch to NG Engine (Generator)”...

  • Page 29: Maintenance And Storage

    MAINTENANCE AND STORAGE MAINTENANCE SCHEDULE NOTE: Maintenance should be performed more frequently Regular Maintenance will improve the performance when generator is used in dusty areas. and extend the life of your generator. Follow When generator has exceeded the maximum figures maintenance schedule intervals whichever occurs specified in the table, maintenance should still be first according to use.

  • Page 30: Change Engine Oil

    Recommended Engine Oil Type CAUTION 10W-30 Avoid prolonged or repeated skin contact with used motor oil. 5W-30 10W-40 1. Remove the oil cap (A) and wipe dipstick clean. 5W-30 Full Synthetic 2. Place a container underneath the oil drain plug to °...

  • Page 31: Air Filter Maintenance

    7. Tighten with wrench to compress washer. If spark Battery Replacement plug is new, use 1/2 turn to compress washer WARNING appropriate amount. If reusing old spark plug, use 1/8 to 1/4 turn for proper washer compression. Burn hazard. The battery contains sulfuric acid NOTE: (electrolyte) which is highly corrosive and poisonous.

  • Page 32: Cleaning The Spark Arrestor

    Cleaning the Spark Arrestor GENERATOR MAINTENANCE 1. Allow the engine to cool completely before Make certain that the generator is kept clean and servicing the spark arrestor. stored properly. Only operate the unit on a flat, level 2. Loosen the screw (A) to be able to remove surface in a clean, dry operating environment.
  • Page 33 6 - Pull starter recoil several times to distribute oil in cylinder. 7 - Install spark plug. 8 - Pull recoil slowly until resistance is felt. This close valves so moisture cannot enter engine cylinder. Gently release recoil. 9 - Clean the generator and store in a cool, dry and well ventilated area out of direct sunlight.

  • Page 34: Trouble Shooting

    TROUBLE SHOOTING PROBLEM Engine is running, 1. AC Circuit breaker is open. 1. Check AC load and reset circuit breaker. but no AC output is 2. Fault in generator. 2. Contact customer service or authorized service center. available. 3. Poor connection or defective cord set. 3.

  • Page 35: Parts Diagram And Parts List

    PARTS DIAGRAM AND PARTS LIST GXS10500RTC PARTS DIAGRAM (MACHINE) Page 33...

  • Page 36: Parts List

    Parts List Part Number Description Qty. Part Number Description Qty. 30101-00326-00 Hex flange bolt M5*12 30125-00023-00 Hex flange nut M8 33082-00230-01 Motor tail cover 34030-00034-00 Vibration damping support 20044-00104-00 Voltage regulator 20090-02174-00 Frame assy. 30101-00329-00 Hex flange bolt M5*16 34030-00009-00 Single-head bolt damping seat 30101-00110-00 Hex flange bolt M10*285...
  • Page 37 Parts List Part Number Description Qty. 70002-02338-00 Dust cap 30101-00361-00 Hex flange bolt M8*25 31034-00041-00 30 AMP RV adapter 70009-02736-00 Spark plug wrench 20033-00051-00 Propane/LPG hose with regulator Remote control fob 20196-00137-00 12V DC Battery Charging Cable Page 35...

  • Page 38: Circuit Diagram

    Circuit Diagram Page 36...

  • Page 39: Warranty

    Warranty Term ups resulting from improper maintenance. A-iPower will provide warranty for any of its products Additional exclusions - this warranty does not cover purchased through any authorized AiPower dealer in wearable parts such as filers, spark plugs, o-rings, North America to the original purchaser and will be batteries etc.
  • Page 40 Warranty limits and Implications and Consequential Damages A-iPower is not obligated to cover any loss of time, use of product, freight cost, or any other incidental or consequential claim from the use of this product. This warranty is in Lieu of all other warranties, express or implied.
  • Page 41 Fontana, CA 92337 USA Phone: 855-888-3598 support@a-ipower.com www.a-ipower.com...
